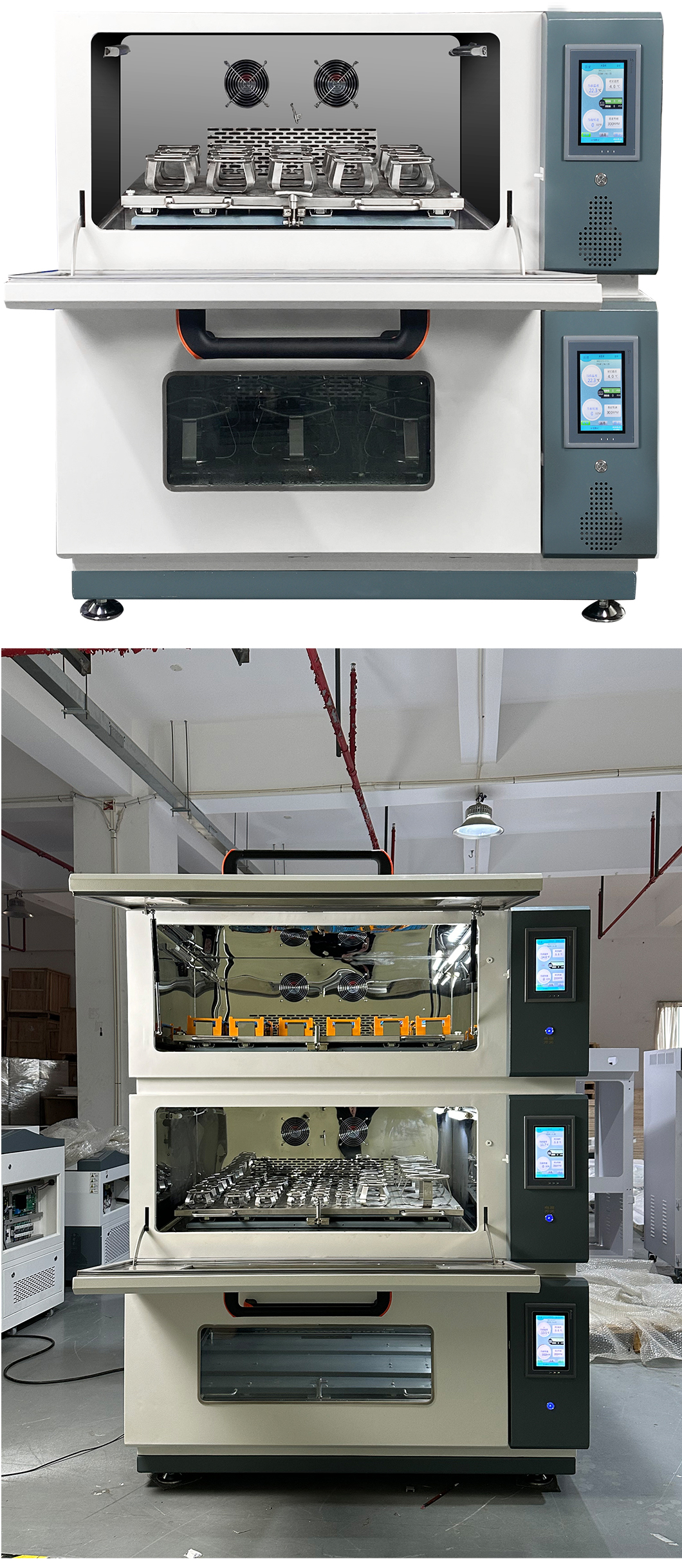

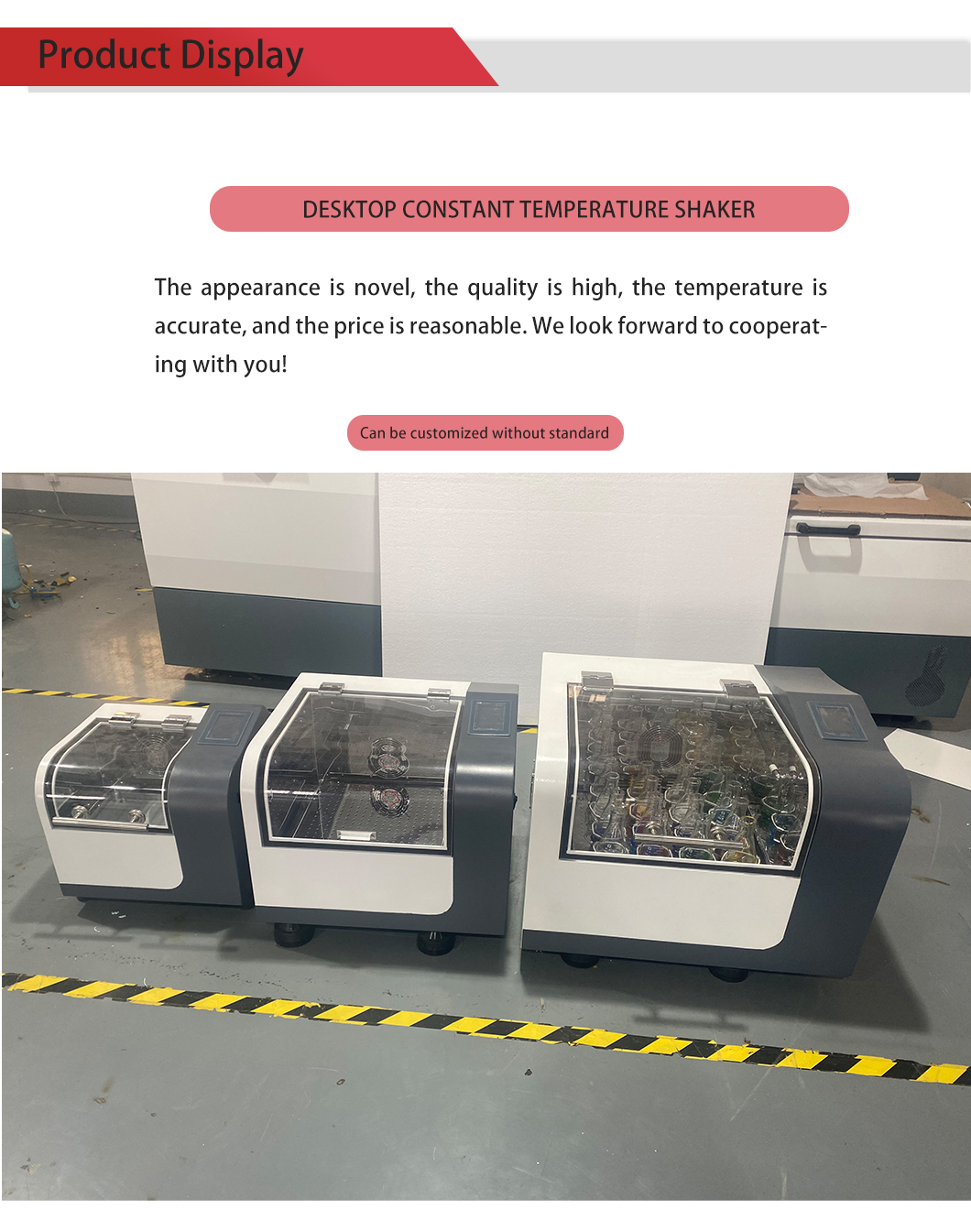

Laboratory LCD Benchtop Constant Temperature Incubation Shaker
The desktop constant temperature shaker is widely used for bacterial culture, fermentation, hybridization and biochemical reactions, as well as enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has extensive and important applications in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.
Product Details
Desktop constant temperature shaker
■ scope of application
The desktop constant temperature shaker is widely used for bacterial culture, fermentation, hybridization and biochemical reactions, as well as enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has extensive and important applications in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.
■ Product features
1. Personalized program design, up to ten segments of programmable program can be preset, to achieve pre-arranged timing operation of temperature, speed and time
2. It integrates constant temperature incubator and oscillator, saves space, occupies less space, has more functions and less investment.

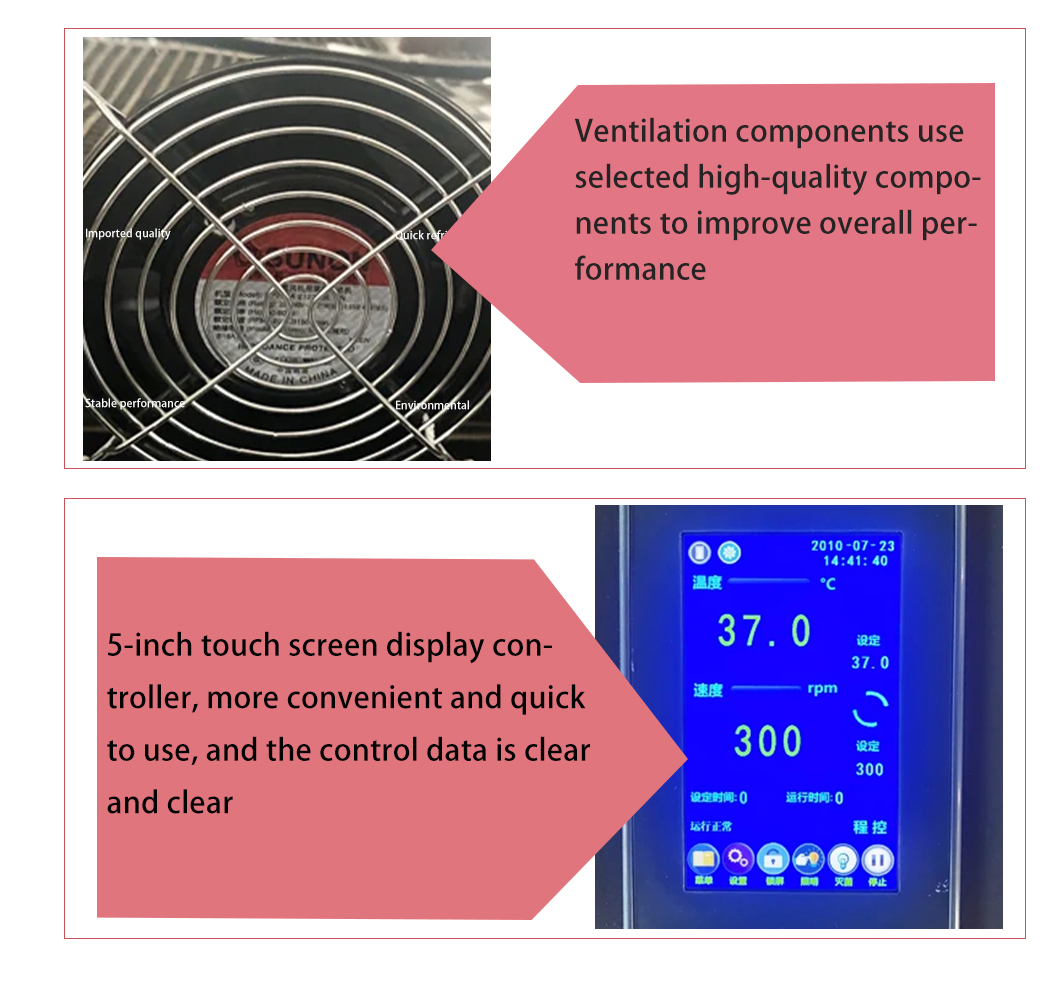

3. Inclined and humanized control panel, 5-inch HD display screen, better visual effect.
4. It has the function of memory of operating parameters, avoids complicated operation and password lock, and eliminates human error.
5. The call recovery function is provided, which is not affected by the power interruption, and the equipment can automatically resume operation according to the original set program
6. DC motor does not need maintenance for long-term continuous operation
7. The whole machine is designed to be silent, the electrostatic spraying box body, the tempered glass super large view window, and the shape is luxurious and beautiful
8. Comprehensive safety protection design is considered to achieve triple safety protection for personnel, samples and equipment
9. Parameter memory, temperature representation correction, speed correction
10. AC induction long life motor design, wide speed control, constant torque, constant speed, no carbon brush, maintenance free

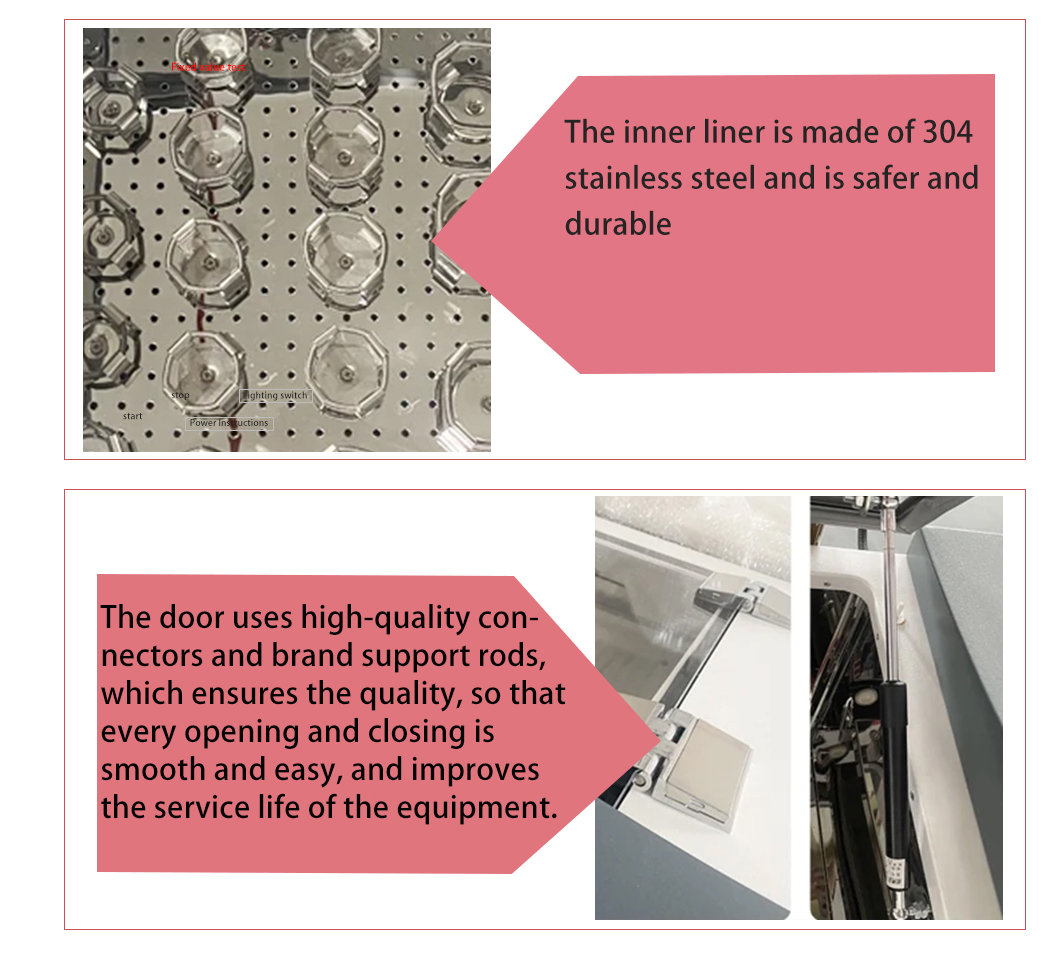

11. Mirror stainless steel lining, stainless steel electro-polished tray, spring, flask clamp
12. Flexible and convenient, a variety of detachable tray selection accessories
13. Standardized wechat mini program to realize real-time monitoring and real-time alarm of equipment failure.

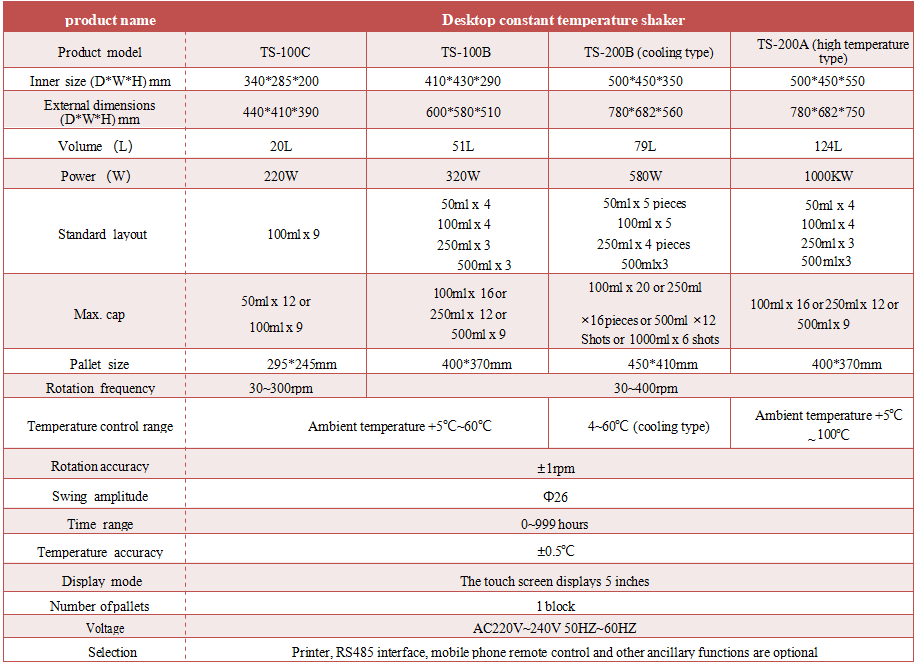

■ technical parameter
|
product name |
Tabletop air bath constant temperature shaker |
|||||||||
|
product model |
TS-100C |
TS-100B |
new product |
TS-200B (cooling type) |
TS-200A (high temperature type) |
|||||
|
gyro-frequency |
30~300rpm |
30~400rpm |
||||||||
|
running accuracy |
±1rpm |
|||||||||
|
Amplitude of swing |
Φ26 |
|||||||||
|
standard layout |
100ml x 9 vials |
50ml x 4 vials 100ml x 4 vials 250ml x 3 tubes 500ml x 3 vials |
50ml x 5 vials 100ml x 5 vials 250ml x 4 tubes 500ml x 3 vials |
50ml x 5 vials 100ml x 5 vials 250ml x 4 tubes 500ml x 3 |
50ml x 4 vials 100ml x 4 vials 250ml x 3 tubes 500ml x 3 vials |
|||||
|
max. cap |
50ml x12 vials or 100ml x 9 vials |
100ml x 16 vials or 250ml x 12 tubes or 500ml x 9 vials |
100ml x 20 or 250ml x 16 or 500ml x 12 |
100ml x 20 or 250ml 16 tubes or 500ml x 12 Or 1000ml x 6 |
100ml x 16 or 250ml x 12 or 500ml x 9 |
|||||
|
Pallet size |
295*245mm |
400*370mm |
450*410mm |
450*410mm |
400*370mm |
|||||
|
Timing range |
0~999 hours |
|||||||||
|
Temperature control range |
Environmental temperature +5℃~60℃ |
4~60℃ (cooling type) |
+5℃~100℃ |
|||||||
|
Temperature accuracy |
±0.5℃ |
|||||||||
|
display mode |
The touch screen is 5 inches |
|||||||||
|
Number of pallets |
1 block |
|||||||||
|
Inner cavity size (D*W*H) mm |
340*285*200 |
410*430*290 |
500*450*350 |
500*450*350 |
500*450*550 |
|||||
|
Size (D*W*H) mm |
440*410*390 |
600*580*510 |
780*682*560 |
780*682*560 |
780*682*750 |
|||||
|
volume (L) |
20L |
51L |
79L |
79L |
124L |
|||||
|
power (W) |
220W |
320W |
580W |
580W |
1000KW |
|||||
|
source |
AC220V~240V 50HZ~60HZ |
|||||||||
|
apolegamy |
Printers, RS485 interface, mobile phone remote control and other ancillary functions are optional |
|||||||||
|
net weight (KG) |
31 |
72 |
100 |
100 |
100 |
|||||
