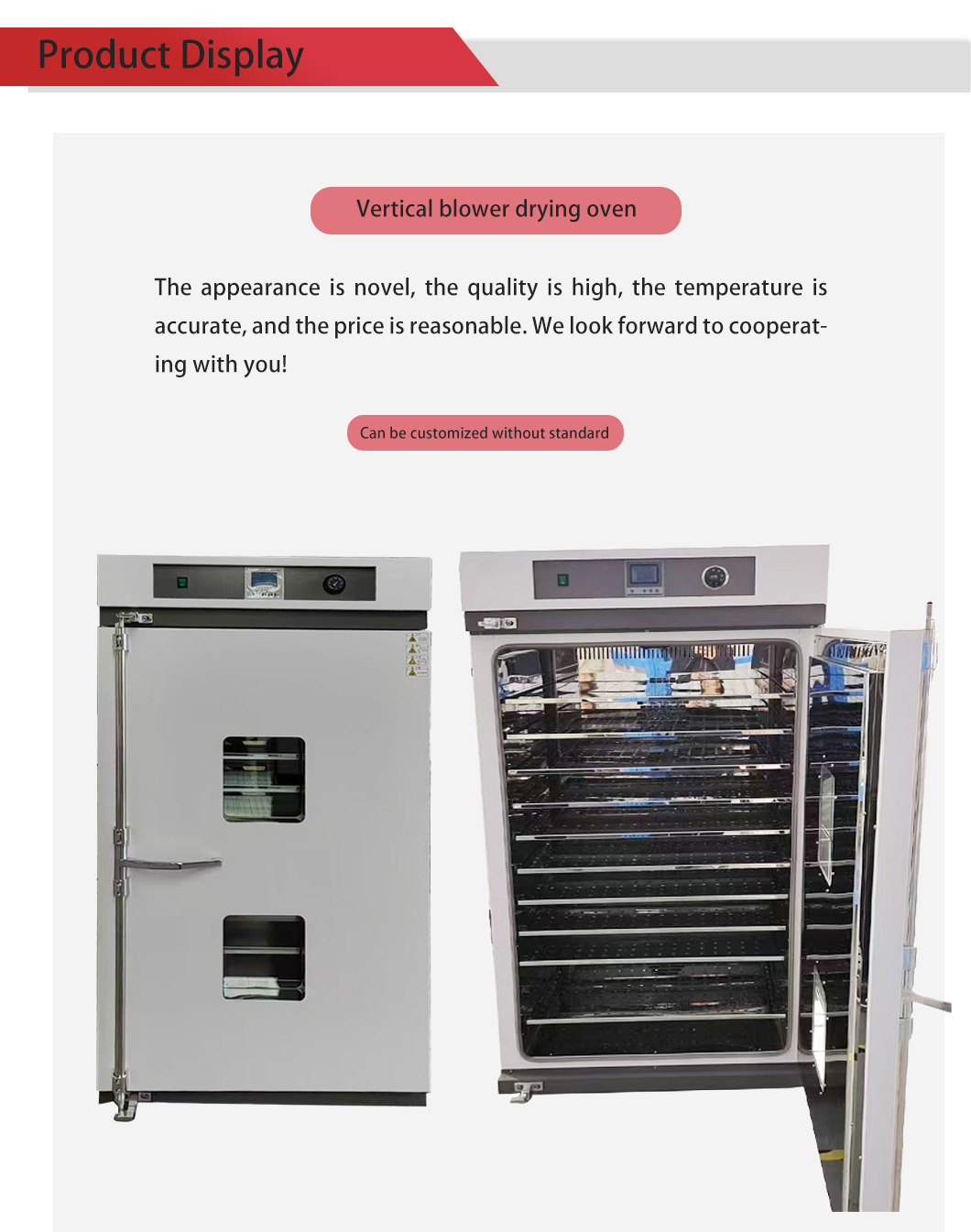

Digital Display Constant Temperature Electric Convection Drying Oven high temperature dry oven
Products produced by large laser cutting and processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research units, etc.
Product Details
Desktop blower drying box, also known as (desktop blower oven), is a product produced by large-scale laser cutting and processing equipment; it is used for drying, baking wax and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
2. Instrument selling points:
1. The inner tank is made of mirror stainless steel.
2. Intelligent controller with good temperature control effect.
3. Digital one - screen display for parameters such as temperature and time.
4. Manufactured by an honest enterprise, the product is durable and all parameters are presented without reservation.
5. After - sales service is guaranteed, and there are after - sales services all over the country.
6. Video teaching is provided to reduce the time users spend reading the instruction manual.
3. Unique advantages of the product:
Partition upgrade: (The partition is made of stainless steel steel plate punched, which can solve the unevenness of the grid when placing items in the past)
Left side of the controller: (The controller is on the left side, which is convenient for operation)
Improved air duct structure: (Redesigned strong convection air duct to significantly improve uniformity)
Door handle upgrade: (Upgradeable door handle, simple, light and durable opening and closing door)
Partition upgrade: (First use a number of partition strips to weld inside the inner liner, put the partition plate and box drawer-type pulling, the I-type drying box is hook-type not to pull)
Appearance upgrade: (The overall performance of the equipment is improved, and the appearance is upgraded with exquisite and atmospheric.)
Fan speed regulation function: (can adjust the wind speed)
Programmable controller: (Standard equipped with 9999 cycles, 50-segment programming)
4. Humanized design:
The streamlined and luxurious overall machine shape is full of aesthetic design concepts. The box body is electrostatically sprayed, and there is a large - angle tempered glass observation window on the door.
It is made by mirror - finished stainless - steel argon arc welding. The outer box is made of high - quality steel plates, with a beautiful and novel appearance. The mirror - finished stainless - steel inner lining makes the instrument corrosion - resistant.

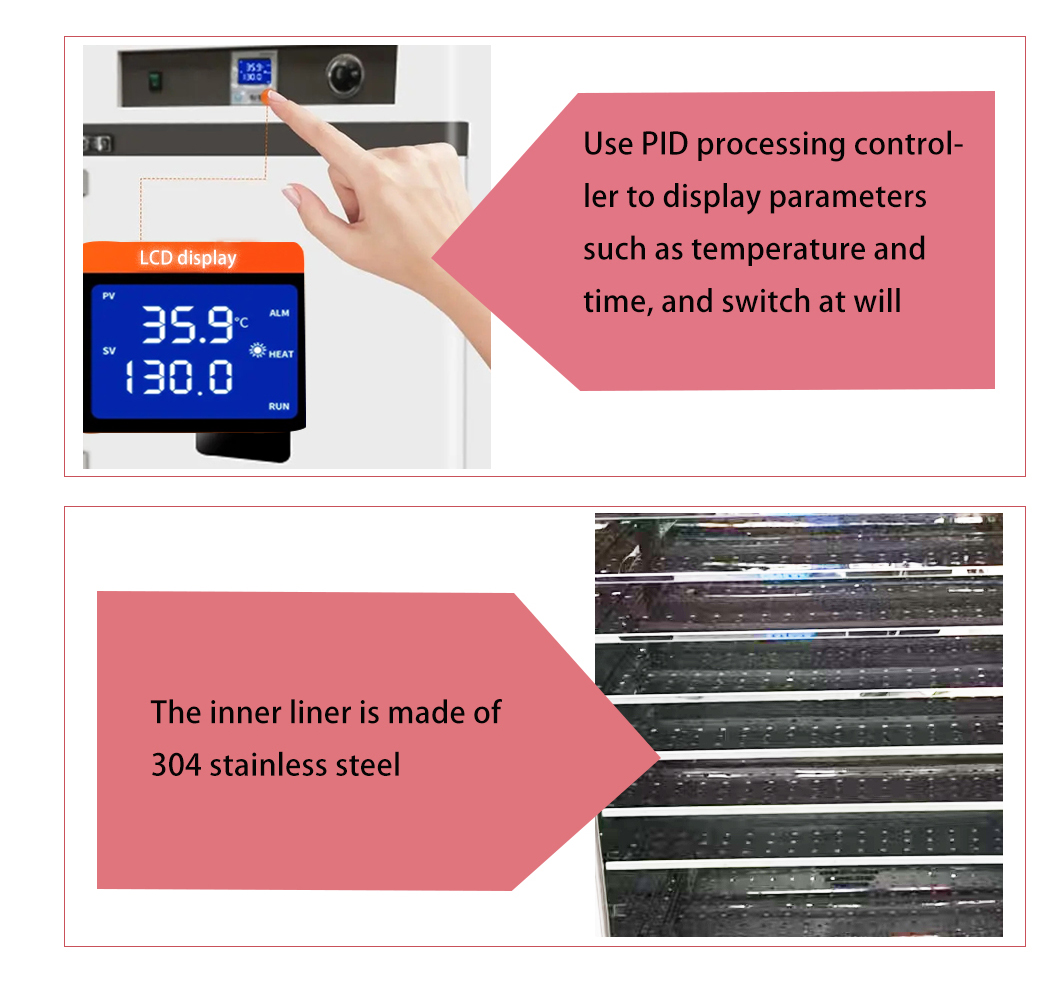

The LCD color display screen shows various set parameters and measured parameters.
The new - type synthetic silicon sealing strip can operate continuously at high temperatures, has a long service life, and is easy to replace.
The hot - air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct, improving the temperature uniformity in the working chamber.
The loading brackets in the box can be adjusted freely.
5. Introduction to the control system:
Adopt a microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display. It has a timing function, and the temperature control is stable and reliable.
The upgraded microcomputer chip with audible and visual alarm and environmental scanning has a stable data processing function.
Functions such as over-temperature alarm, timed shutdown, power recovery, parameter encryption, and temperature correction are available.
It has a power-off recovery function. After the external power supply suddenly fails and then resumes, the equipment can automatically resume operation according to the original set program.
6. Safety functions:
Considerate safety protection design to achieve triple safety protection for personnel, samples and equipment.
Safety functions: sensor failure alarm, over-temperature alarm, separate overshoot preventer, separate over-temperature protector, over-current trip protection, etc.
7.technical parameter
|
product name |
Vertical blower drying chamber |
|||
|
product model |
DHG-9035AE(40L) 101-A0 |
DHG-9075AE(70L) 101-A1 |
DHG-9145AE(140L) 101-A2 |
DHG-9245AE(240L) 101-A3 |
|
Inner size (D*W*H) mm |
300*350*400 |
350*450*500 |
450*550*600 |
530*600*750 |
|
External Size (D*W*H) mm |
560*485*810 |
610*585*910 |
705*690*1010 |
785*735*1160 |
|
power (W) |
800W |
1400W |
2000W |
2500W |
|
volume (L) |
40L |
70L |
140L |
240L |
|
net weight (kg) |
40kg |
50kg |
68kg |
75kg |
|
rough weight (kg) |
51kg |
65kg |
80kg |
110kg |
|
temperature range |
Room temperature +10~300℃ |
|||
|
temperature resolution |
0.1℃ |
|||
|
temperature fluctuation |
≤±1℃ |
|||
|
temperature uniformity |
≤±2.5℃% (at the highest temperature) |
|||
|
Timing range |
0~9999 hours |
|||
|
display mode |
LED digital display |
|||
|
observation window |
Observation window of tempered glass on the door |
|||
|
Carrying frame (block) |
2 |
|||
|
supply voltage |
AC220V±10% 50HZ~60HZ |
|||
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|||
|
product name |
Vertical blower drying chamber 2 |
|
|
product model |
DHG-9425AE(420L) |
DHG-9625AE(625L) |
|
Inner size (D*W*H) mm |
520*650*1250 |
760*660*1250 |
|
External Size (D*W*H) mm |
830*810*1680 |
893*873*1680 |
|
power (W) |
4500W |
6000W |
|
volume (L) |
420L |
625L |
|
Net weight (kg) (approx.) |
160kg |
195kg |
|
Gross weight (kg) (approx.) |
210kg |
255kg |
|
temperature range |
Room temperature +10~300℃ |
|
|
temperature resolution |
0.1℃ |
|
|
temperature fluctuation |
≤±1℃ |
|
|
Timing range |
0~9999 hours |
|
|
Carrying tray (block) |
3 |
|
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|
|
supply voltage |
AC220V±10% 50HZ~60HZ |
|
