Refractory brick resistance furnace 1200℃ Muffle furnace

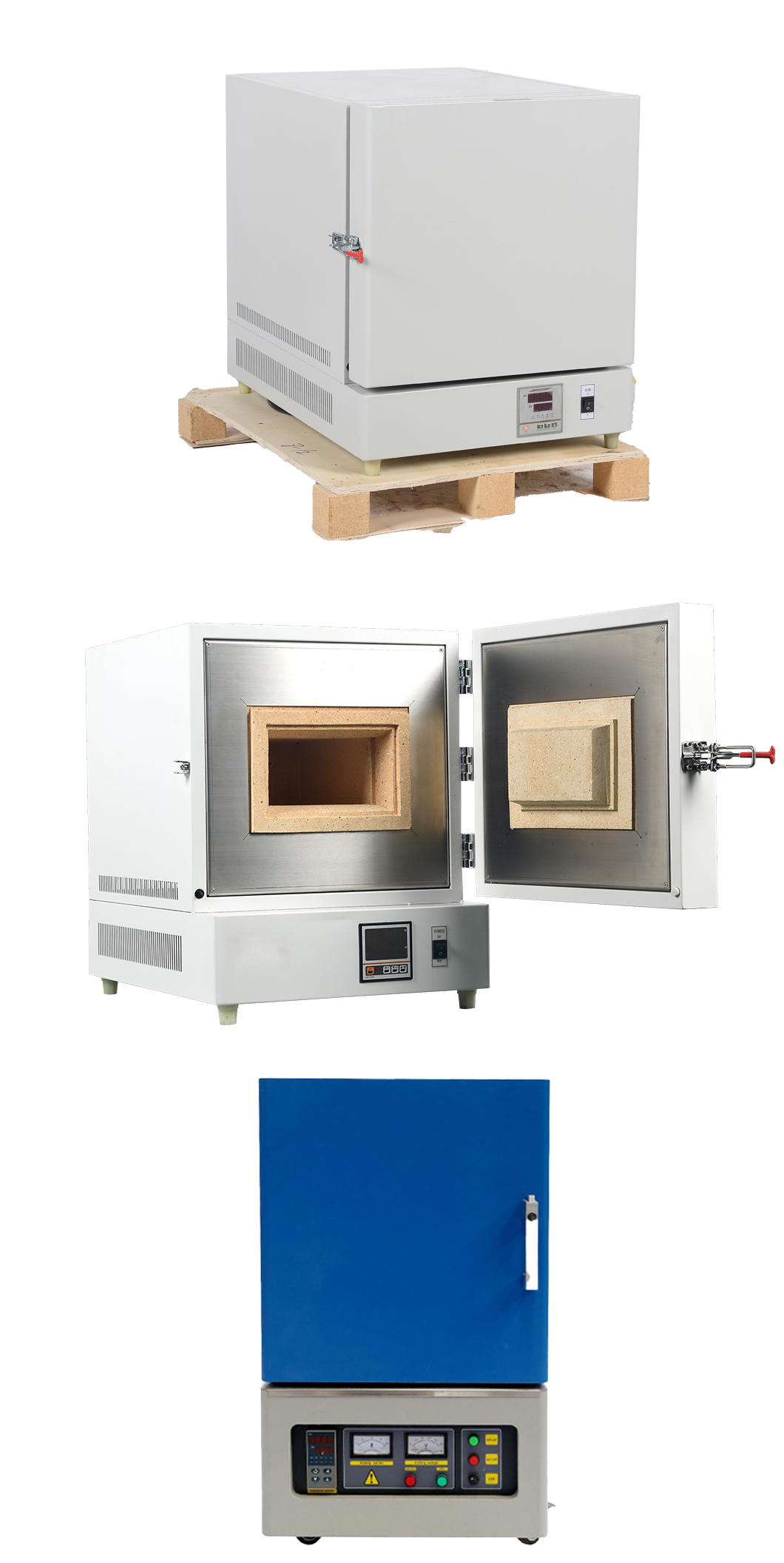

Refractory brick muffle furnace, also known as (box resistance furnace), is a periodic operation electric furnace, can be used for chemical analysis, physical measurement and general small steel parts heat treatment heating in the laboratory of industrial and mining enterprises, scientific research and other units.
Product Details

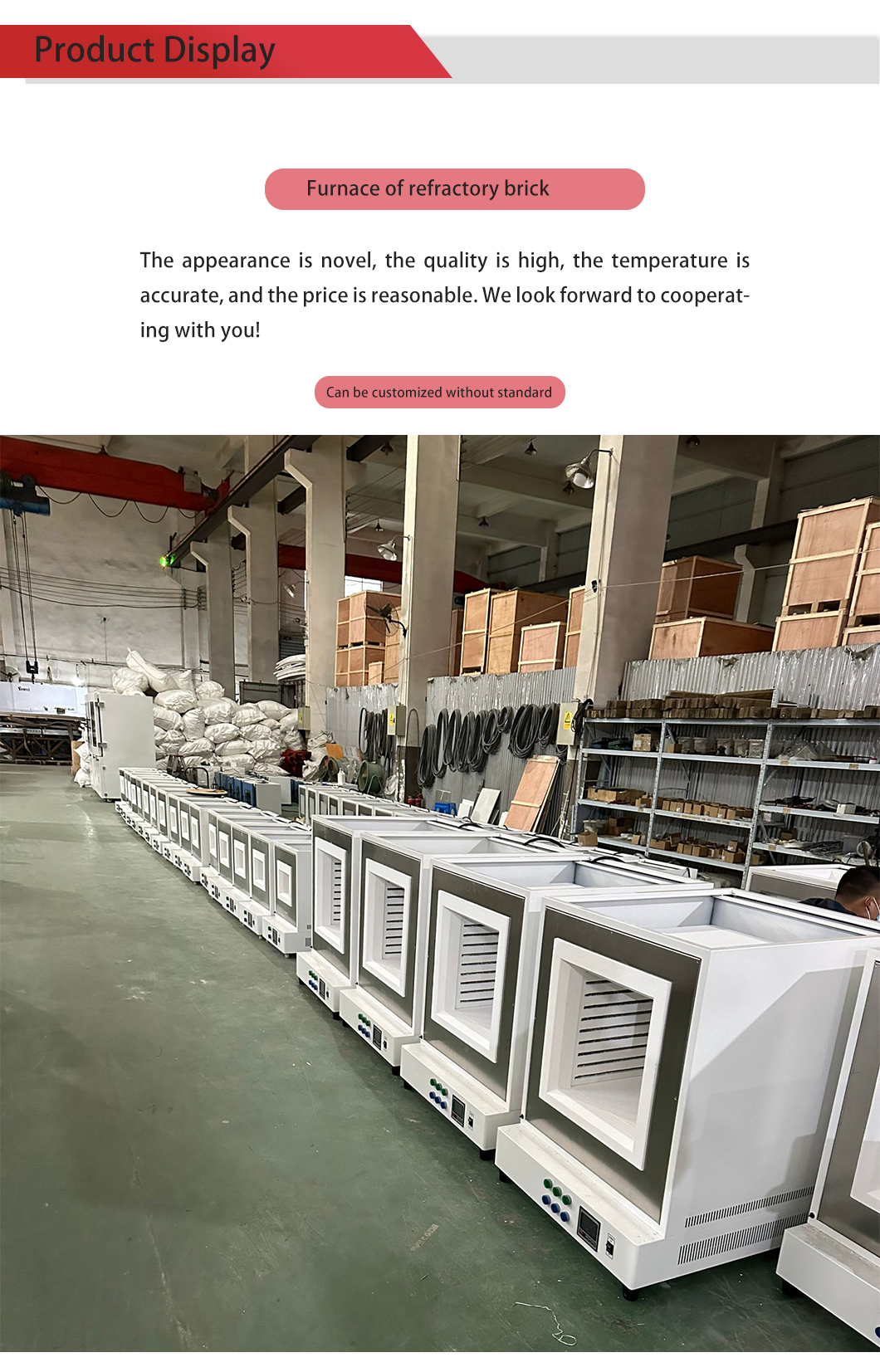

Furnace of refractory brick 1000℃
■ scope of application
Refractory brick muffle furnace, also known as (box resistance furnace), is a periodic operation electric furnace, can be used for chemical analysis, physical measurement and general small steel parts heat treatment heating in the laboratory of industrial and mining enterprises, scientific research and other units.
■ Product features
1. The streamlined luxury whole machine with aesthetic design concept and electrostatic spraying box body
2. The furnace body is made of ceramic fiber material, which has the characteristics of good thermal
insulation and light weight,The insulation layer is made of ceramic fiber cotton insulation, which greatly
improves the heating rate and reduces the heat consumption,
Good insulation effect, low shell temperature.

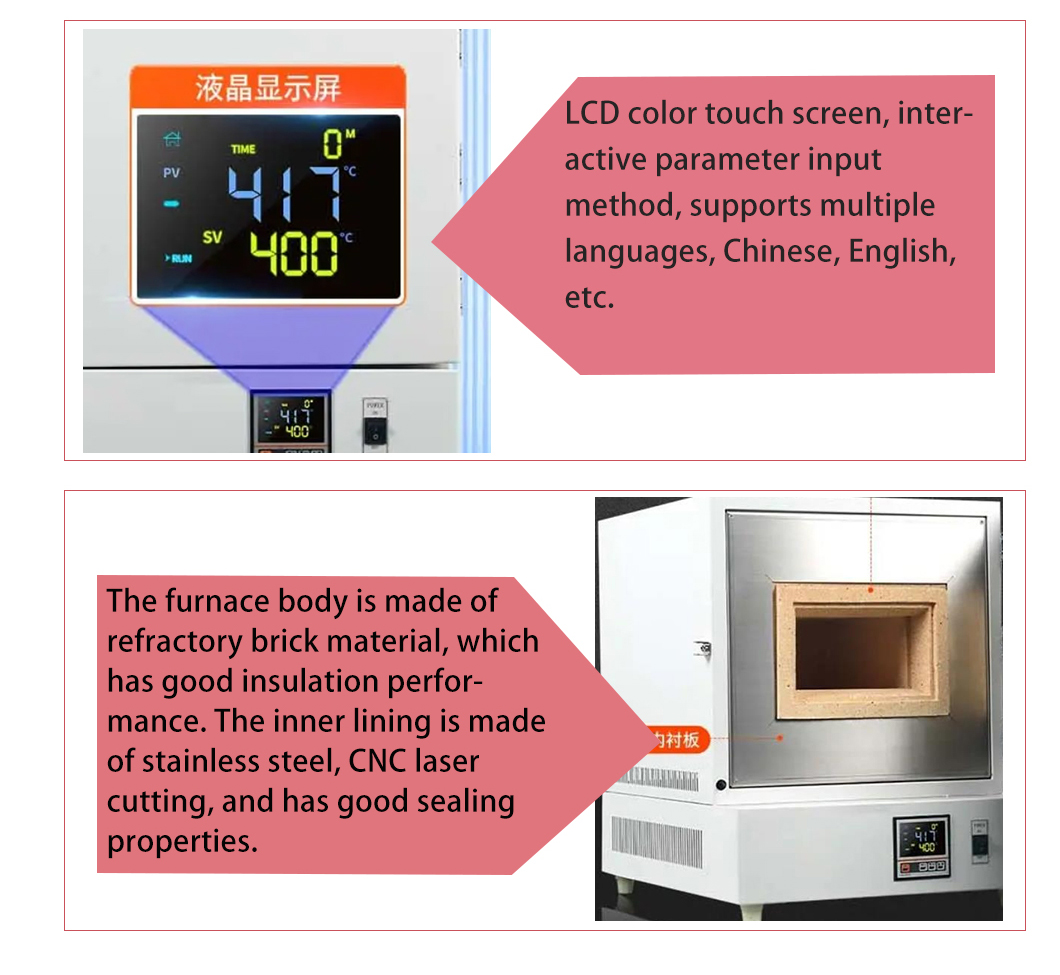

3. L E D Large LCD screen displays the set parameters and measured parameters
4. The ceramic fiber muffle furnace has uniform heating temperature, fast heating speed and good energy saving performance,
No dust and no slag will not affect the effect of the test.
5. The microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display is adopted, which has a timing function and can control the temperature stably and reliably.
6. The upgraded sound and light alarm environment scanning microcomputer chip has the function of stable data processing
7. Overtemperature alarm, timed shutdown, power recovery, parameter encryption, temperature correction and other functions.
8. It has the function of power failure recovery. After the external power supply is suddenly lost and then comes back, the equipment can automatically resume operation according to the original set program
9. Comprehensive safety protection design is considered to achieve triple safety protection for personnel, samples and equipment
10. Safety functions: sensor fault alarm, over temperature alarm, separate overrise preventer, separate over temperature protector, over current tripping protection, etc

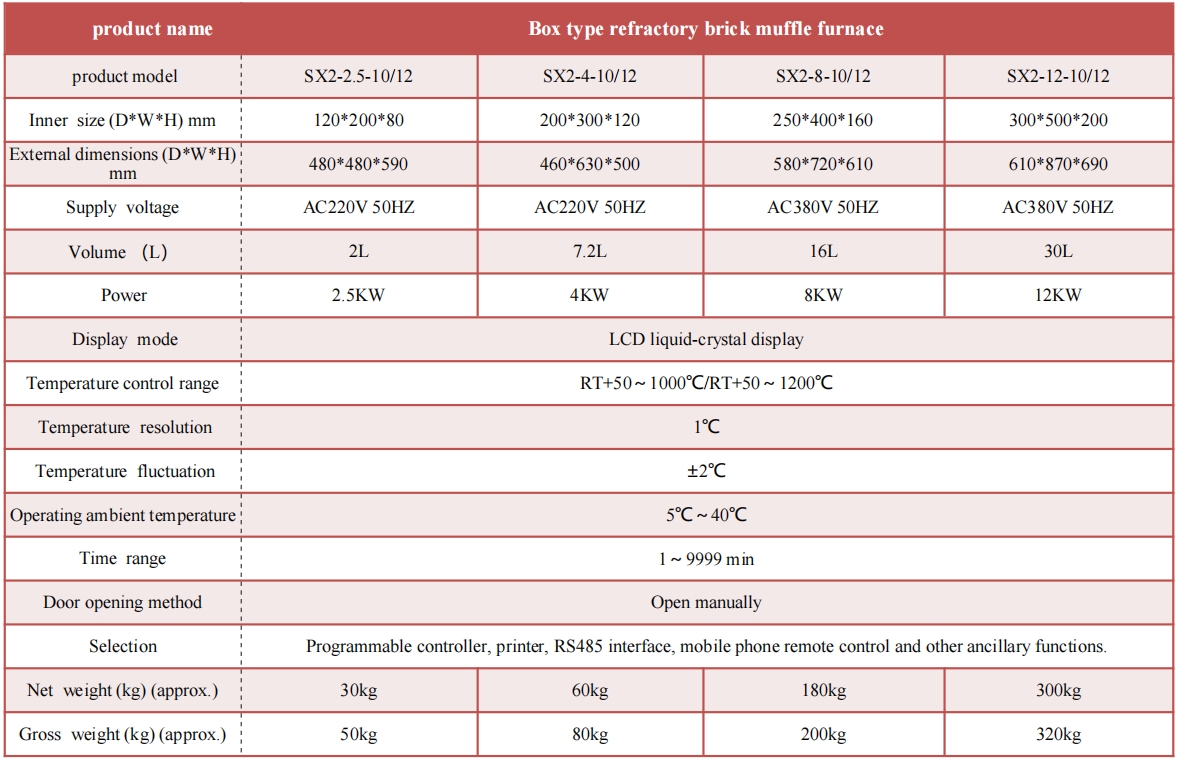

■ technical parameter
|
product name |
Furnace of refractory brick 1000℃ |
|||
|
product model |
SX2-2.5-10 |
SX2-4-10 |
SX2-8-10 |
SX2-12-10 |
|
Inner size (D*W*H) mm |
120*200*80 |
200*300*120 |
250*400*160 |
300*500*200 |
|
External Size (D*W*H) mm |
480*480*590 |
460*630*500 |
580*720*610 |
610*870*690 |
|
supply voltage |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC380V 50HZ |
|
volume (L) |
2L |
7.2L |
16L |
30L |
|
interiorinput power |
2500W |
4000W |
8000W |
12KW |
|
display mode |
LCD characters display |
|||
|
Temperature control range |
Room temperature +50~1000℃ |
|||
|
temperature resolution |
1℃ |
|||
|
temperature fluctuation |
±2℃ |
|||
|
operating ambient temperature |
5℃～40℃ |
|||
|
Timing range |
1～9999 min |
|||
|
Door opening method |
Open the door manually |
|||
|
apolegamy |
Programmable controller, printer, RS485 interface, mobile phone remote control and other ancillary functions. |
|||
|
Net weight (kg) (approx.) |
30kg |
60kg |
180kg |
300kg |
|
Gross weight (kg) (approx.) |
50kg |
80kg |
200kg |
320kg |
|
product name |
Refractory brick resistance furnace 1200℃ |
|||
|
product model |
SX2-2.5-12 |
SX2-4-12 |
SX2-8-12 |
SX2-12-12 |
|
Inner size (D*W*H) mm |
120*200*80 |
200*300*120 |
250*400*160 |
300*500*200 |
|
External Size (D*W*H) mm |
480*480*590 |
460*630*500 |
580*720*610 |
610*870*690 |
|
supply voltage |
AC220V 50HZ |
AC220V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
|
volume (L) |
2L |
7.2L |
16L |
30L |
|
interiorinput power |
2500W |
4000W |
8000W |
12KW |
|
display mode |
LCD characters display |
|||
|
Temperature control range |
Room temperature +50~1200℃ |
|||
|
temperature resolution |
1℃ |
|||
|
temperature fluctuation |
±2℃ |
|||
|
operating ambient temperature |
5℃～40℃ |
|||
|
Timing range |
1～9999 min |
|||
|
Door opening method |
Open the door manually |
|||
|
apolegamy |
Programmable controller, printer, RS485 interface, mobile phone remote control and other ancillary functions. |
|||
|
Net weight (kg) (approx.) |
30kg |
60kg |
180kg |
300kg |
|
Gross weight (kg) (approx.) |
50kg |
80kg |
200kg |
320kg |
