Vacuum Oven Medicine/Fruit/Vegetable/Herb/Fish/Spice/ Flower/Garlic Industrial Vacuum Drying Oven

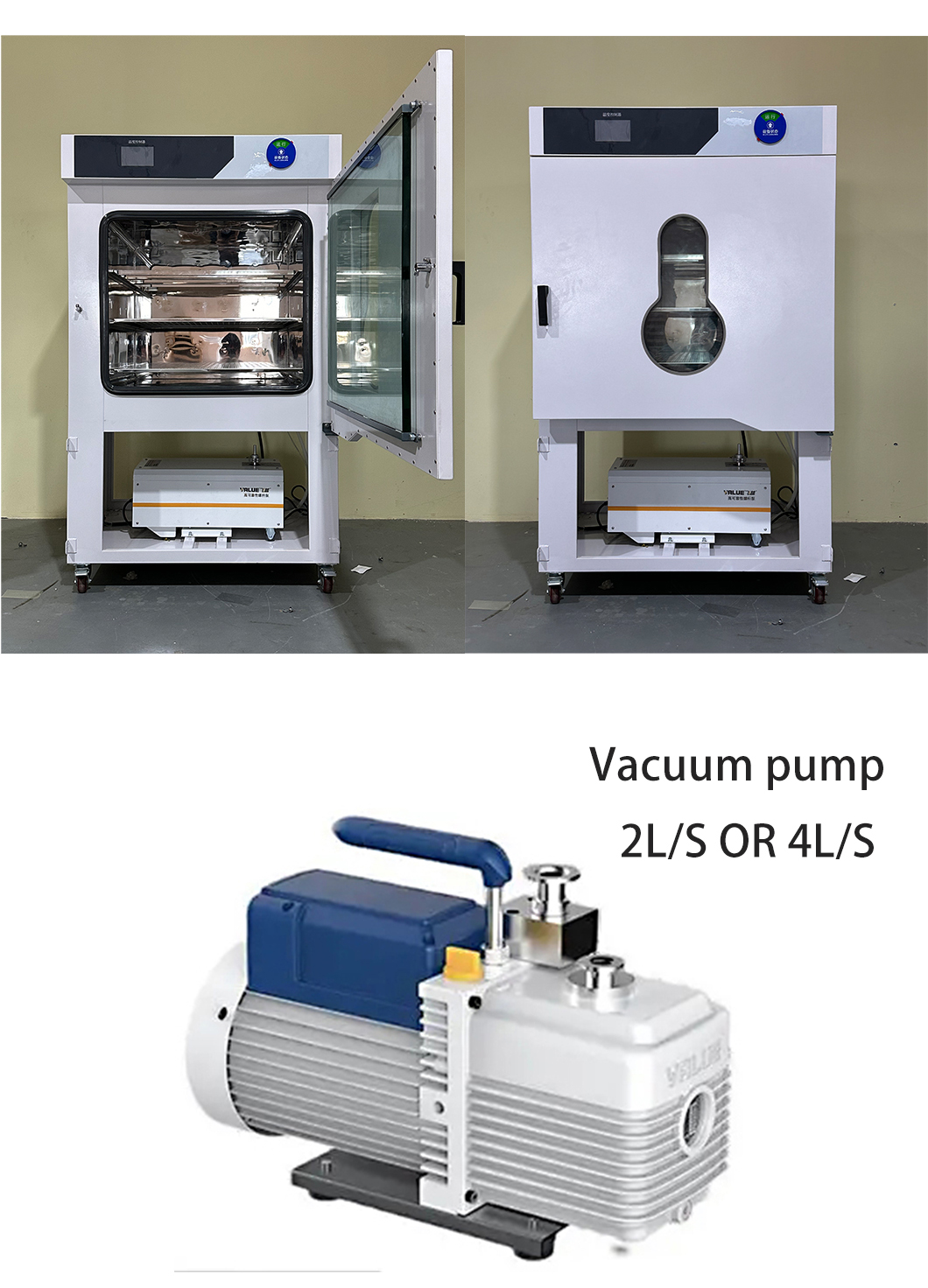

Specifically designed for defoaming items such as glue and silica gel, preventing cosmetics from leaking, and drying heat-sensitive, easily decomposable and oxidizable substances. It can fill inert gas inside, and can quickly dry even some items with complex compositions.
Product Details
The vacuum drying oven, also known as a vacuum oven, incorporates the company's years of successful experience in box heating. Through continuous painstaking research, it has creatively overcome the "bottleneck" in the heat conduction process - finding a perfect heat conduction method.
The vacuum drying oven is specifically designed for drying heat-sensitive, easily decomposable, and easily oxidizable substances. It can be filled with inert gases, and it can even rapidly dry some items with complex compositions.
2. Instrument selling points:
1. The inner tank is made of mirror stainless steel.
2. Intelligent controller with good temperature control effect.
3. Digital one - screen display for parameters such as temperature and time.
4. Manufactured by an honest enterprise, the product is durable and all parameters are presented without reservation.
5. After - sales service is guaranteed, and there are after - sales services all over the country.
6. Video teaching is provided to reduce the time users spend reading the instruction manual.
3. Unique advantages of the product:
Partition upgrade: (The partition is made of stainless steel steel plate punched, which can solve the unevenness of the grid when placing items in the past)
Left side of the controller: (The controller is on the left side, which is convenient for operation)
Improved air duct structure: (Redesigned strong convection air duct to significantly improve uniformity)
Door handle upgrade: (Upgradeable door handle, simple, light and durable opening and closing door)
Partition upgrade: (First use a number of partition strips to weld inside the inner liner, put the partition plate and box drawer-type pulling, the I-type drying box is hook-type not to pull)
Appearance upgrade: (The overall performance of the equipment is improved, and the appearance is upgraded with exquisite and atmospheric.)
Fan speed regulation function: (can adjust the wind speed)
Programmable controller: (Standard equipped with 9999 cycles, 50-segment programming)
4. Humanized design:
The streamlined and luxurious overall machine shape is full of aesthetic design concepts. The box body is electrostatically sprayed, and there is a large - angle tempered glass observation window on the door.
It is made by mirror - finished stainless - steel argon arc welding. The outer box is made of high - quality steel plates, with a beautiful and novel appearance. The mirror - finished stainless - steel inner lining makes the instrument corrosion - resistant.

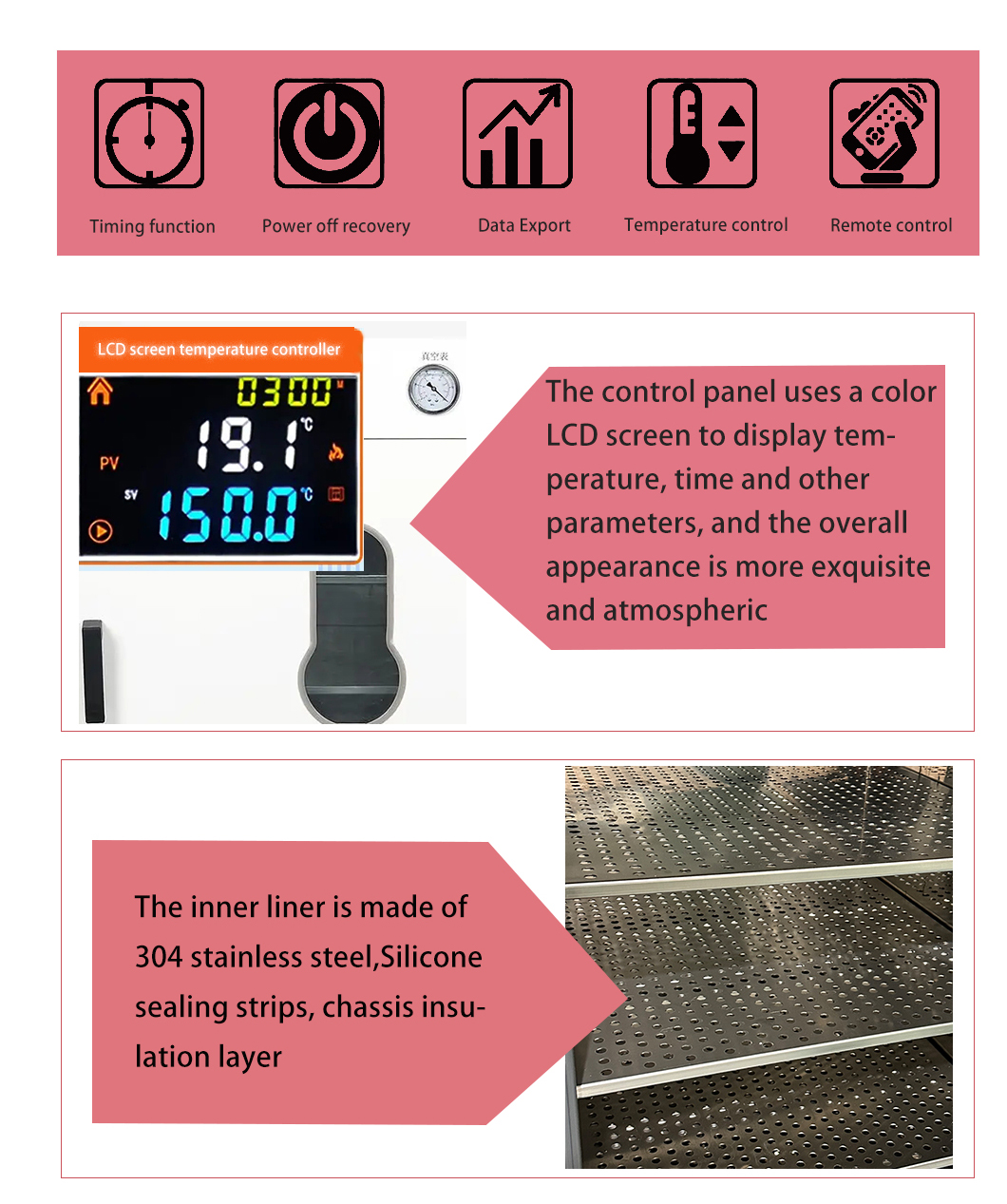

The LCD color display screen shows various set parameters and measured parameters.
The new - type synthetic silicon sealing strip can operate continuously at high temperatures, has a long service life, and is easy to replace.
The hot - air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct, improving the temperature uniformity in the working chamber.
The loading brackets in the box can be adjusted freely.
5. Introduction to the control system:
Adopt a microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display. It has a timing function, and the temperature control is stable and reliable.
The upgraded microcomputer chip with audible and visual alarm and environmental scanning has a stable data processing function.
Functions such as over-temperature alarm, timed shutdown, power recovery, parameter encryption, and temperature correction are available.
It has a power-off recovery function. After the external power supply suddenly fails and then resumes, the equipment can automatically resume operation according to the original set program.
6. Safety functions:
Considerate safety protection design to achieve triple safety protection for personnel, samples and equipment.
Safety functions: sensor failure alarm, over-temperature alarm, separate overshoot preventer, separate over-temperature protector, over-current trip protection, etc.
7.technical parameter
|
product name |
Fully automatic vacuum drying chamber |
|||
|
product model |
DZF-6020C（24L） |
DZF-6030C(30L) |
DZF-6050C(50L) |
DZF-6090C（90L） |
|
Inner size (D*W*H) mm |
300*300*275 |
320*320*300 |
370*415*345 |
450*450*450 |
|
External Size (D*W*H) mm |
480*470*1135 |
500*630*1100 |
550*590*1210 |
610*630*1370 |
|
power (W) |
600W |
900W |
1500W |
2300W |
|
volume (L) |
24L |
30L |
50L |
90L |
|
supply voltage |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
|
temperature range |
Room temperature +10~250℃ (commonly recommended below 200℃) |
|||
|
temperature resolution |
0.1℃ |
|||
|
temperature fluctuation |
±1℃ |
|||
|
Timing range |
1 to 9999 (minutes/hour switchable) |
|||
|
Carrying frame (block) |
2(block) |
|||
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|||
|
Net weight (kg) (approx.) |
90kg |
100kg |
115kg |
160kg |
|
Gross weight (kg) (approx.) |
104kg |
115kg |
135kg |
180kg |
|
product name |
Fully automatic vacuum drying chamber |
|||
|
product model |
DZF-6210C(210L) |
DZF-6250C(250L) |
DZF-6350C(350L) |
DZF-6500C(500L) |
|
Inner size (D*W*H) mm |
580*560*640 |
600*700*600 |
700*700*700 |
810*630*845 |
|
External Size (D*W*H) mm |
750*730*1560 |
750*880*1520 |
910*1000*1550 |
1020*810*1710 |
|
power (W) |
4000W |
4800W |
5500W |
6000W |
|
volume (L) |
210L |
250L |
350L |
500L |
|
supply voltage |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
|
temperature range |
Room temperature +10~250℃ (commonly recommended below 200℃) |
|||
|
temperature resolution |
0.1℃ |
|||
|
temperature fluctuation |
±1℃ |
|||
|
Timing range |
1 to 9999 (minutes/hour switchable) |
|||
|
Carrying frame (block) |
3(block) |
|||
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|||
|
Net weight (kg) (approx.) |
218kg |
256kg |
300kg |
380kg |
|
Gross weight (kg) (approx.) |
248kg |
280kg |
320kg |
400kg |
