1. Product Introduction

Complying with the global environmental protection trend, fluorine - free is an inevitable development trend for refrigeration equipment in China. The experimental equipment takes the lead with a brand - new fluorine - free design, keeping you always ahead in terms of health. With international - brand compressors and circulating fans, it features high efficiency, low energy consumption, not only promoting energy conservation but also having a long service life. It can reduce noise to a minimum. Compared with traditional low - temperature equipment, the cooling time is reduced by more than 40%.
It is widely used in microbial tissue and cell culture, seed germination, seedling experiments, plant cultivation, as well as the breeding of insects and small animals, etc. It can accurately simulate different environmental and climatic conditions.

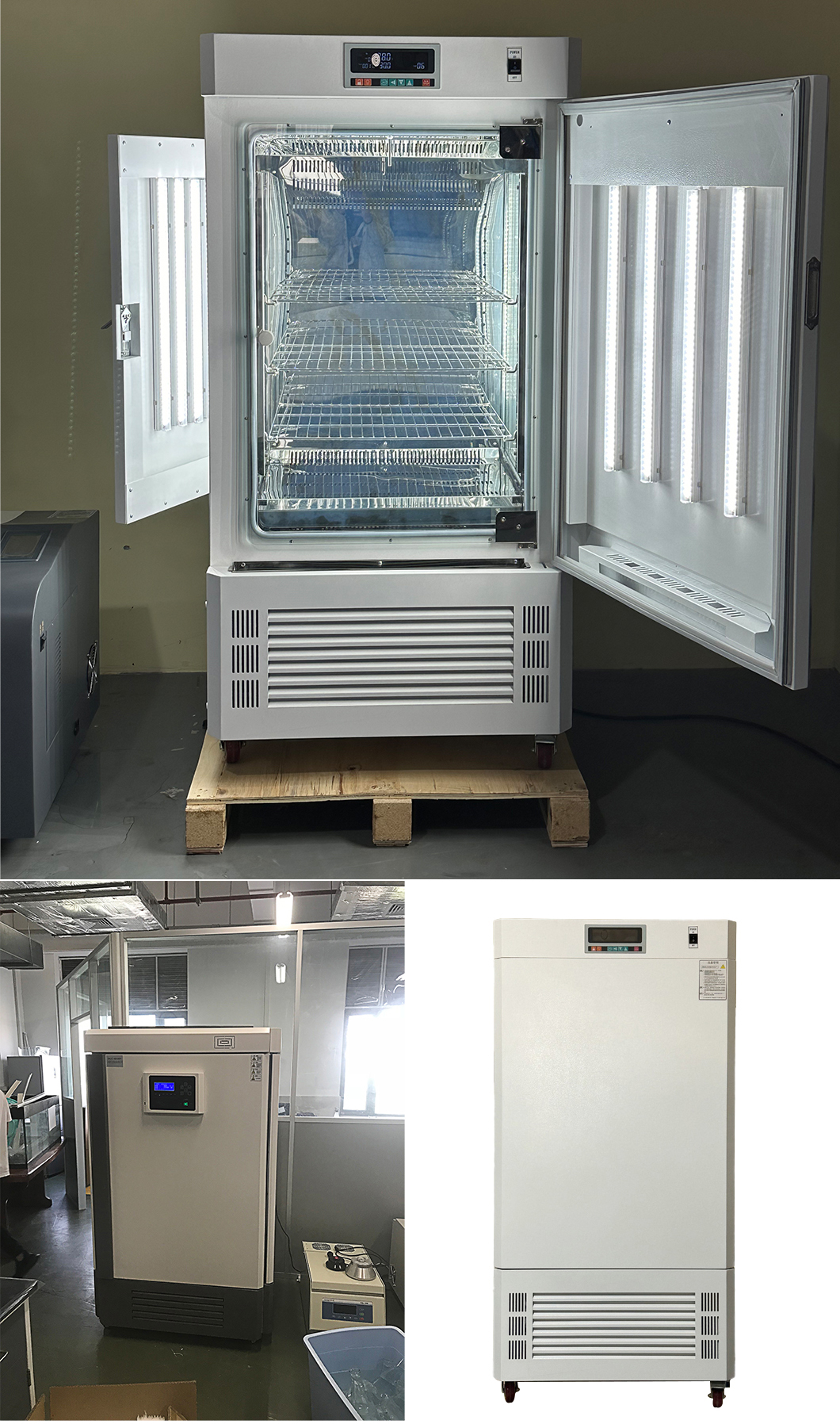

Illumination Incubator
1. The inner tank is made of 304 stainless steel and will never rust.
2. Intelligent controller with good temperature control effect; A large number of products are exported to European countries.
3. LCD one - screen display of parameters such as temperature, illumination level, and time.
4. Manufactured by an honest enterprise, the product is durable and all parameters are presented without reservation.
5. After - sales service is guaranteed, and there are after - sales services across the country (except in towns and townships).
6. Video tutorials are provided to reduce the time users spend reading the instruction manual.
2. Product Features
The streamlined and luxurious overall machine shape is highly aesthetically designed. The box is electrostatically sprayed, and it has a double - door structure.
It is made of mirror - finished stainless steel by argon arc welding. The outside of the box uses high - quality steel plates, with a beautiful and novel shape. The mirror - finished stainless steel inner lining ensures that the instrument will never rust.
The LCD large - screen digital display shows all set parameters and measured parameters.
The high - performance constant temperature function avoids the evaporation and drying of samples.

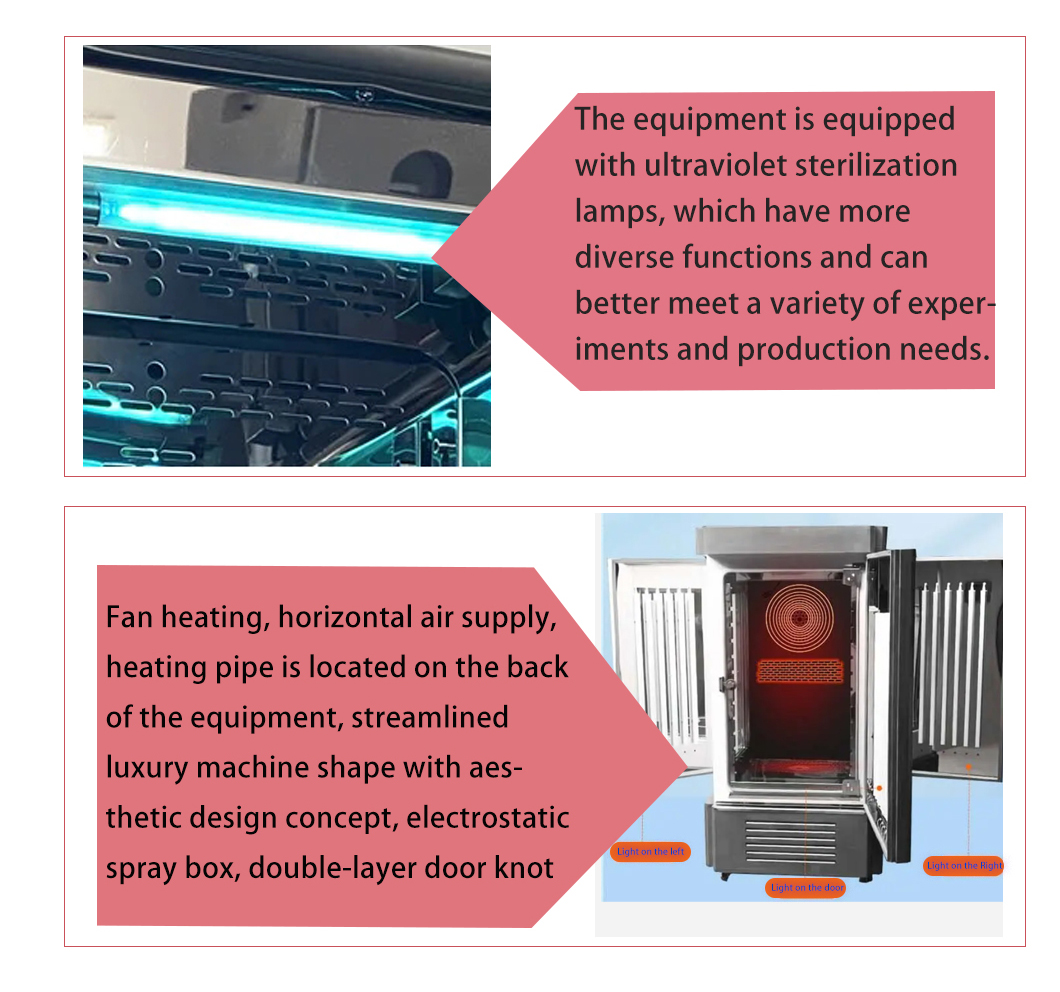

It has a built - in lighting system and ultraviolet germicidal lamp.
The compressor is automatically controlled, and the temperature control range is not affected by room temperature. It can be arbitrarily controlled from 4 to 60 degrees, and the compressor can defrost automatically (many brand devices do not have the automatic defrosting function: if not defrosted, the frost will accumulate thicker and thicker, and eventually, the finned evaporator will be covered with frost, blocking the air duct and causing the cold air not to circulate, thus reducing the refrigeration effect).
It uses international brand compressors and circulating fans, and the unique air duct system structure ensures uniform wind distribution inside the working chamber without blowing onto plant seedlings.
The new synthetic silicon sealing strip can operate continuously at high temperatures, has a long service life, and is easy to replace.
The hot - air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct, improving the temperature uniformity inside the working chamber.
The partition is upgraded (the partition is made of stainless steel plate with punched holes, which can solve the problem of unevenness when placing items on the previous grid).
The partition strip is upgraded: (first, a large number of partition strips are welded inside the inner tank, and when the partition is placed, it can be pulled out like a drawer).
The loading brackets inside the box can be adjusted freely.
3. Introduction to the Control System

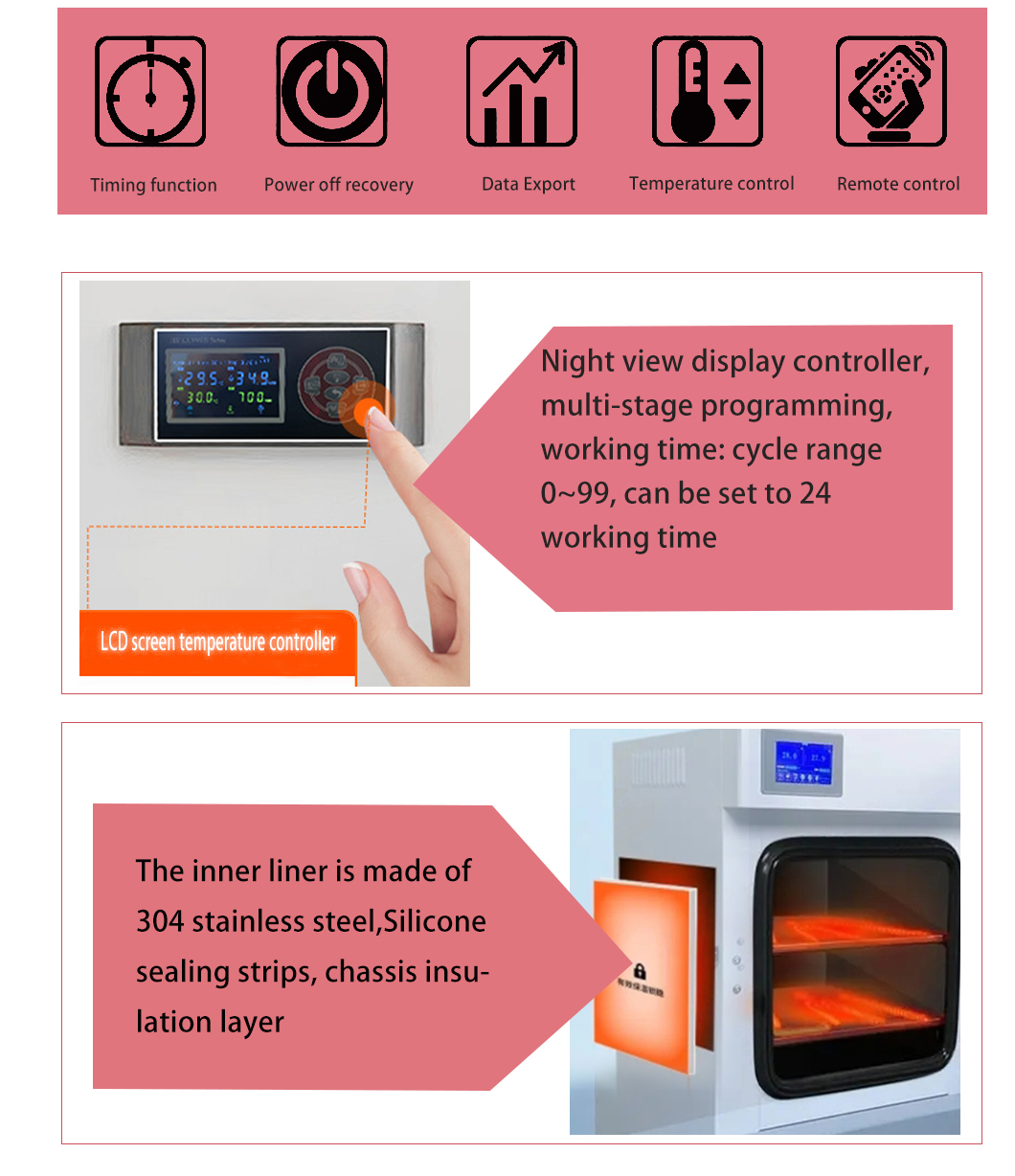

Adopt a liquid crystal display controller with multi-segment programming; it has temperature, illumination, and timing functions, and the temperature control is accurate and reliable.
Working time: The cycle range is 0 - 99, and a maximum of 24 working time segments can be set. The setting range for each segment is 0 - 99 hours; when the cycle is set to 0, it is in continuous working state.
The temperature can be set differently for day and night according to the presence or absence of illumination.
An upgraded sound and light alarm environmental scanning microcomputer chip with more powerful data processing capabilities.
Functions such as over-temperature alarm, timed shutdown, power recovery, parameter encryption, and temperature correction.
It has a compressor start delay function to effectively ensure the service life of the compressor; and it also has an automatic defrosting function.
It has a power-off recovery function. After the external power supply suddenly fails and then resumes, the equipment can automatically resume operation according to the original set program.
4. Safety Protection
Consider the ultimate safety protection design to achieve triple safety protection for personnel, samples, and equipment.
Safety functions: sensor failure alarm, over-temperature alarm, independent overshoot preventer, independent over-temperature protector, over-current trip protection, etc.
5. Specification Parameters

product name

Lighting incubator

product model

MGC-250BP（250L）

MGC-350BP(350L)

MGC-450BP（450L）

MGC-600BP(600L)

MGC-1000BP(1000L)

MGC-1500BP(1500L)

Inner size (D*W*H) mm

510*580*835

550*550*1140

550*700*1140

800*680*1100

1000*800*1200

1200*1000*1200

External Size (D*W*H) mm

740*725*1550

850*830*1850

850*950*1850

1110*840*1800

1315*1045*1880

1515*1245*1880

power (W)

860W

1400W

1650W

1800W

2000W

2200W

rough weight (kg)

270kg

400kg

530kg

1000kg

1230kg

1590kg

supply voltage

AC220V±10%   50HZ~60HZ

temperature range

No light: 4~60℃ with light 10~60℃

temperature resolution

0.1℃

temperature fluctuation

±0.5℃

Humidity range

The BP series is humidity free

intensity of illumination

0-12000LX

0-15000LX

0-20000LX

0-20000LX

0-20000LX

0-20000LX

Light level

Level 6 adjustable

Timing range

Each segment is 0-99 hours

Carrying frame (block)

3~4(block)

apolegamy

Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options

volume (L)

250L

350L

450L

800L

1000L

1500L

net weight (kg)

250kg

380kg

510kg

980kg

1200kg

1560kg
