I. Product Introduction
The water - jacketed constant temperature incubator is a product produced by advanced CNC processing equipment. It is used by industrial and mining enterprises, laboratories, scientific research units, etc. for microbiology, seed germination, bacteria, dialysate, cell culture, etc.

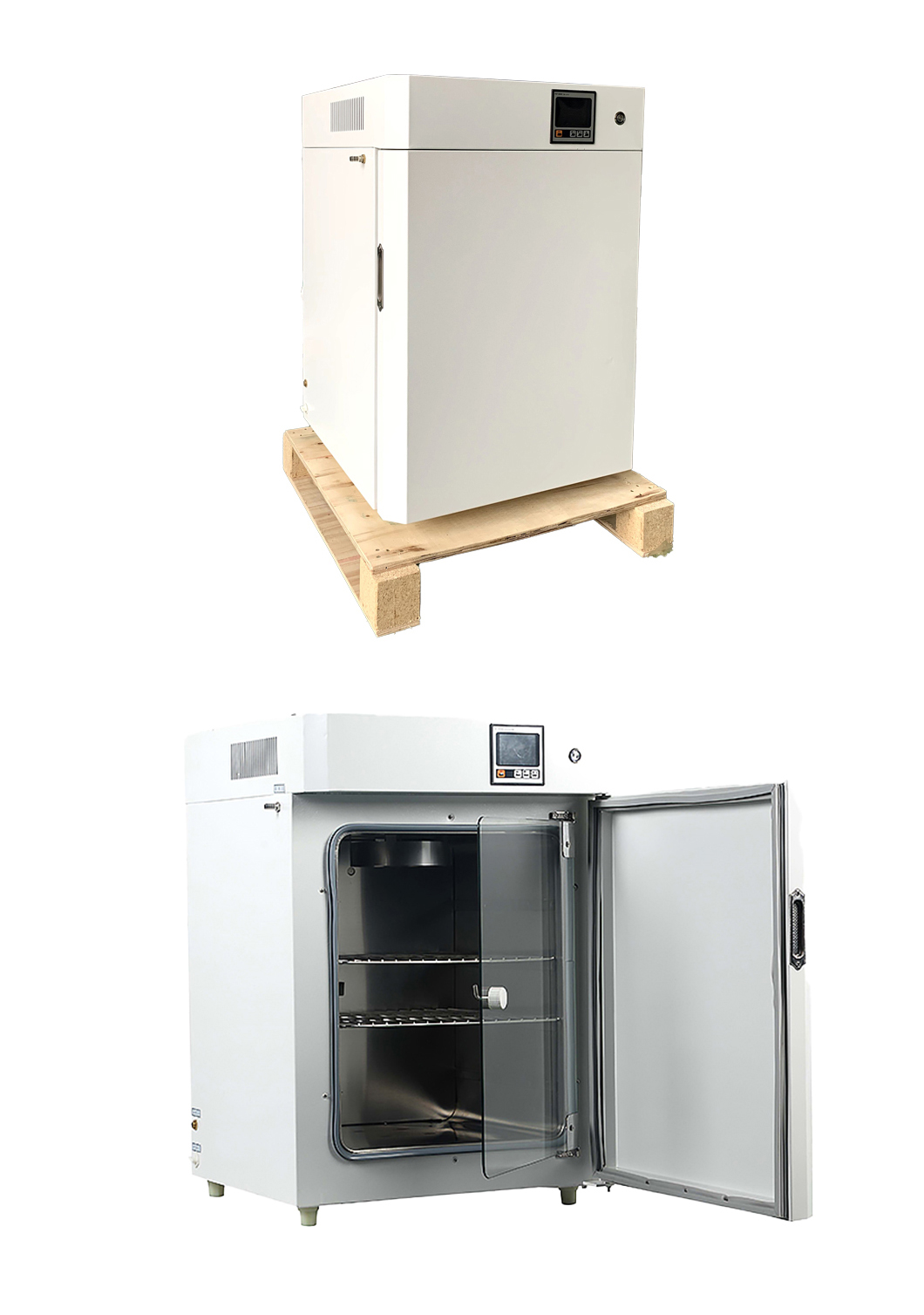

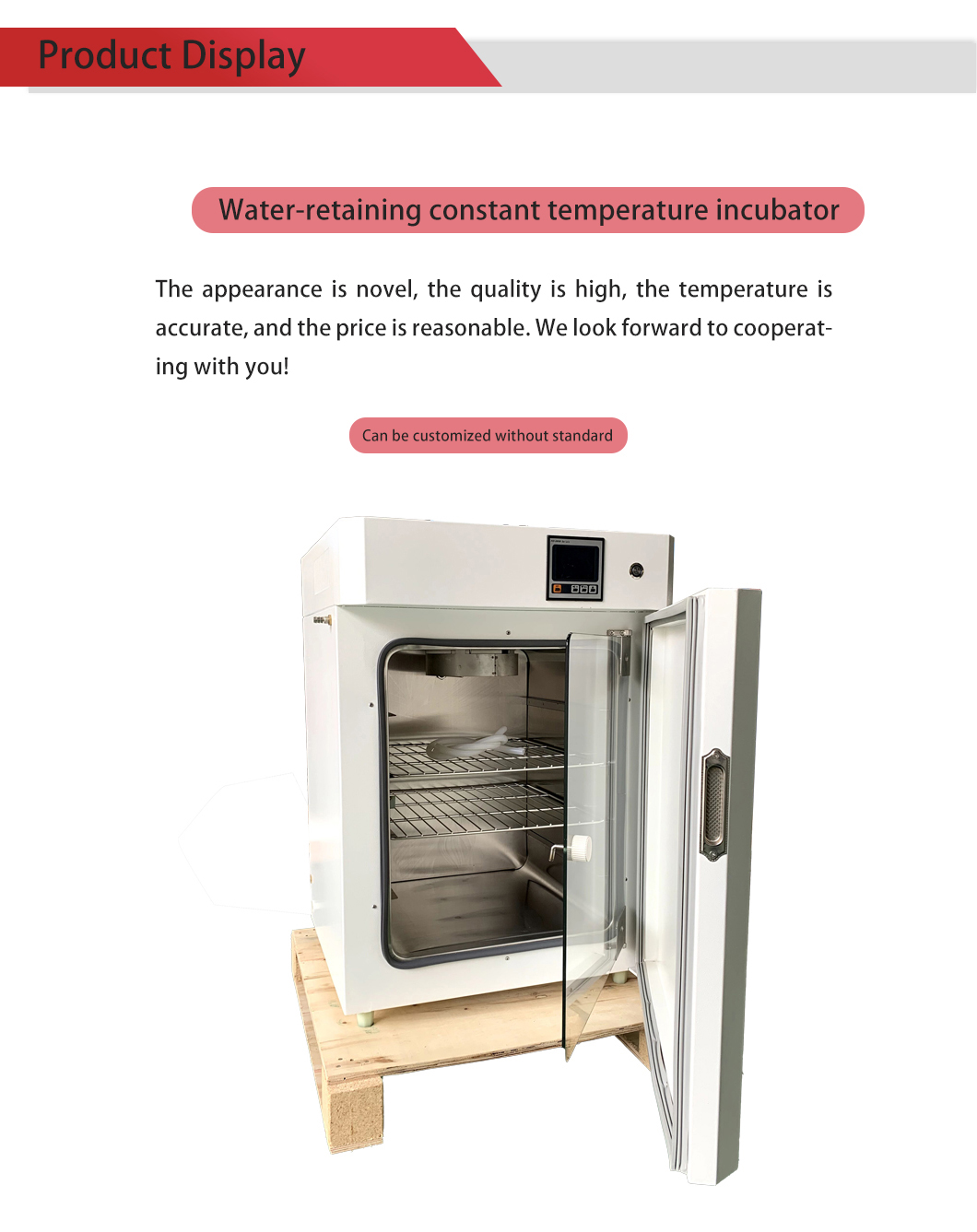

Water - jacketed Constant Temperature Incubator
1. The inner tank is made of 304 stainless steel, which will never rust.
2. It is equipped with an intelligent controller, and has a good temperature control effect. A large number of products are exported to European countries.
3. The liquid crystal screen displays parameters such as temperature and time.
4. It is manufactured by an honest enterprise, with durable products and all parameters presented without reservation.
5. The after - sales service is guaranteed, and there is after - sales service across the country (except in towns and townships).
6. Video teaching is provided to reduce the time users spend reading the instruction manual.
2. Product Features
Streamlined luxury overall machine shape with highly aesthetic design concept, electrostatic spraying plastic box body, and double - door structure.
It is made by mirror - surface stainless - steel argon arc welding. The outer box is made of high - quality steel plate, with a beautiful and novel shape. The mirror - surface stainless - steel inner lining ensures that the instrument will never rust.

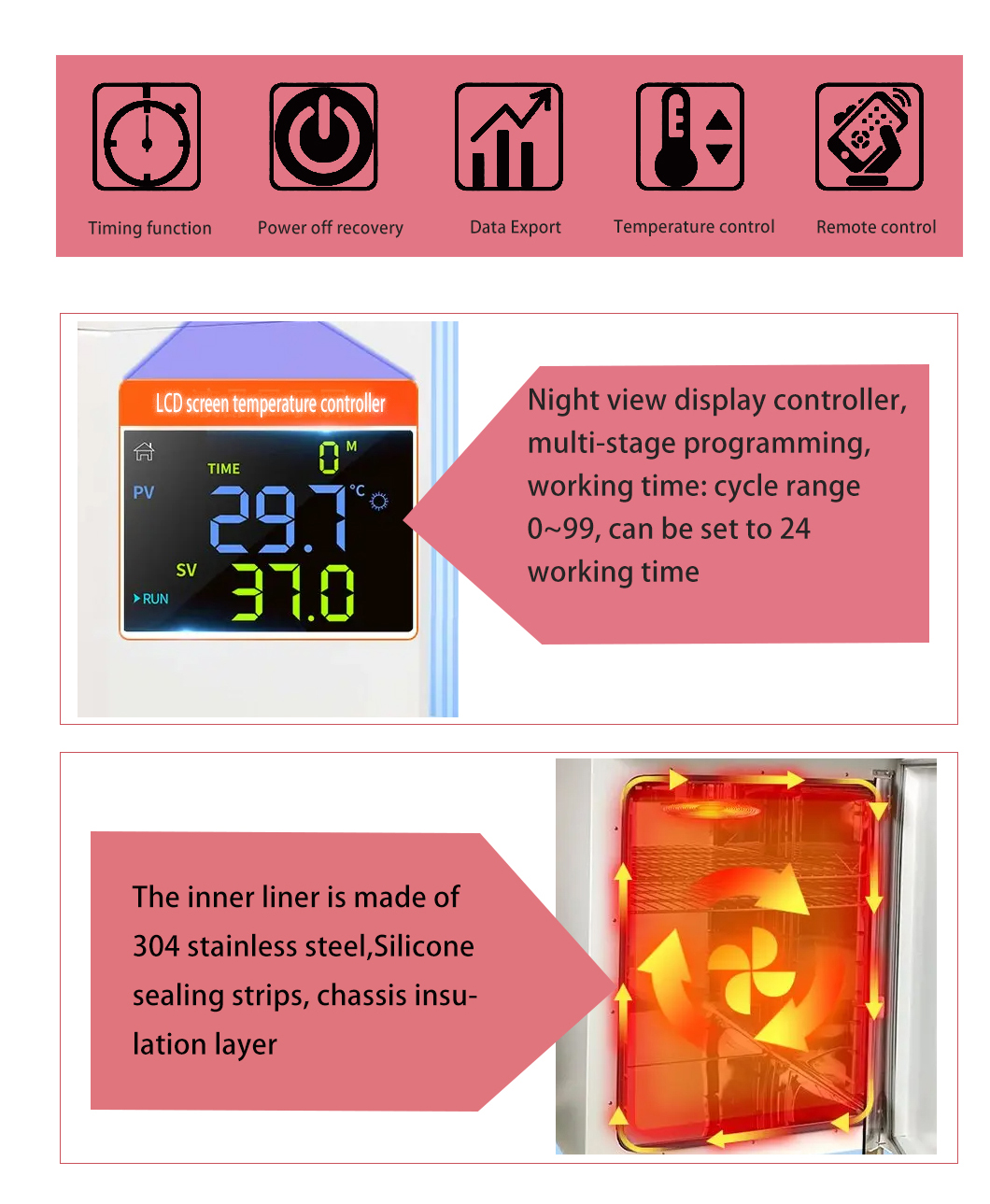

The LCD large - screen liquid - crystal display shows various set parameters and measured parameters.
High - performance constant - temperature function prevents the evaporation and drying of samples.
The automatic water - level identification system can achieve low - water - level sound and light alarm.
The box body is equipped with a water inlet and a water outlet, which can be connected to water pipes.
This product has unique advantages such as long - term heat preservation after power failure and uniform temperature.
It adopts a new - type synthetic silicon sealing strip, which can operate continuously at high temperatures, has a long service life, and is easy to replace.
It adopts a double - door structure, with a tempered glass door inside, effectively preventing temperature fluctuations when opening the door to observe samples.
The hot - air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct, improving the temperature uniformity in the working chamber.
The loading brackets in the box can be adjusted freely.
3. Control Introduction
Adopt a microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display. It has a timing function, and the temperature control is accurate and reliable.
The upgraded sound and light alarm environmental scanning microcomputer chip has a more powerful data processing function.
Functions such as over-temperature alarm, timed shutdown, power-on recovery, parameter encryption, and temperature correction.
It has a power failure recovery function. After the external power supply suddenly fails and then comes back on, the equipment can automatically resume operation according to the original set program.
4. Security Settings
Consider the ultimate safety protection design to achieve triple safety protection for personnel, samples and equipment.
Safety functions: sensor failure alarm, over-temperature alarm, independent overshoot preventer, independent over-temperature protector, over-current trip protection, etc.

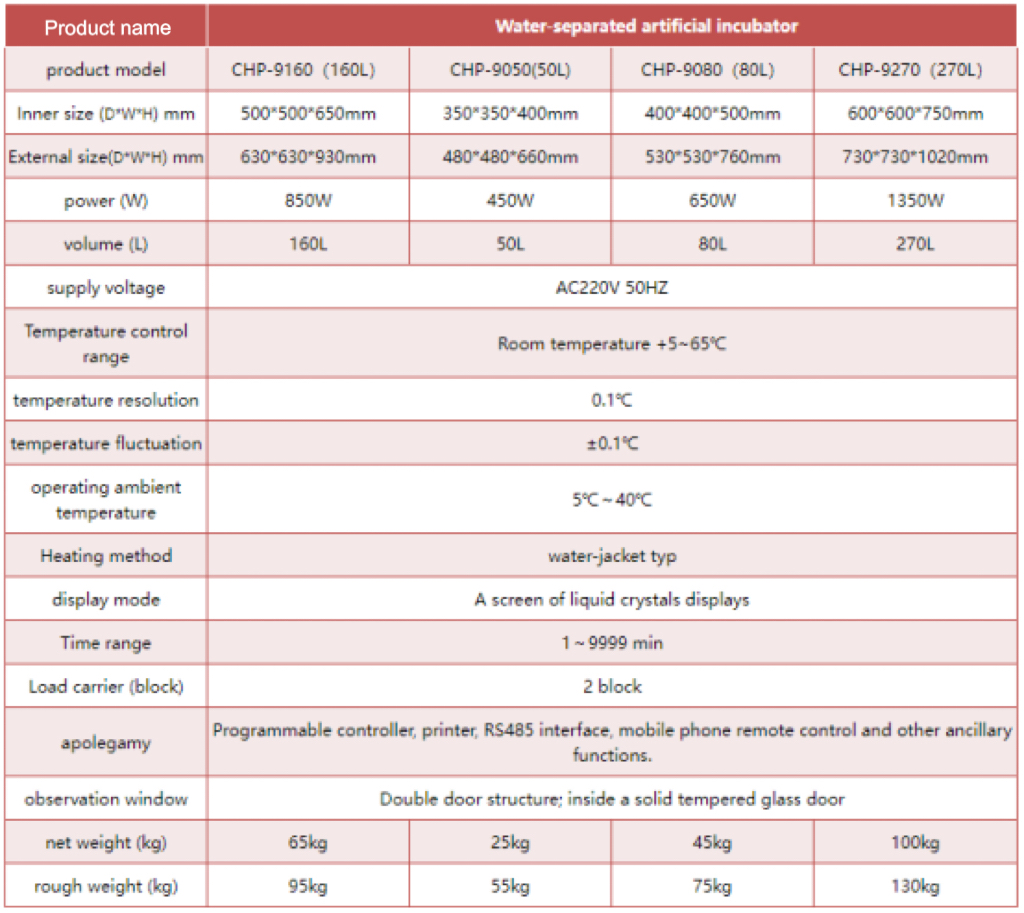

product name	Water-separated artificial incubator
product model	CHP-9160（160L）	CHP-9050(50L)	CHP-9080（80L）	CHP-9270（270L）
Inner size (D*W*H) mm	500*500*650mm	350*350*400mm	400*400*500mm	600*600*750mm
External size(D*W*H) mm	630*630*930mm	480*480*660mm	530*530*760mm	730*730*1020mm
power (W)	850W	450W	650W	1350W
volume (L)	160L	50L	80L	270L
supply voltage	AC220V 50HZ
Temperature control range	Room temperature +5~65℃
temperature resolution	0.1℃
temperature fluctuation	±0.1℃
operating ambient temperature	5℃～40℃
Heating method	water-jacket typ
display mode	A screen of liquid crystals displays
Time range	1～9999 min
Load carrier (block)	2 block
apolegamy	Programmable controller, printer, RS485 interface, mobile phone remote control and other ancillary functions.
observation window	Double door structure; inside a solid tempered glass door
net weight (kg)	65kg	25kg	45kg	100kg
rough weight (kg)	95kg	55kg	75kg	130kg
