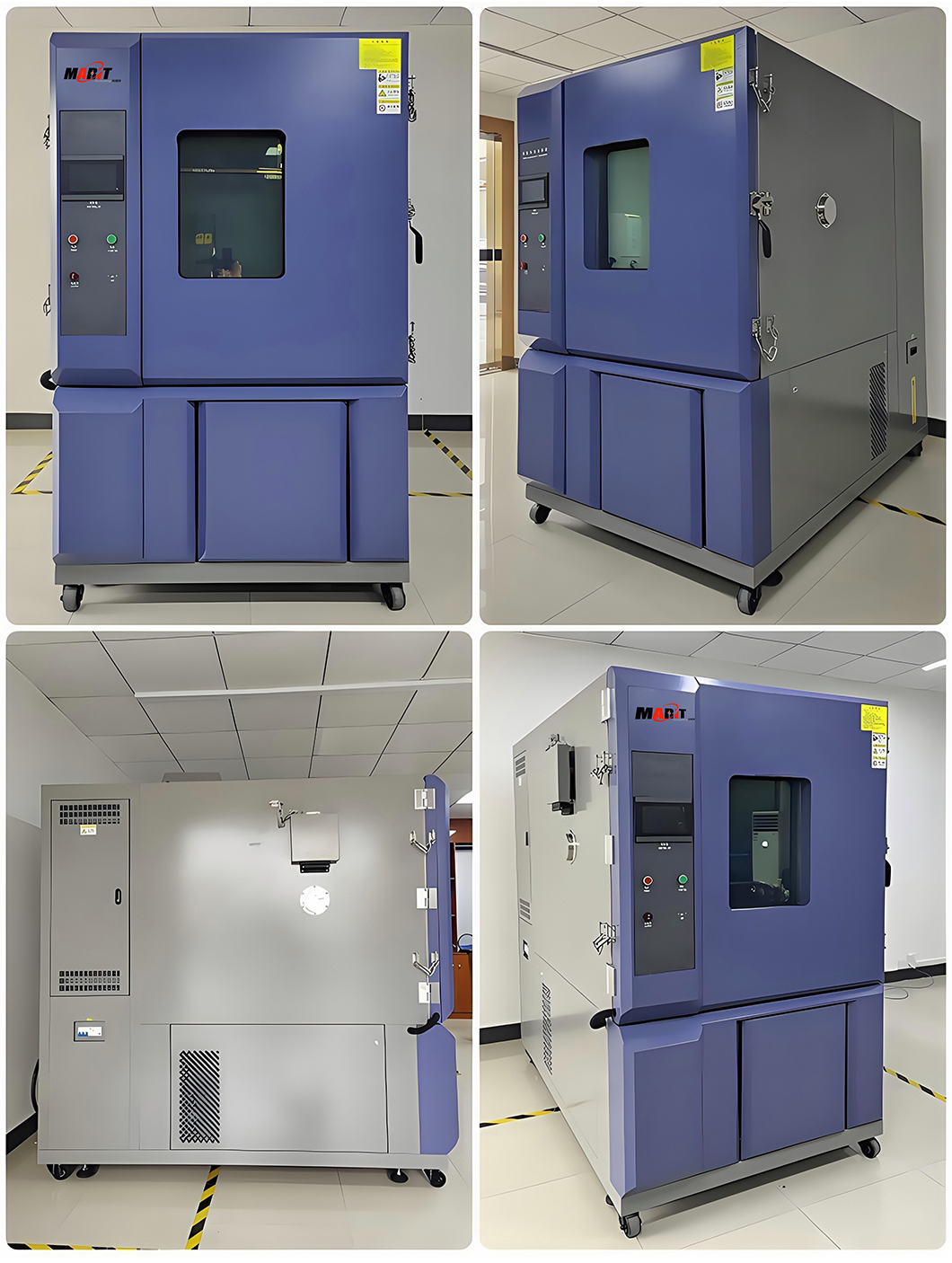

High Low Temperature Humidity Test Chamber Damp Heat Testing 50-100L
The high and low temperature humidity test machine is also known as the environmental test machine, which tests the heat resistance, cold resistance, dryness resistance and humidity resistance of various materials. It is suitable for electronic, electrical, communication, instrumentation, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products to test the quality of products.
Product Details
■ scope of application
The high and low temperature humidity test machine is also known as the environmental test machine, which tests the heat resistance, cold resistance, dryness resistance and humidity resistance of various materials. It is suitable for electronic, electrical, communication, instrumentation, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products to test the quality of products.
■ Implement the standards and test methods
1, GB2423.1-2008/1EC6008-2-1-2007 Low temperature test method
2, GB/T2423.2-2008 High temperature test method
3, GJB150.3A-2009 High temperature test method
4, GJB150.4A-2009 Low temperature test method
5, GB2423.22-2008 Temperature change rate test method
6, GBT2424.5-2006 Performance confirmation of temperature test chamber
7. GB/T10586-2008 Technical conditions for low temperature test chamber
8, GB/T2423.3-2008 (lEC68-2-3) constant wet heat test method
9, GJB150.9A-2009 Wet heat test method
10, G/BT2423.4-2008/lEC6008-2-30: alternating wet heat method in 2005
11, GB/T5170.18-2005 Verification method of basic parameters of test equipment
12. GB/T10586-2006 Technical conditions for humid and hot test chamber
13, GBT2424.6-2006 Performance confirmation of temperature and humidity test chamber
Measured by 14, GBT2424.7-2006 (with load) temperature test chamber
■ Product features
1. High texture appearance, the body adopts a curved shape, the surface is treated with fog noodle pattern, and the flat non-reactive handle is adopted, easy to operate, safe and reliable.
2. The rectangular double-layer glass observation window can be used for observation of test products during the test. The window is equipped with a sweat-proof electric heater to prevent water condensation and droplets, and a high-brightness PL fluorescent lamp to maintain the lighting inside the box.
3. The double-layer isolation air-tightness of the box door can effectively isolate the internal temperature leakage.

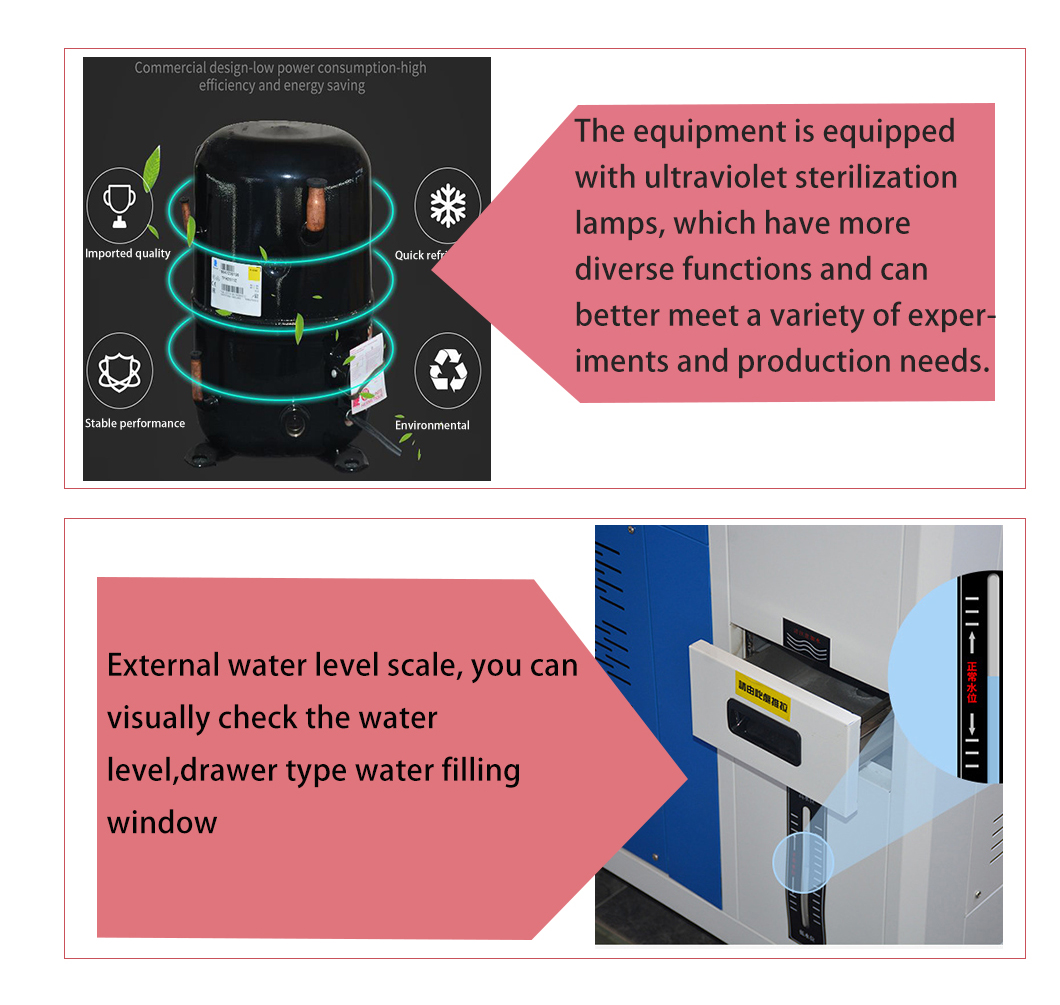

4. It has an external water supply system, which is convenient for replenishing the water supply to the humidification tank and automatically recycling it.
5. The compressor circulation system adopts the French "Taikang" brand, which can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series uses environmentally friendly refrigerants (R23, R404) o

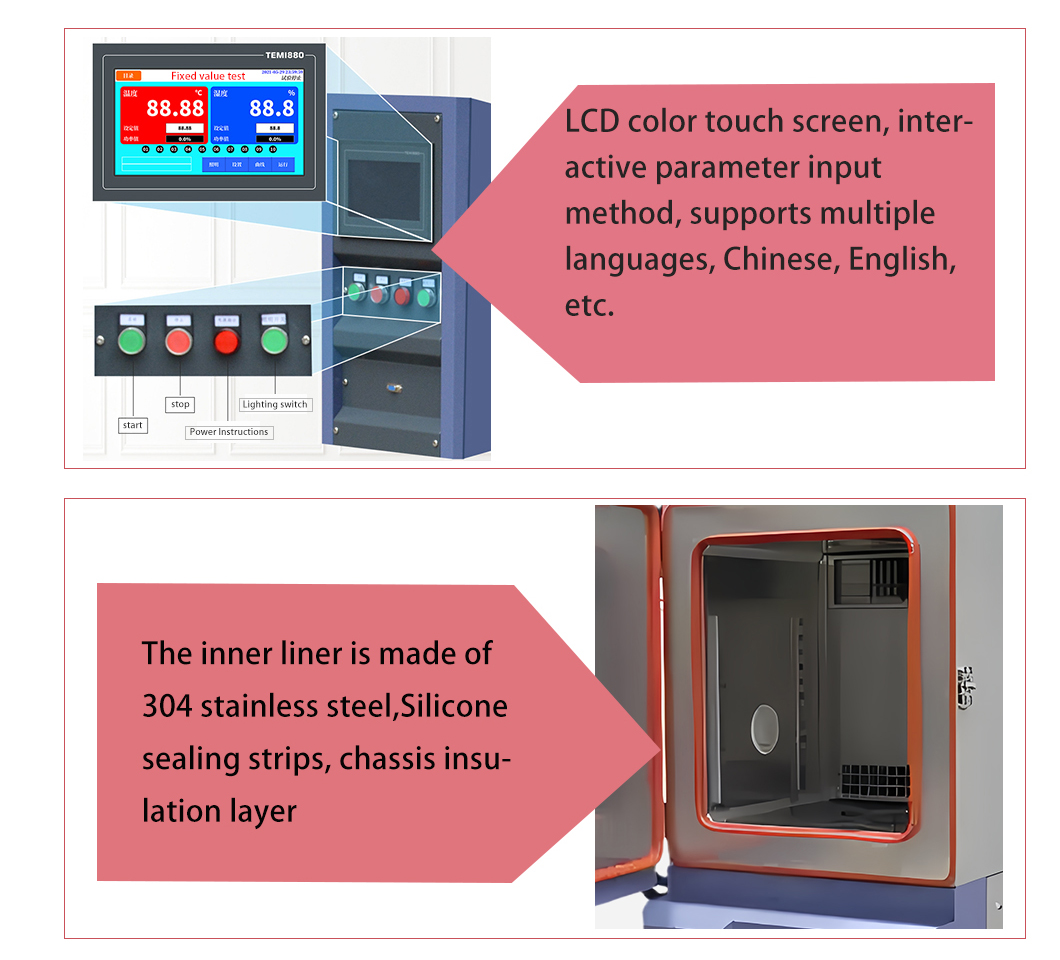

6. The controller adopts imported LCD display screen, which can display the measurement value, set value and time at the same time.
7. The controller has multi-segment program editing and temperature and humidity can be controlled by fast (OUICK) or slope (SLOP).
8. The built-in moving pulley is easy to move and place, and has a strong positioning screw to fix the position.

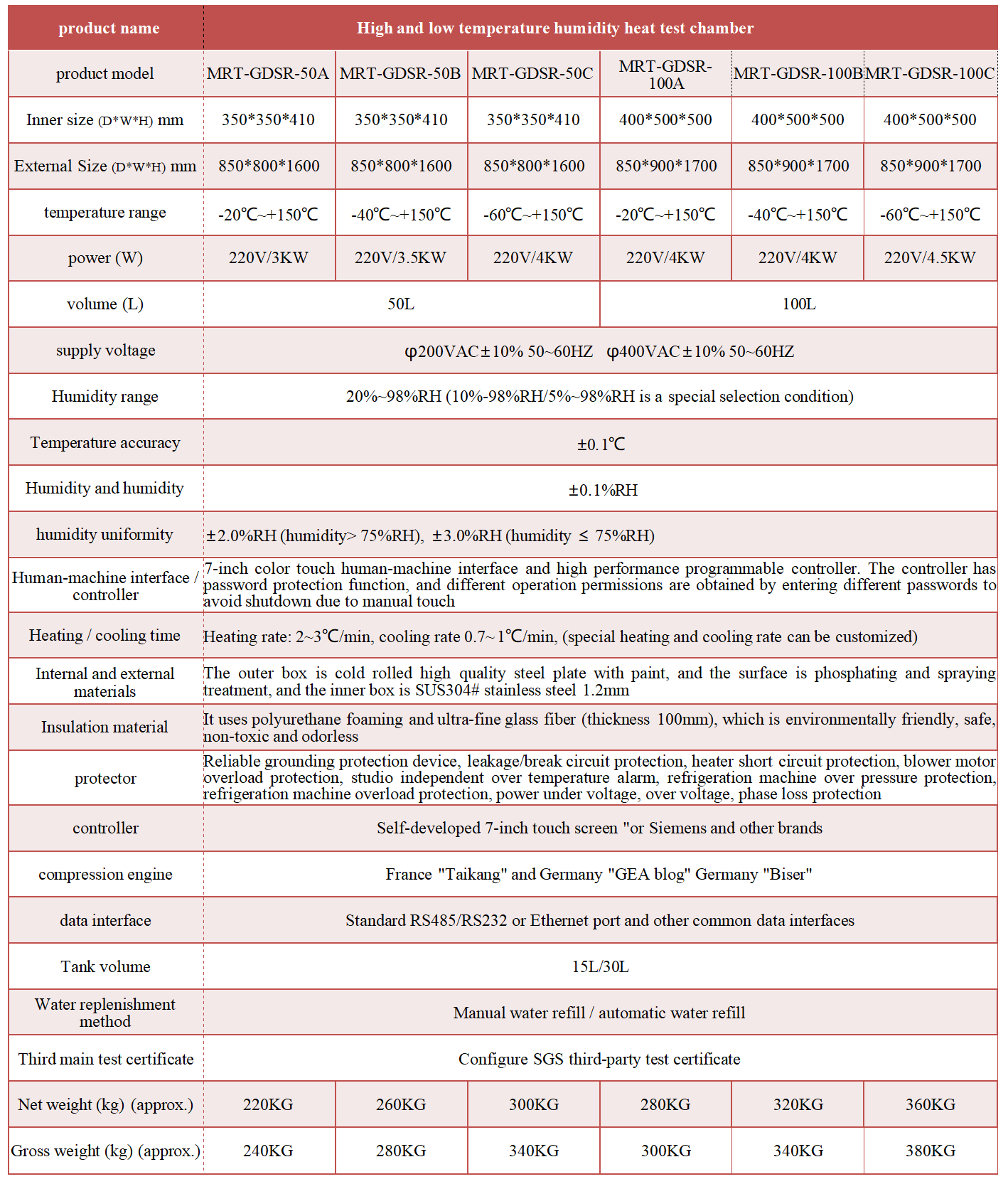

technical parameter
|
product name |
High and low temperature humidity heat test chamber |
|||||
|
product model |
MRT-GDSR-50A |
MRT-GDSR-50B |
MRT-GDSR-50C |
MRT-GDSR-100A |
MRT-GDSR-100B |
MRT-GDSR-100C |
|
Inner size (D*W*H) mm |
350*350*410 |
350*350*410 |
350*350*410 |
400*500*500 |
400*500*500 |
400*500*500 |
|
External Size (D*W*H) mm |
850*800*1600 |
850*800*1600 |
850*800*1600 |
850*900*1700 |
850*900*1700 |
850*900*1700 |
|
temperature range |
-20℃~+150℃ |
-40℃~+150℃ |
-60℃~+150℃ |
-20℃~+150℃ |
-40℃~+150℃ |
-60℃~+150℃ |
|
power (W) |
220V/3KW |
220V/3.5KW |
220V/4KW |
220V/4KW |
220V/4KW |
220V/4.5KW |
|
volume (L) |
50L |
100L |
||||
|
supply voltage |
AC220V±10% 50~60HZ
|
|||||
|
Humidity range |
20%~98%RH (10%-98%RH/5%~98%RH is a special selection condition) |
|||||
|
Temperature accuracy |
±0.1℃ |
|||||
|
Humidity and humidity |
±0.1%RH |
|||||
|
humidity uniformity |
±2.0%RH (humidity> 75%RH), ±3.0%RH (humidity ≤ 75%RH) |
|||||
|
Human-machine interface / controller |
7-inch color touch human-machine interface and high performance programmable controller. The controller has password protection function, and different operation permissions are obtained by entering different passwords to avoid shutdown due to manual touch |
|||||
|
Heating / cooling time |
Heating rate: 2~3℃/min, cooling rate 0.7~1℃/min, (special heating and cooling rate can be customized) |
|||||
|
Internal and external materials |

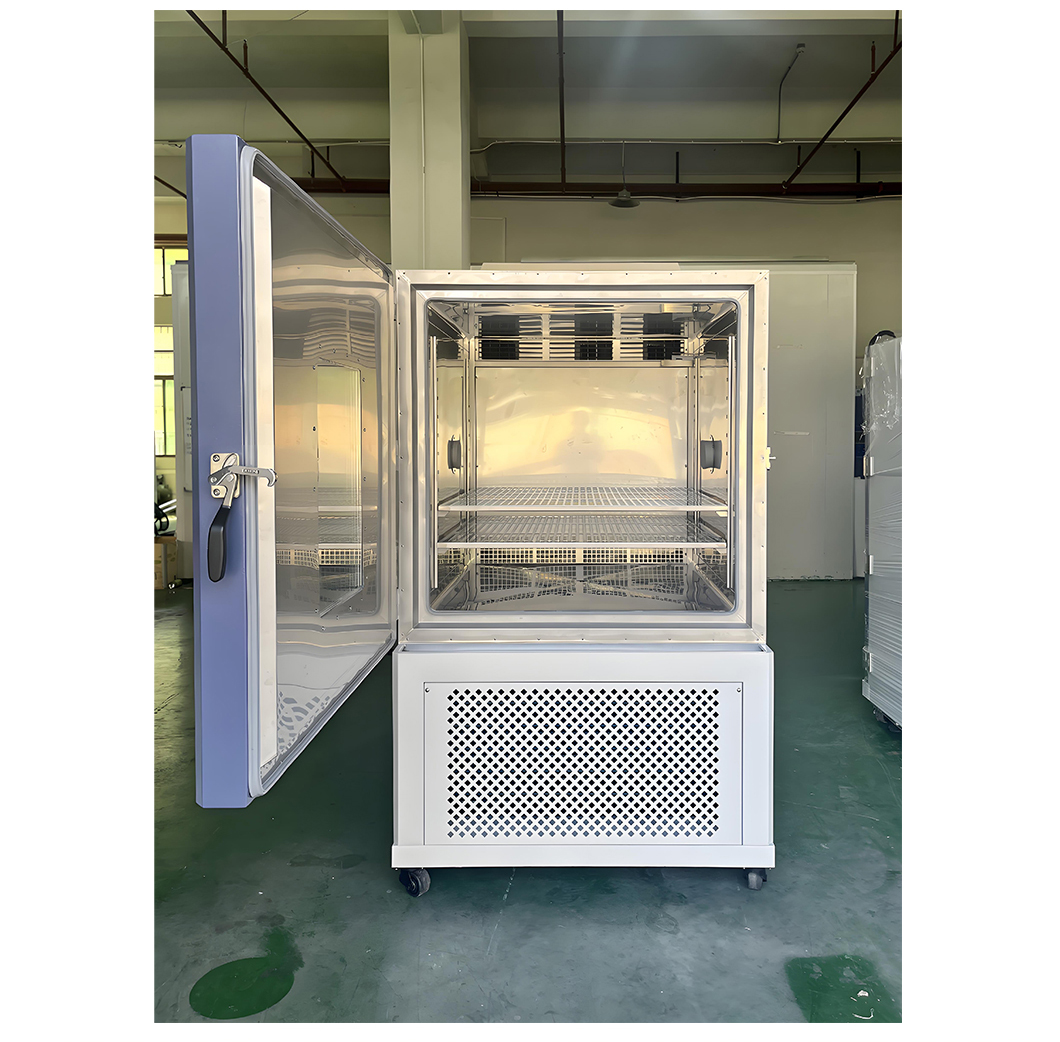

The outer box is cold rolled high quality steel plate with paint, and the surface is phosphating and spraying treatment, and the inner box is SUS304# stainless steel 1.2mm |
|||||
|
Insulation material |
It uses polyurethane foaming and ultra-fine glass fiber (thickness 100mm), which is environmentally friendly, safe, non-toxic and odorless |
|||||
|
protector |
Reliable grounding protection device, leakage/break circuit protection, heater short circuit protection, blower motor overload protection, studio independent over temperature alarm, refrigeration machine over pressure protection, refrigeration machine overload protection, power under voltage, over voltage, phase loss protection |
|||||
|
controller |
Self-developed 7-inch touch screen "or Siemens and other brands |
|||||
|
compression engine |
France "Taikang" and Germany "GEA blog" Germany "Biser" |
|||||
|
data interface |
Standard RS485/RS232 or Ethernet port and other common data interfaces |
|||||
|
Tank volume |
15L/30L |
|||||
|
Water replenishment method |
Manual water refill / automatic water refill |
|||||
|
Third main test certificate |
Configure SGS third-party test certificate |
|||||
|
Net weight (kg) (approx.) |
220KG |
260KG |
300KG |
280KG |
320KG |
360KG |
|
Gross weight (kg) (approx.) |
240KG |
280KG |
340KG |
300KG |
340KG |
380KG |
