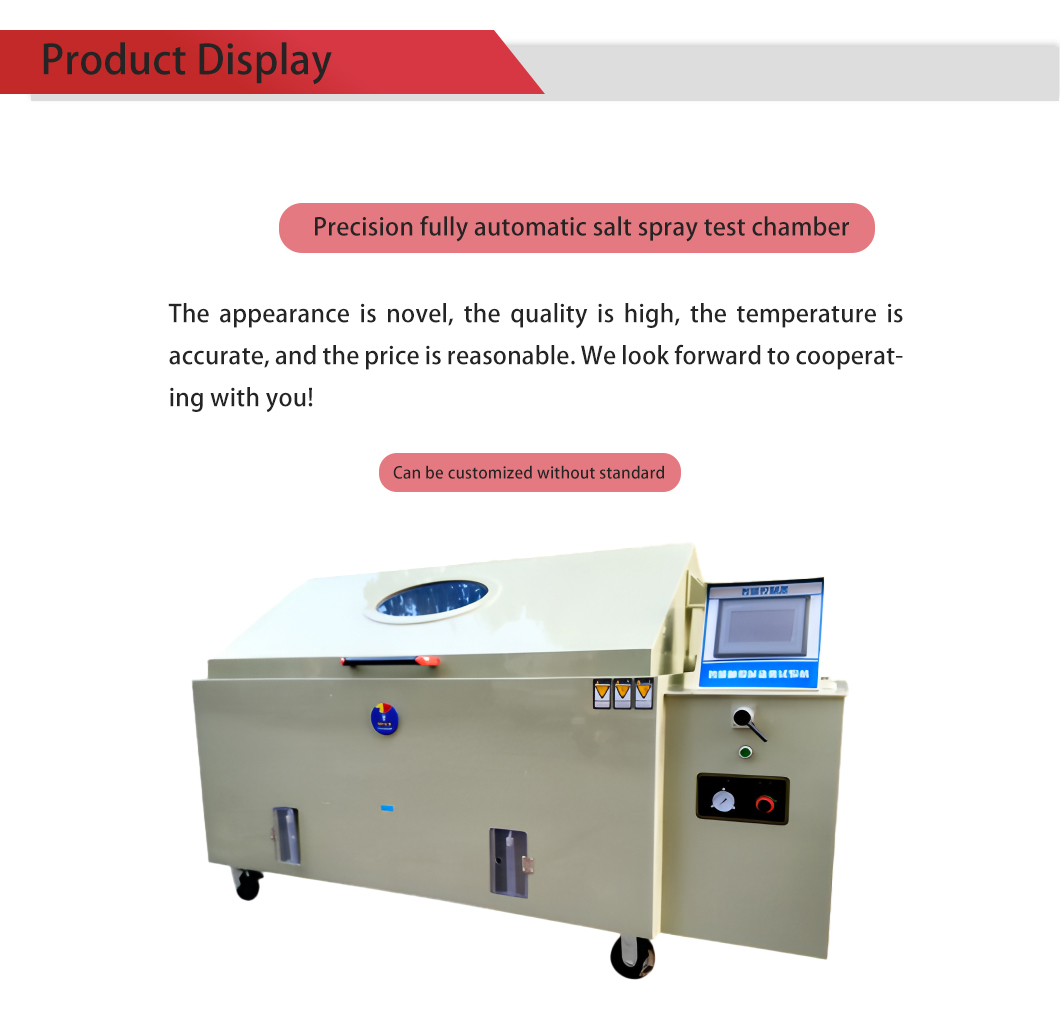

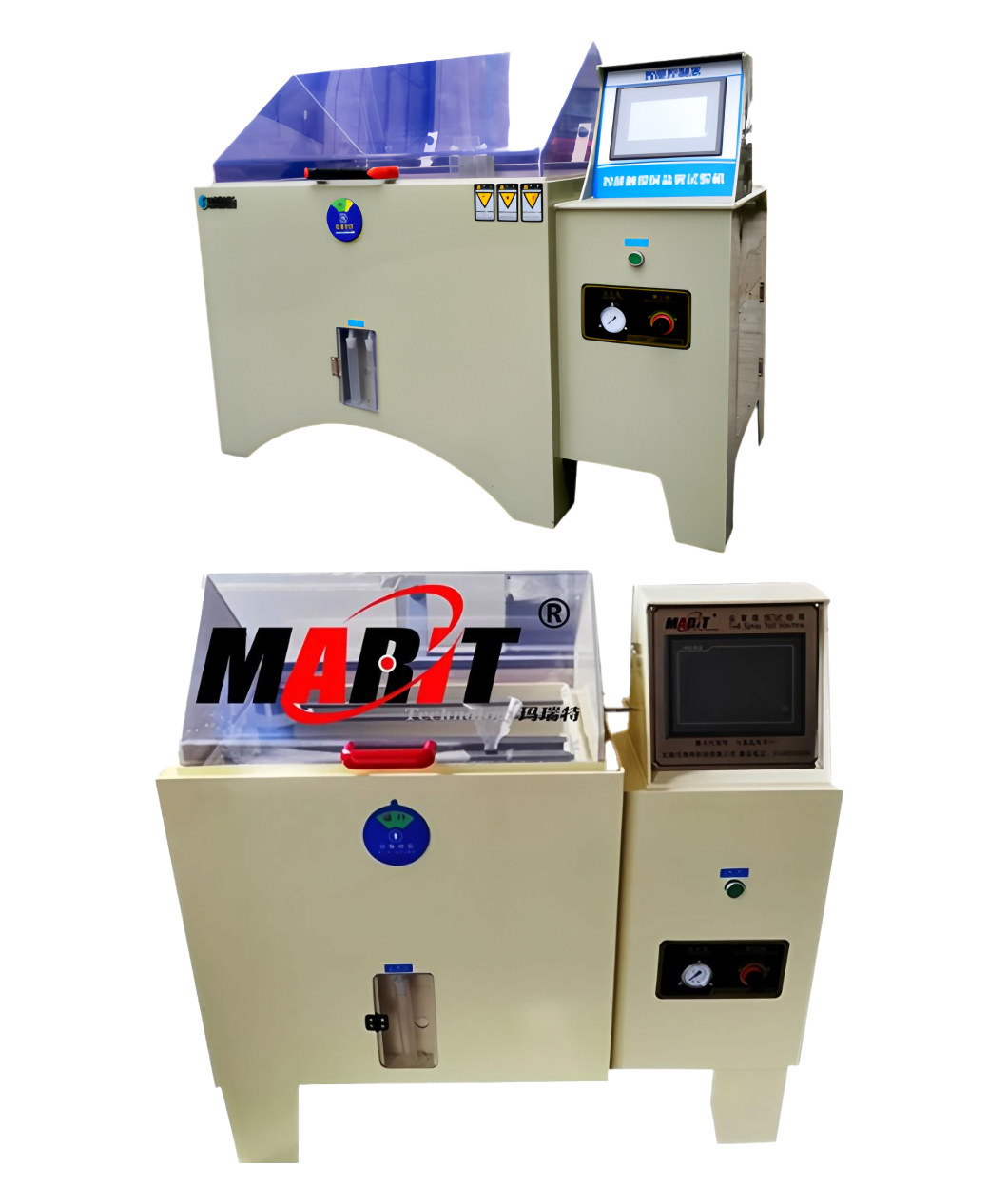

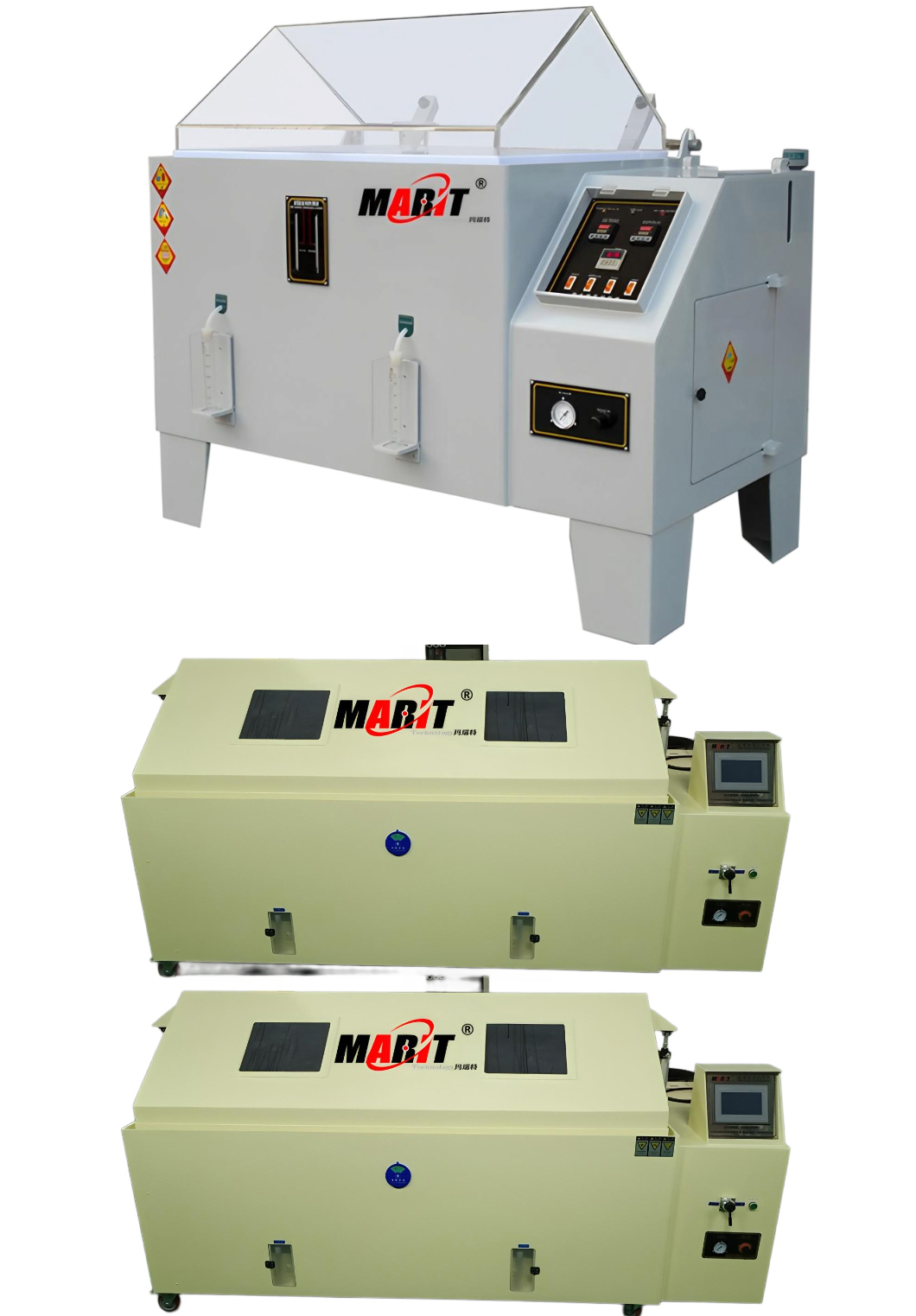

Precision salt spray test chamber

PRECISION SALT SPRAY TEST CHAMBER

■ scope of application

A precision salt spray test chamber is a device used to simulate a salt spray environment for corrosion testing. It generates salt mist by mixing heated water vapor with a salt solution, mimicking the destructive effects of marine climates on products. This process evaluates the reliability of samples in terms of their resistance to corrosion. Widely applied in material science, automotive manufacturing, electronics, and hardware industries, it assesses the corrosion resistance of materials and products in a salt spray environment. The demand for such equipment grows with the development of manufacturing.

■ Product features

1. The inner and outer boxes of the machine are made of grade A rice yellow PP plate with high temperature, high humidity and high corrosion resistance. It is welded by using advanced ring belt production three-dimensional reinforcement technology. The structure is strong and solid, never deformed, gorgeous and generous, suitable for salt spray, copper acetate and other test specifications.

2. Test drug replenishment bottle: hidden integrated test drug replenishment bottle, easy to clean and convenient to operate.

3. Pressure saturated barrel: made of SUS304 stainless steel, exquisite tank structure design, high temperature, high humidity, high pressure, high corrosion resistance.

4. The test sample rack adopts the planar indexing type, which can adjust the Angle at will, and the fog on all four sides is uniform and consistent. The test results are accurate and the number of test samples placed is large.

5. Laboratory cover: 5mm thick high toughness transparent PVC (import) plate is used to design a 100 degree ridge transparent cover by physical bending method. The fog and dew remaining on the cover will slide down the wall of the cover to the sealing groove to prevent dripping onto the tested products.

6. It has advanced functions such as self-detection and self-testing, which is your choice to achieve twice the result with half the effort.

7. The whole digital circuit design has accurate temperature control, uses high-quality imported electrical materials, reasonable wiring design, long service life and complete testing functions.

8. It has the memory function of power outage time, so that the remaining time of the test work can be completed after the original timing is pressed upon receiving the call. It also has double over-temperature protection and water level warning to ensure safe use.

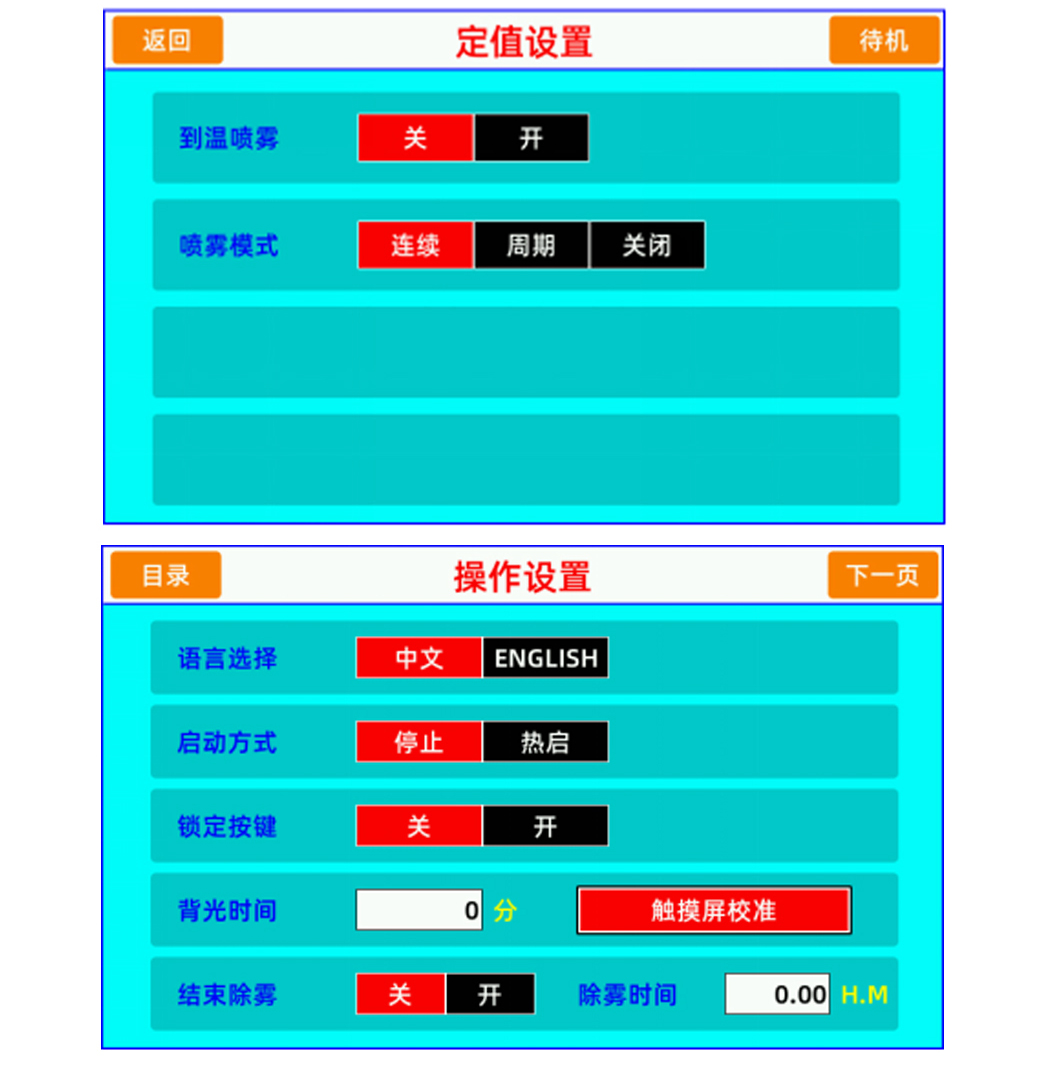

9. The spray and stop time can be set separately to carry out intermittent spray in cycles.

10. The fog sealing groove uses the environmentally friendly water sealing method to prevent the leakage of fog.

11. The spray tower adopts a conical disperser, which has the functions of guiding fog, adjusting fog amount and uniform fog falling.

12. The instrument adopts ergonomic design, beautiful appearance and convenient operation.

n technical parameter

product name	Precision salt spray test chamber
product model	MRT-YWX-60	MRT-YWX-90		MRT-YWX-110		MRT-YWX-120	MRT-YWX-130	MRT-YWX-160	MRT-YWX-200
Inner tank size (D*W*H) mm	600*450*400	900*600*500		1100*750*500		1200*800*500	1300*800*600	1600*900*600	2000*1000*600
External dimensions (D*W*H) mm	1100*750*930	1500*900*1150		1700*1050*1150		1800*1100*1200	1900*1100*1300	2300*1300*1300	2700*1400*1500
uniphase	2KW 、50HZ.		2KW 、50HZ.		3.5KW 、50HZ.	3.5KW 、50HZ.	4KW 、50HZ.	5KW 、50HZ.	5KW 、50HZ.
source	220V		220V		220V	220V	220V	380V	380V
salt spray test	NSS 、  AASS。
Laboratory temperature	35℃±1℃。
Pressure air tank	47℃±1℃。
Outer box	5mm A grade bright PP board (imported from Taiwan)
tank cover	5mm wear-resistant transparent PVC observation window (imported from Taiwan)
sample holder	Grade A PP stent (imported from Taiwan)
time relay	OMRON
spray nozzle	Imports from Taiwan
EJO	Source: China
Level switch	Source: China
heating tube	Pure titanium heating tube
auxiliary relay	Sinohydro CILN China
solid state relay	Kayzer
electromagnetic valve	Yadeke
pressure gage	ＫK

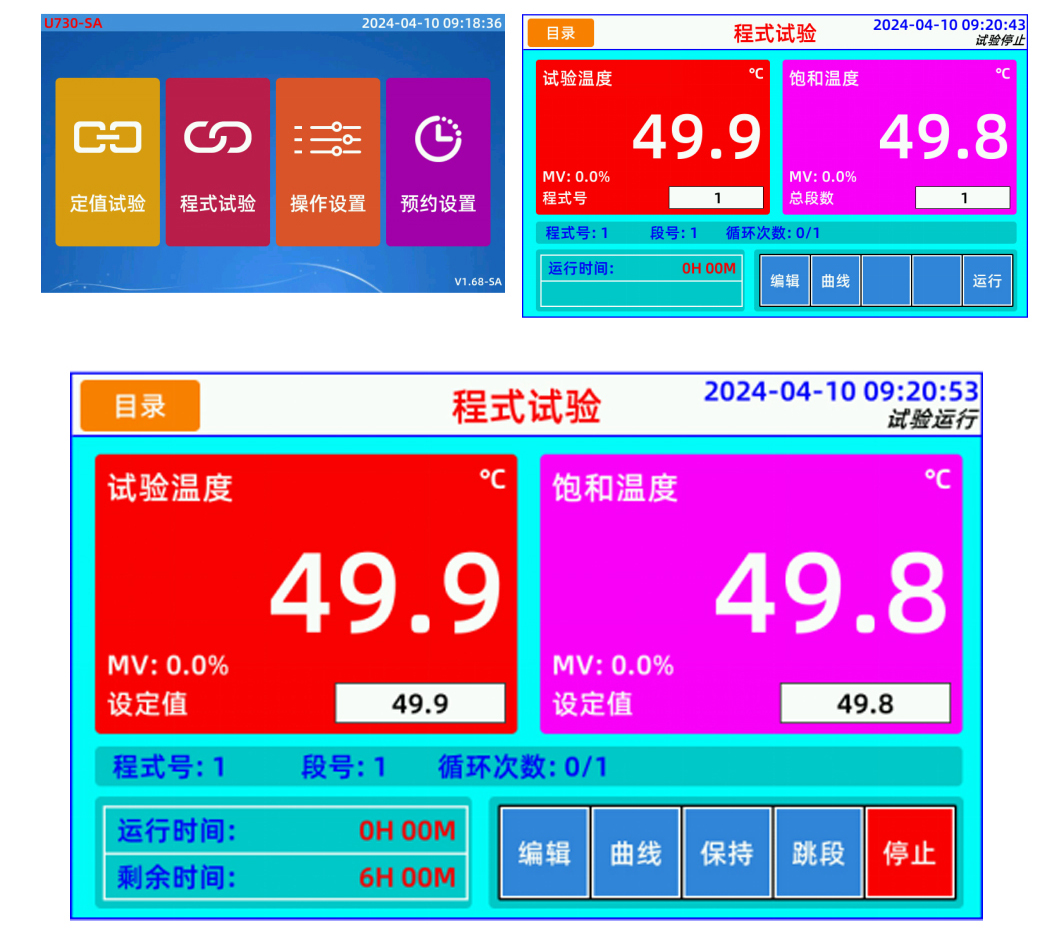

controller	Xiamen Yudian
calculagraph	OMRON
sensor	Taiwan's divine eyelashes
pneumatic system	Baofeng pneumatic
