Rapid Temperature Change Test Environmental Stress Screening Climate Chamber
The rapid temperature change tester, also known as the environmental tester, tests the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. It is suitable for the quality testing of electronic, electrical, communication, instrumentation, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Product Details

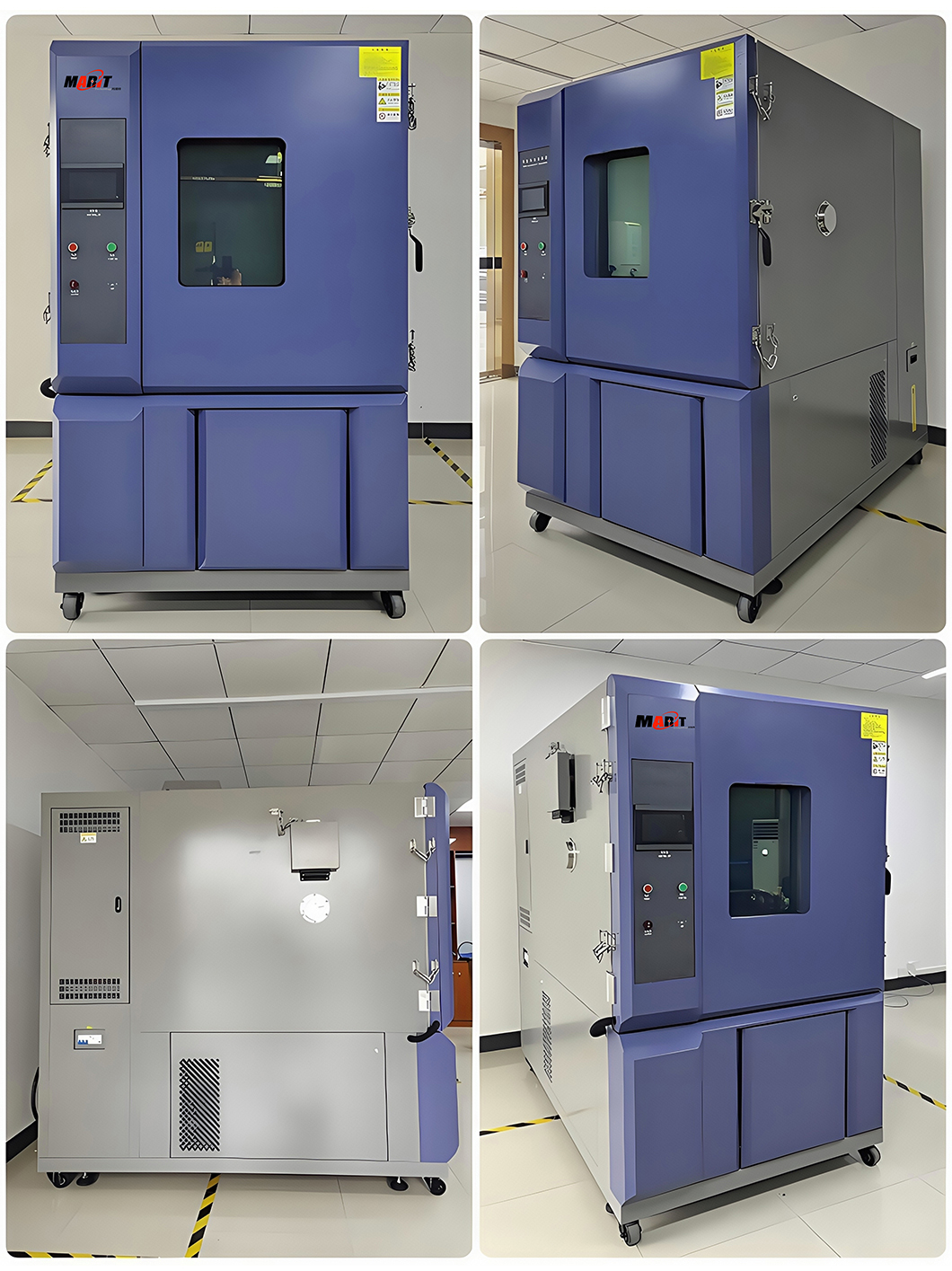

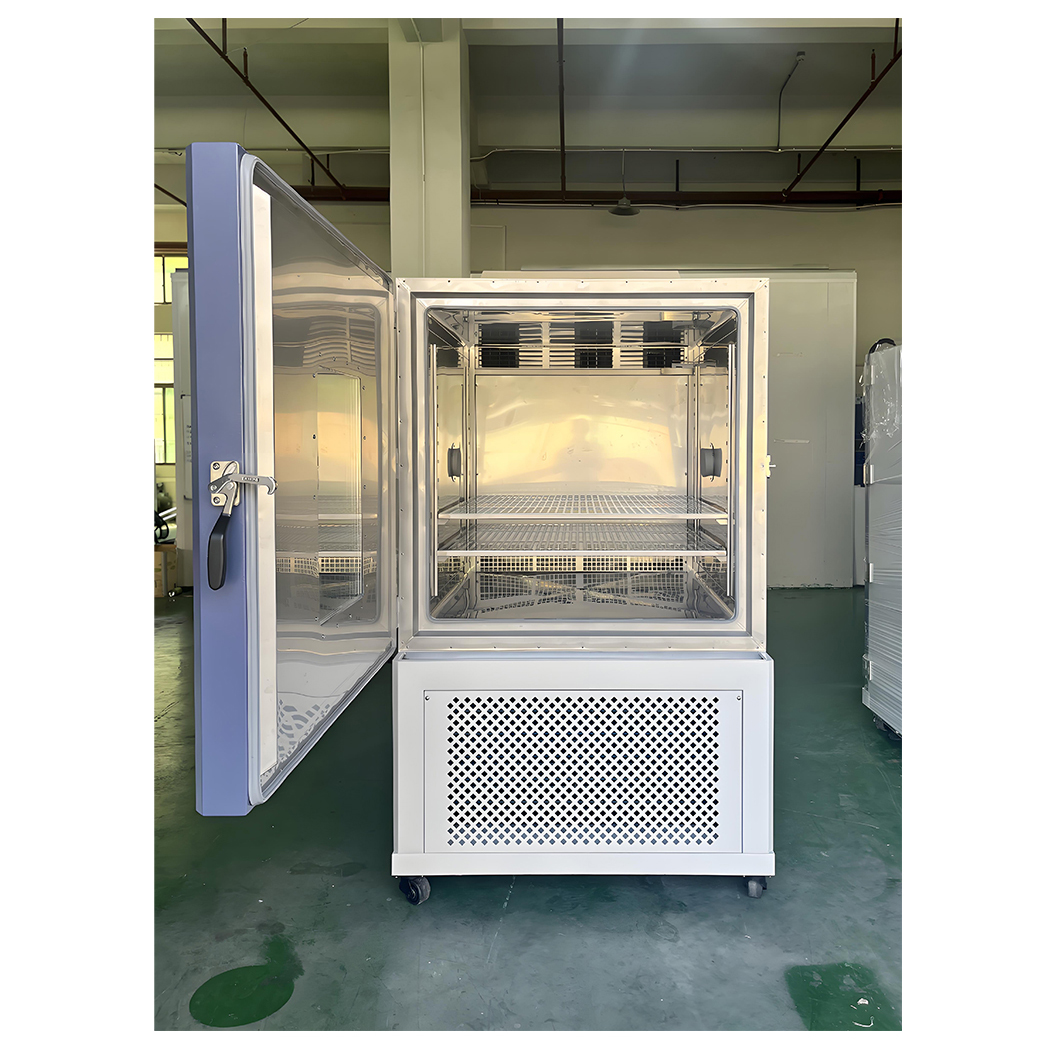

Rapid temperature change test chamber 800L (linear)
RAPID TEMPERATURE CHANGE TEST CHAMBER 800L (LINEAR)
■ scope of application
The rapid temperature change tester, also known as the environmental tester, tests the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. It is suitable for the quality testing of electronic, electrical, communication, instrumentation, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
■ Implement the standards and test methods
1, GB2423.1-2008/1EC6008-2-1-2007 Low temperature test method
2, GB/T2423.2-2008 High temperature test method
3, GJB150.3A-2009 High temperature test method
4, GJB150.4A-2009 Low temperature test method
5, GB2423.22-2008 Temperature change rate test method
6, GBT2424.5-2006 Performance confirmation of temperature test chamber
7. GB/T10586-2008 Technical conditions for low temperature test chamber
8, GB/T5170.18-2005 Verification method of basic parameters of test equipment
9, GBT2424.7-2006 (with load) temperature test chamber
■ Product features
1. High texture appearance, the body adopts a curved shape, the surface is treated with fog noodle pattern, and the plane without reaction handle is adopted, easy to operate, safe and reliable.
2. The rectangular double-layer glass observation window can be used for observation of test products during the test. The window is equipped with an anti-sweating electric heater to prevent water condensation and droplets, and a high-brightness PL fluorescent lamp to maintain the lighting inside the box.
3. The double-layer isolation air tightness of the box door can effectively isolate the internal temperature leakage.

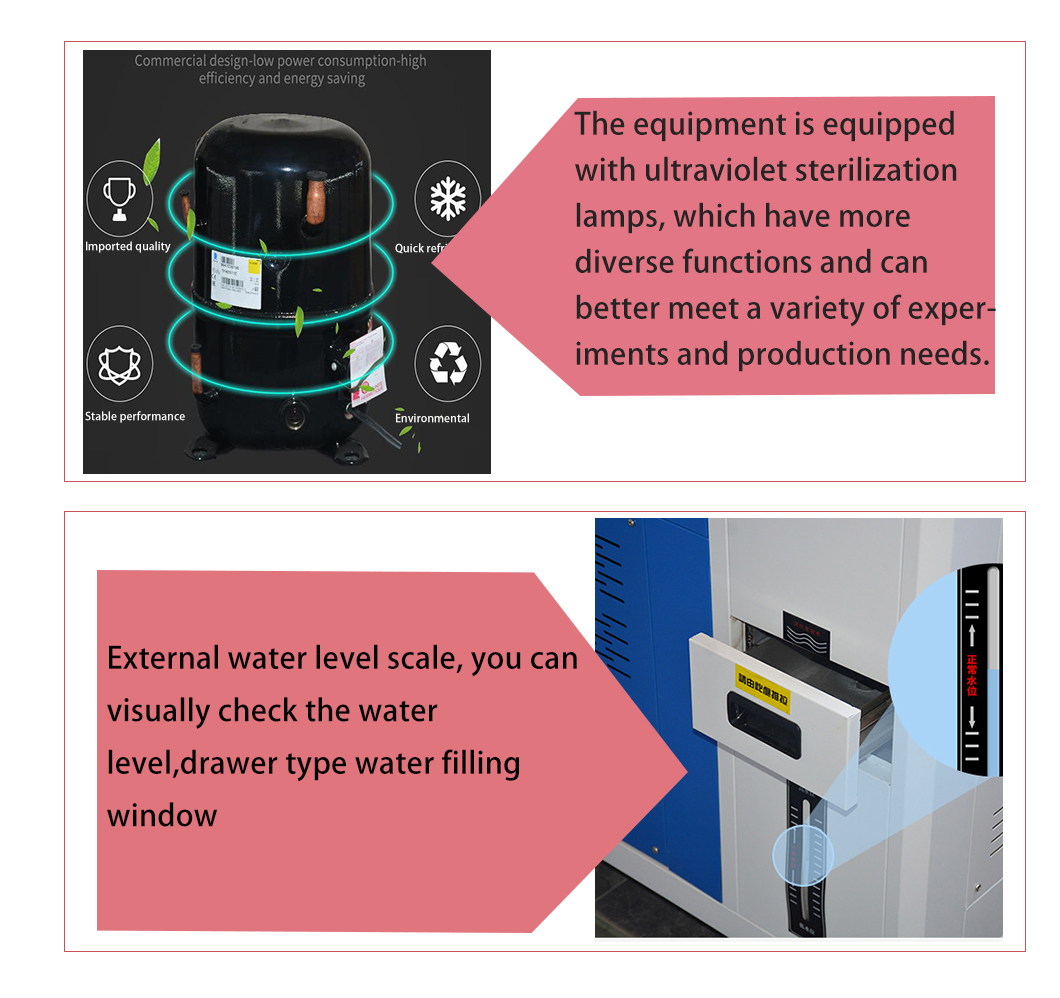

4. It has an external water supply system, which is convenient for replenishing the water supply of the humidification tank and automatically recycling it.
5. The compressor circulation system adopts the French "Taikang" brand, which can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series uses environmentally friendly refrigerants (R23, R404)

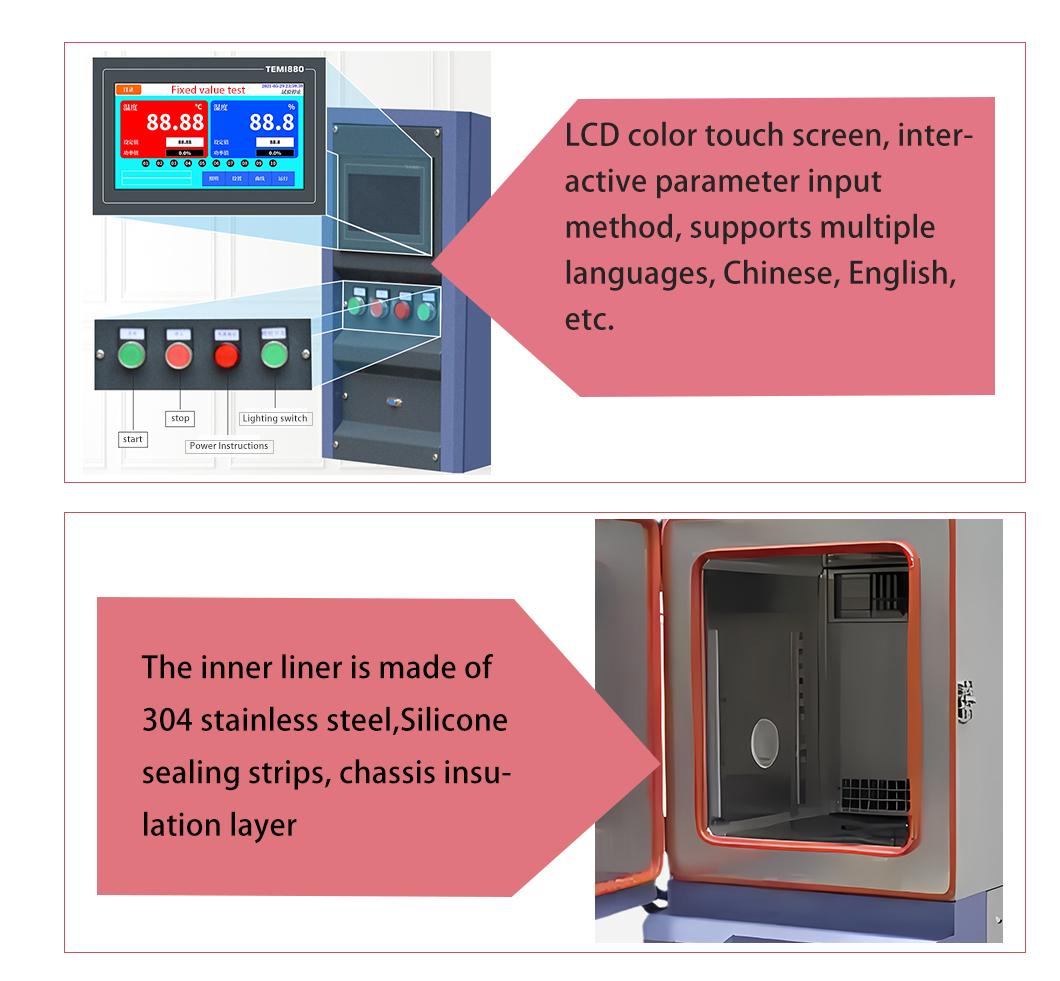

6. The controller adopts imported LCD display screen, which can display measurement value, set value and time at the same time.
7. The controller has multi-segment program editing and temperature and humidity can be controlled by fast (OUICK) or slope (SLOP).
8. The built-in moving pulley is easy to move and place, and has a strong positioning screw to fix the position.
n technical parameter
|
product name |
Rapid temperature change test chamber 800L (linear) |
|||
|
product model |
MRT-FTC-800-5X |
MRT-FTC-800-10X |
MRT-FTC-800-15X |
MRT-FTC-800-20X |
|
Inner size (D*W*H) mm |
800*1000*1000 |
800*1000*1000 |
800*1000*1000 |
800*1000*1000 |
|
External Size (D*W*H) mm |
1300*1500*2000 |
1300*1500*2000 |
1300*1500*2000 |
1300*1500*2000 |
|
power (W) |
380V/40KW |
380V/48KW |
380V/54KW |
380V/60KW |
|
volume (L) |
800L |
|||
|
temperature range |
-70℃～+150℃ |
|||
|
Rapid temperature change range |
-40℃～+85℃/-55℃～+85℃
|
|||
|
Temperature rise and fall rate |
The average rate of temperature rise and fall was 5℃/min, 10℃/min, 15℃/min and 20℃/min |
|||
|
supply voltage |
AC380V±10% 50~60HZ
|
|||
|
Temperature accuracy |
0.1℃ |
|||
|
temperature fluctuation |
±0.5℃ |
|||
|
temperature uniformity |
±2℃ |
|||
|
Human-machine interface / controller |
7-inch color touch human-machine interface and high performance programmable controller. The controller has password protection function, and different operation permissions are obtained by entering different passwords to avoid shutdown due to manual touch |
|||
|
Internal and external materials |
The outer box is cold rolled high quality steel plate with spray paint, surface phosphating and spraying treatment, the inner box is SUS304# stainless steel 1.2mm |
|||
|
Insulation material |
It uses polyurethane foaming and ultra-fine glass fiber (thickness 100mm), which is environmentally friendly, safe, non-toxic and odorless |
|||
|
protector |
Reliable grounding protection device, leakage/break circuit protection, heater short circuit protection, blower motor overload protection, studio independent over temperature alarm, refrigeration over pressure protection, refrigeration overload protection, power under voltage, over voltage, phase loss protection |
|||
|
controller |
Self-developed 7-inch touch screen "or Siemens and other brands |
|||
|
compression engine |
France "Taikang" and Germany "GEA blog" Germany "Biser" |
|||
|
data interface |
Standard RS485/RS232 or Ethernet port and other common data interfaces |
|||
|
Third main test certificate |
Configure SGS third-party test certificate |
|||
|
Net weight (kg) (approx.) |
900KG |
950KG |
1000KG |
1050KG |
|
Gross weight (kg) (approx.) |
930KG |
980KG |
1030KG |
1080KG |
|
product name |
Rapid temperature change test chamber 800L (non-linear) |
|||
|
product model |
MRT-FTC-800-5N |
MRT-FTC-800-10N |
MRT-FTC-800-15N |
MRT-FTC-800-20N |
|
Inner size (D*W*H) mm |
800*1000*1000 |
800*1000*1000 |
800*1000*1000 |
800*1000*1000 |
|
External Size (D*W*H) mm |
1300*1500*2000 |
1300*1500*2000 |
1300*1500*2000 |
1300*1500*2000 |
|
power (W) |
380V/30KW |
380V/36KW |
380V/45KW |
380V/52KW |
|
volume (L) |
800L |
|||
|
temperature range |
-70℃～+150℃ |
|||
|
Rapid temperature change range |
-40℃～+85℃/-55℃～+85℃ |
|||
|
Temperature rise and fall rate |
The average rate of temperature rise and fall was 5℃/min, 10℃/min, 15℃/min and 20℃/min |
|||
|
supply voltage |
AC380V±10% 50~60HZ
|
|||
|
Temperature accuracy |
0.1℃ |
|||
|
temperature fluctuation |
±0.5℃ |
|||
|
temperature uniformity |
±2℃ |
|||
|
Human-machine interface / controller |
7-inch color touch human-machine interface and high performance programmable controller. The controller has password protection function. Different operation permissions are obtained by entering different passwords to avoid shutdown due to human touch |
|||
|
Internal and external materials |
The outer box is cold rolled high quality steel plate with paint, and the surface is phosphating and spraying treatment. The inner box is SUS304# stainless steel 1.2mm |
|||
|
Insulating material |
It uses polyurethane foaming and ultra-fine glass fiber (thickness 100mm), which is environmentally friendly, safe, non-toxic and odorless |
|||
|
protector |
Reliable grounding protection device, leakage/break circuit protection, heater short circuit protection, blower motor overload protection, studio independent over temperature alarm, refrigeration machine over pressure protection, refrigeration machine overload protection, power under voltage, over voltage, phase loss protection |
|||
|
controller |
Self-developed 7-inch touch screen "or Siemens and other brands |
|||
|
compression engine |
France "Taikang" and Germany "GEA blog" Germany "Biser" |
|||
|
data interface |
Standard RS485/RS232 or Ethernet port and other common data interfaces |
|||
|
Third main test certificate |
Configure SGS third-party test certificate |
|||
|
Net weight (kg) (approx.) |
750KG |
800KG |
850KG |
900KG |
|
Gross weight (kg) (approx.) |
780KG |
830KG |
880KG |
930KG |
