High Temperature Drug Stability Test Chamber
The drug stability test chamber is widely used in the evaluation of drug failure, which requires a long time of stable temperature, humidity and light environment. It is suitable for pharmaceutical enterprises to conduct accelerated test, long-term test, high humidity test and strong light irradiation test of drugs and new drugs, and is an ideal choice for pharmaceutical enterprises to conduct drug stability test.
Product Details

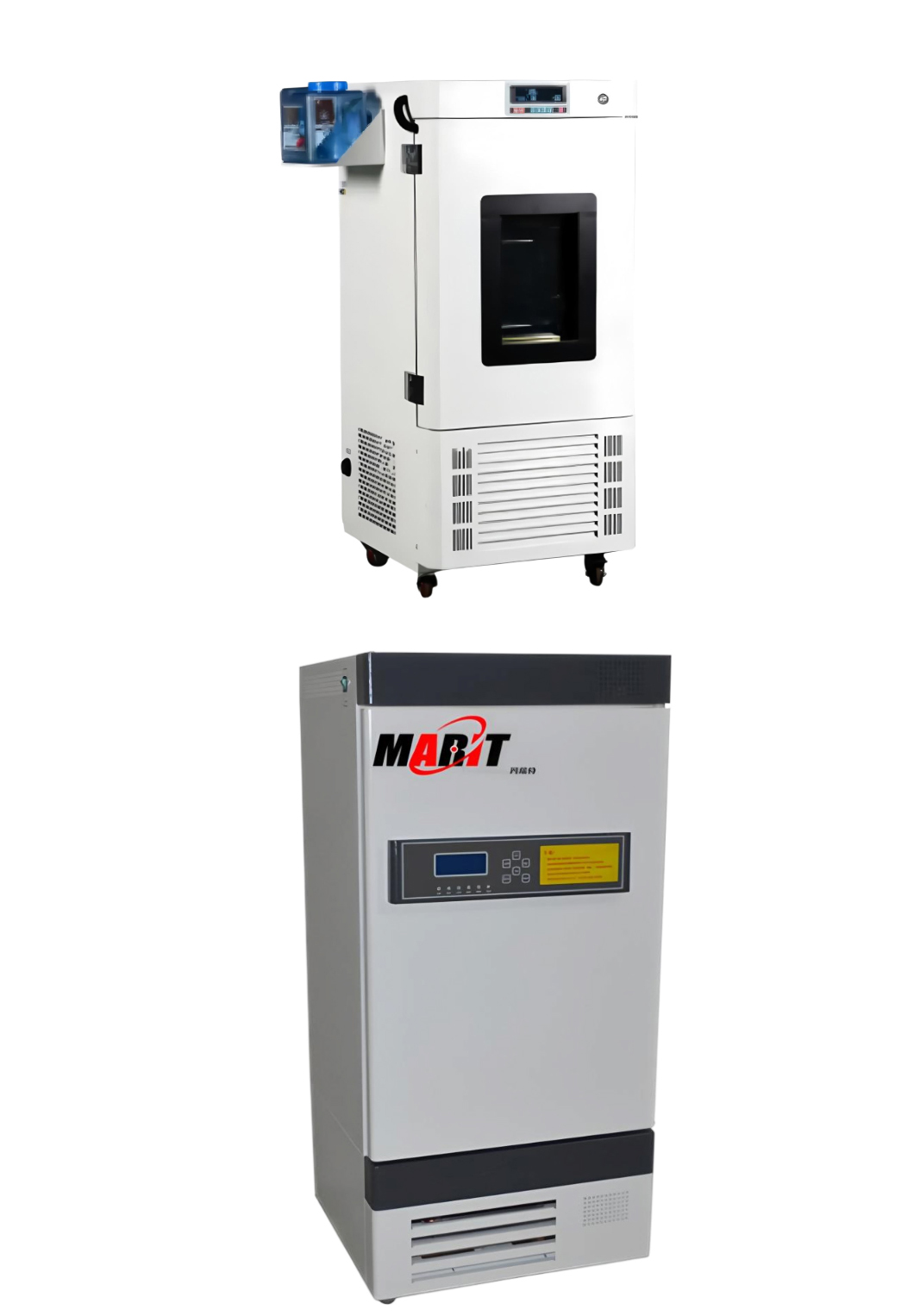

Drug stability test chamber
■ scope of application
The drug stability test chamber is widely used in the evaluation of drug failure, which requires a long time of stable temperature, humidity and light environment. It is suitable for pharmaceutical enterprises to conduct accelerated test, long-term test, high humidity test and strong light irradiation test of drugs and new drugs, and is an ideal choice for pharmaceutical enterprises to conduct drug stability test.
■ Product features
★ The streamlined luxury machine shape with aesthetic design concept, electrostatic spraying box body and double door structure
★ Made by mirror stainless steel TIG welding, the outer shell is made of high quality steel plate, with beautiful and novel shape. The inner lining of mirror stainless steel makes the instrument corrosion resistant.
★ The color touch screen displays the set parameters and measured parameters
★ Stable constant temperature function to avoid the evaporation and drying of samples
★ Built-in lighting system, ultraviolet sterilization system
★ Equipped with automatic water filling and humidifying box.
★ The new synthetic silicon sealing strip can be operated at high temperature for a long time, with a long service life and easy to replace.
★ The double-layer door structure is adopted, with a tempered glass door inside, which can effectively prevent the temperature fluctuation when opening the door to observe the sample.
★ The hot air circulation system is composed of a fan that can operate continuously at high temperature and an appropriate air duct to improve the uniform temperature in the working room.
★ The load bracket in the box can be adjusted freely
★ There is a 50mm test hole on the left side of the box
■ technical parameter
|
product name |
Drug stability test chamber |
|||||||||
|
product model |
LHH-80 |
LHH-150 |
LHH-250 |
LHH-350 |
LHH-450 |
LHH-600 |
LHH-800 |
LHH-1400 |
||
|
Inner tank size (mm) |
350*400*500 |
400*500*750 |
500*550*900 |
580*600*1100 |
680*600*1100 |
680*800*1100 |
800*800*1300 |
1000*1000*1400 |
||
|
outline dimension (mm) |
540*540*1070 |
640*640*1360 |
690*690*1550 |
770*740*1630 |
870*740*1730 |
870*940*1730 |
1000*1250*1930 |
1200*1450*2030 |
||
|
power (W) |
500 |
600 |
800 |
900 |
1000 |
1200 |
1500 |
2000 |
||
|
volume (L) |
70 |
150 |
250 |
350 |
450 |
600 |
800 |
1400 |
||
|
supply voltage |
AC220V±10% 50HZ~60HZ |
|||||||||
|
temperature range |
0~65℃ |
|||||||||
|
temperature resolution |
0.1℃ |
|||||||||
|
temperature fluctuation |
±0.5℃ |
|||||||||
|
temperature uniformity |
± 1℃ (at 37℃) |
|||||||||
|
Humidity range |
40~95%RH |
|||||||||
|
Humidity error |
±5%RH |
|||||||||
|
Time range |
Each segment is 0 to 9,999 hours |
|||||||||
|
control method |
PID color touch screen control |
|||||||||
|
Temperature and humidity control method |
balanced type |
|||||||||
|
printer |
Standard punch printer |
|||||||||
|
Cooling method |
Two sets of independent compressors are automatically switched |
|||||||||
|
Load carrier (block) |
2 |
3 |
4 |
|||||||
|
apolegamy |
Printer, RS485 interface, mobile phone remote control and other ancillary functions are optional |
|||||||||
