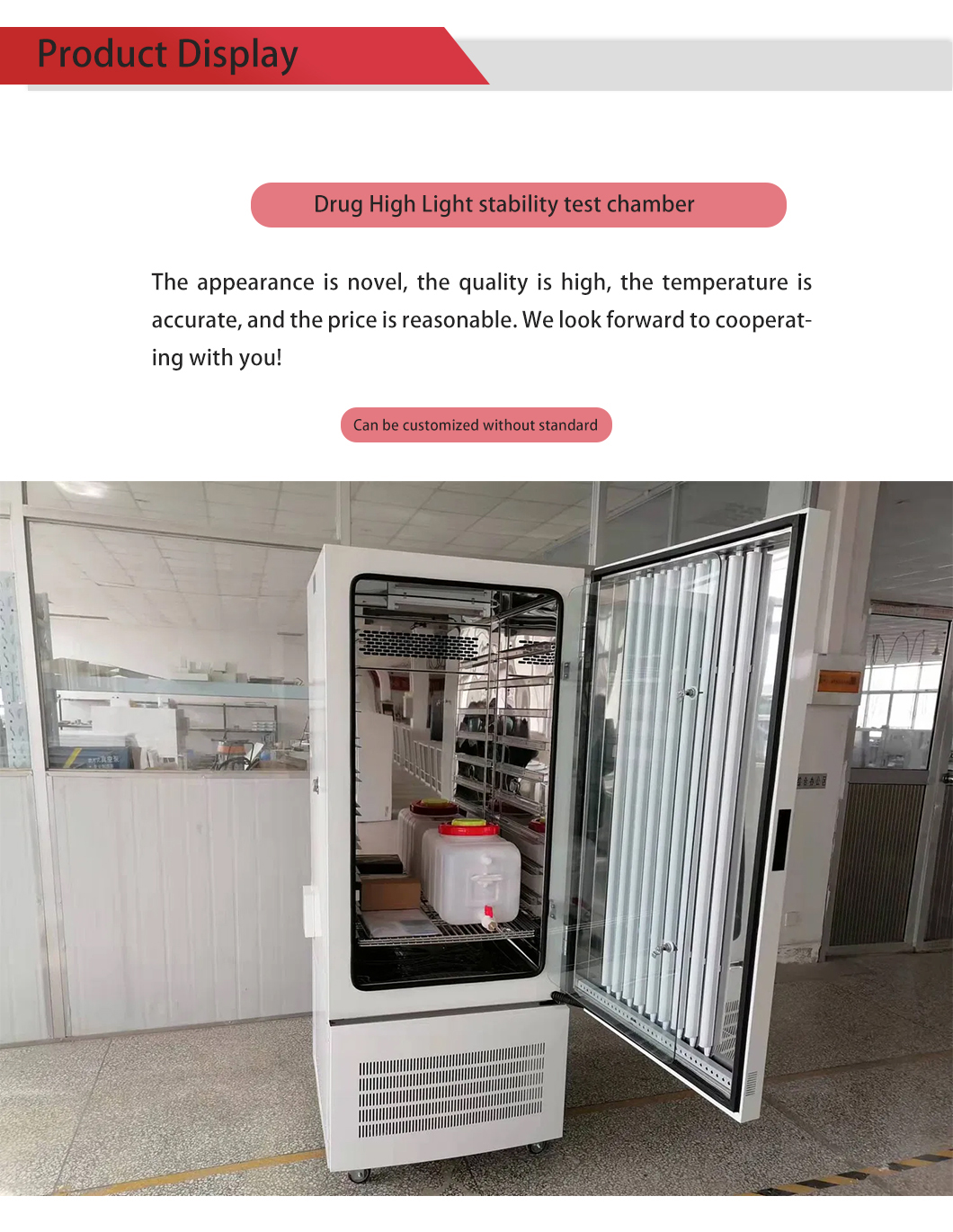

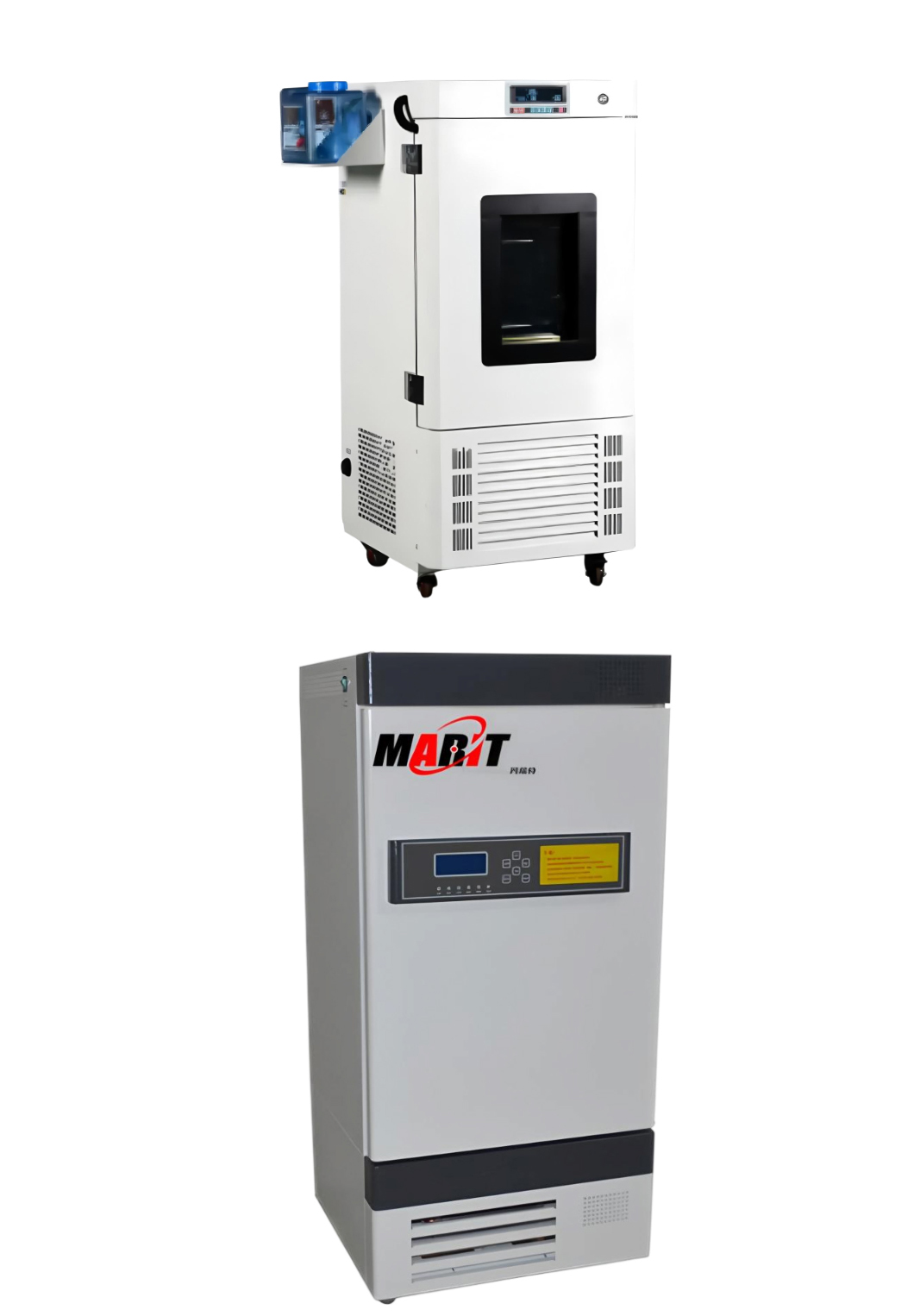

Comprehensive Biobase Medicine Drug Stability Test Chamber

Comprehensive drug stability test chamber is widely used in drug failure evaluation, which requires a long time of stable temperature, humidity environment and light environment. It is suitable for pharmaceutical enterprises to conduct accelerated test, long-term test, high humidity test and strong light irradiation test of drugs and new drugs. It is an ideal choice for pharmaceutical enterprises to conduct drug stability test.

Product Details

Comprehensive stability test chamber for drugs

scope of application

Comprehensive drug stability test chamber is widely used in drug failure evaluation, which requires a long time of stable temperature, humidity environment and light environment. It is suitable for pharmaceutical enterprises to conduct accelerated test, long-term test, high humidity test and strong light irradiation test of drugs and new drugs. It is an ideal choice for pharmaceutical enterprises to conduct drug stability test.

Product features

The streamlined luxury machine shape with aesthetic design concept, electrostatic spraying box body and double door structure

Made by mirror stainless steel TIG welding, the outer shell is made of high quality steel plate, with beautiful and novel shape. The inner lining of mirror stainless steel makes the instrument corrosion resistant.

The color touch screen displays the set parameters and measured parameters

Stable constant temperature function to avoid the evaporation and drying of samples

Built-in lighting system, ultraviolet sterilization system

Equipped with automatic water filling and humidification box.

New synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, has a long service life and is easy to replace.

The double-layer door structure is adopted, with a tempered glass door inside, which can effectively prevent the temperature fluctuation when opening the door to observe the sample.

The hot air circulation system is composed of a fan that can operate continuously at high temperature and an appropriate air duct to improve the uniform temperature in the working room.

The load bracket in the box can be adjusted freely

There is a 50mm test hole on the left side of the box

technical parameter

product name

Integrated pharmaceutical stability test chamber

product model

LHH-150HP

LHH-250HP

LHH-450HP

LHH-600HP

LHH-800HP

LHH-1400HP

Inner tank size (mm)

400*500*750

500*550*900

680*600*1100

680*800*1100

800*800*1300

1000*1000*1400

outline dimension (mm)

640*640*1360

690*690*1550

870*740*1730

870*940*1730

1000*1250*1930

1200*1450*2030

power (W)

600

800

1000

1200

1500

2000

volume (L)

150

250

450

600

800

1400

supply voltage

AC220V±10%   50HZ~60HZ

temperature range

0~65

temperature resolution

0.1

temperature fluctuation

±0.5

temperature uniformity

± 1(at 37)

The range of illumination

0~15000LX ±500LX infinitely adjustable

photometer

liquid-crystal display

Humidity range

40~95%RH

Humidity error

±5%RH

Time range

Each segment is 0~9999 hours

control method

PID color touch screen control

Temperature and humidity control method

balanced type

printer

Standard punch printer

Cooling method

Two sets of independent compressors are automatically switched

Load carrier (block)

2

3

4

apolegamy

Printer, RS485 interface, mobile phone remote control and other ancillary functions are optional
