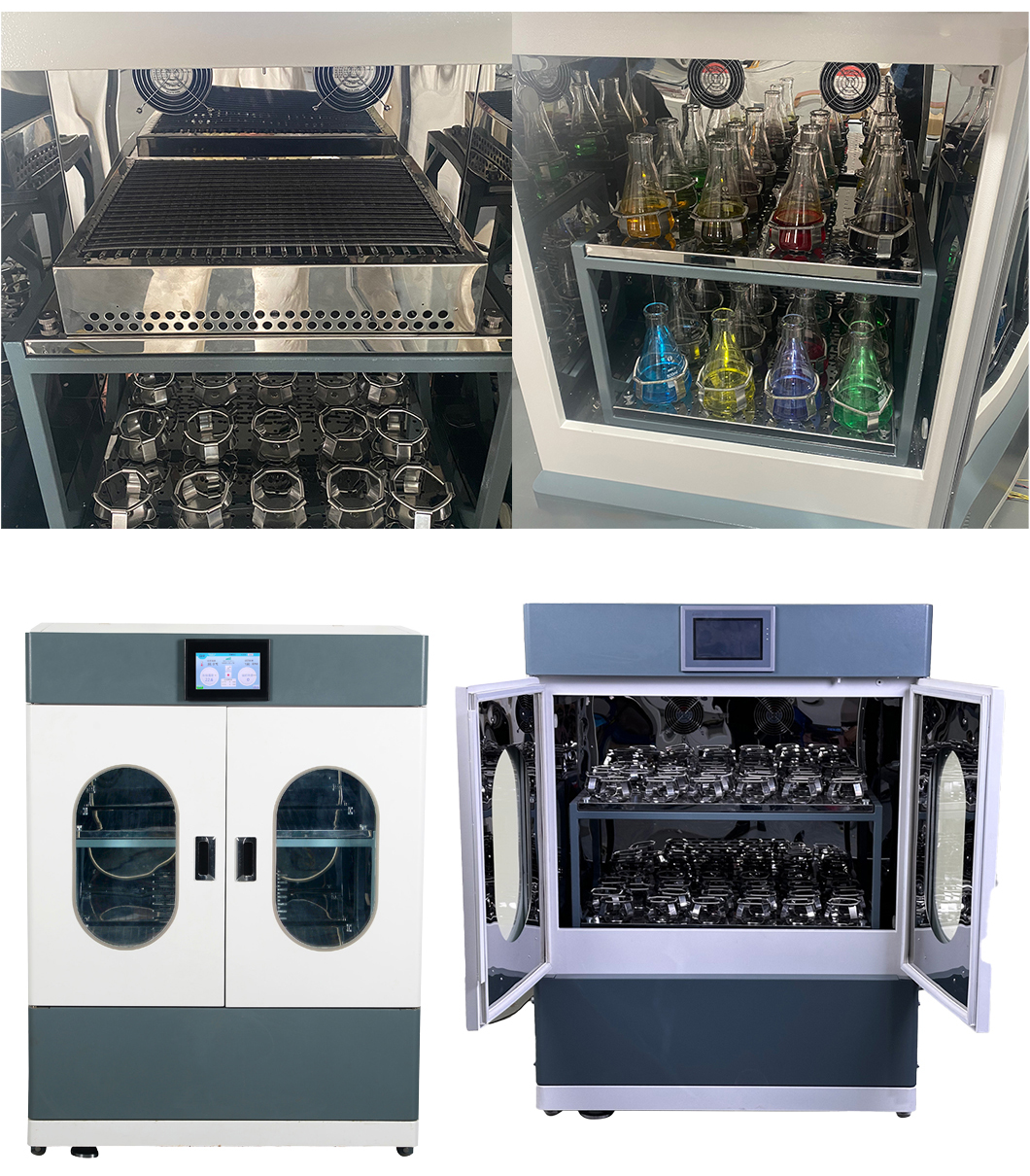

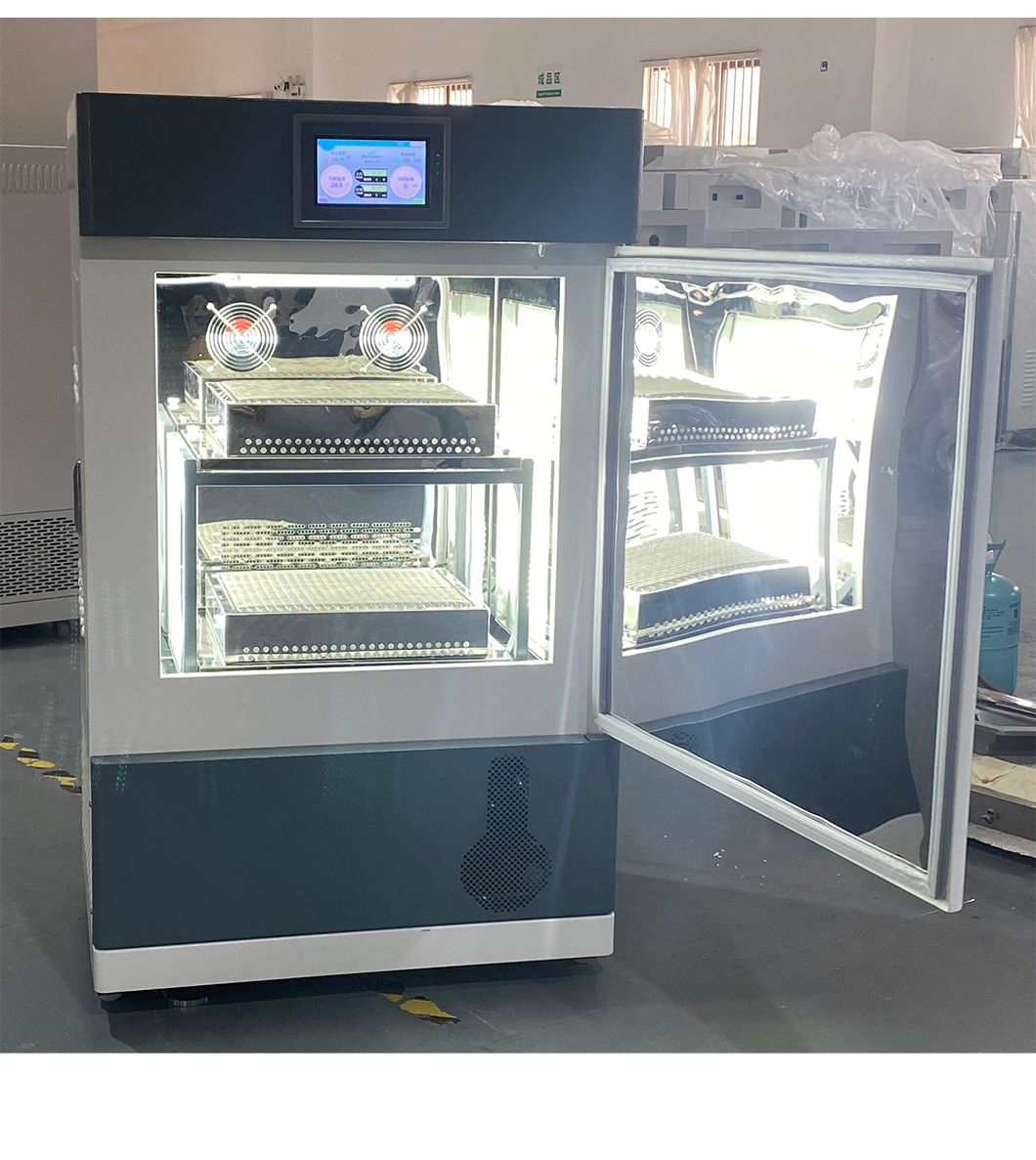

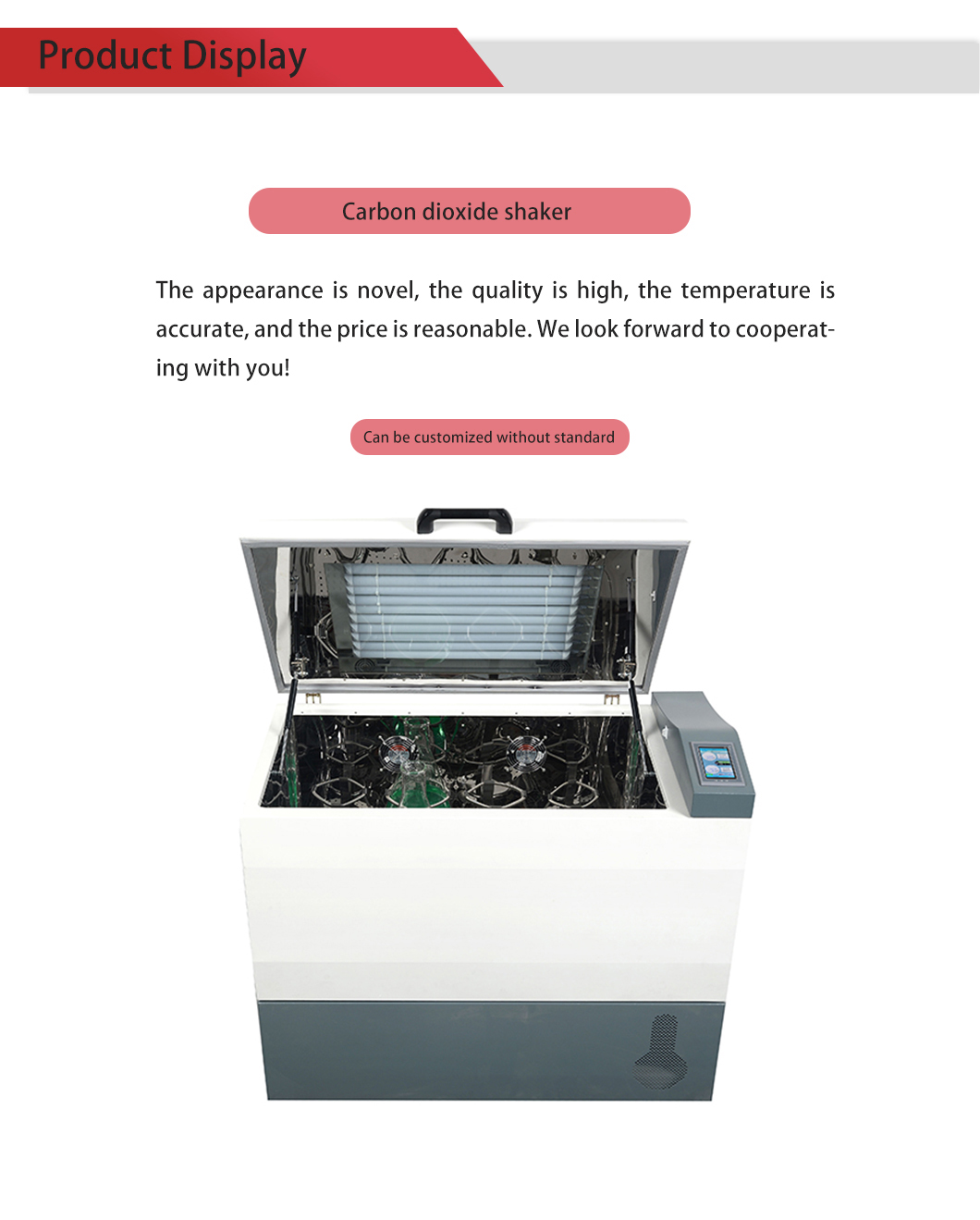

CARBON DIOXIDE CONSTANT TEMPERATURE SHAKER
Carbon dioxide constant temperature shaker products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has a wide and important application in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.
Product Details
CARBON DIOXIDE CONSTANT TEMPERATURE SHAKER
■ scope of application
Carbon dioxide constant temperature shaker products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has a wide and important application in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.
■ Product features
1. Personalized program design, can preset up to ten segments of programmable program, to achieve the pre-arranged timing operation of temperature, speed and time
2. It integrates constant temperature incubator and oscillator, saving space, occupying less area, having many functions and less investment.

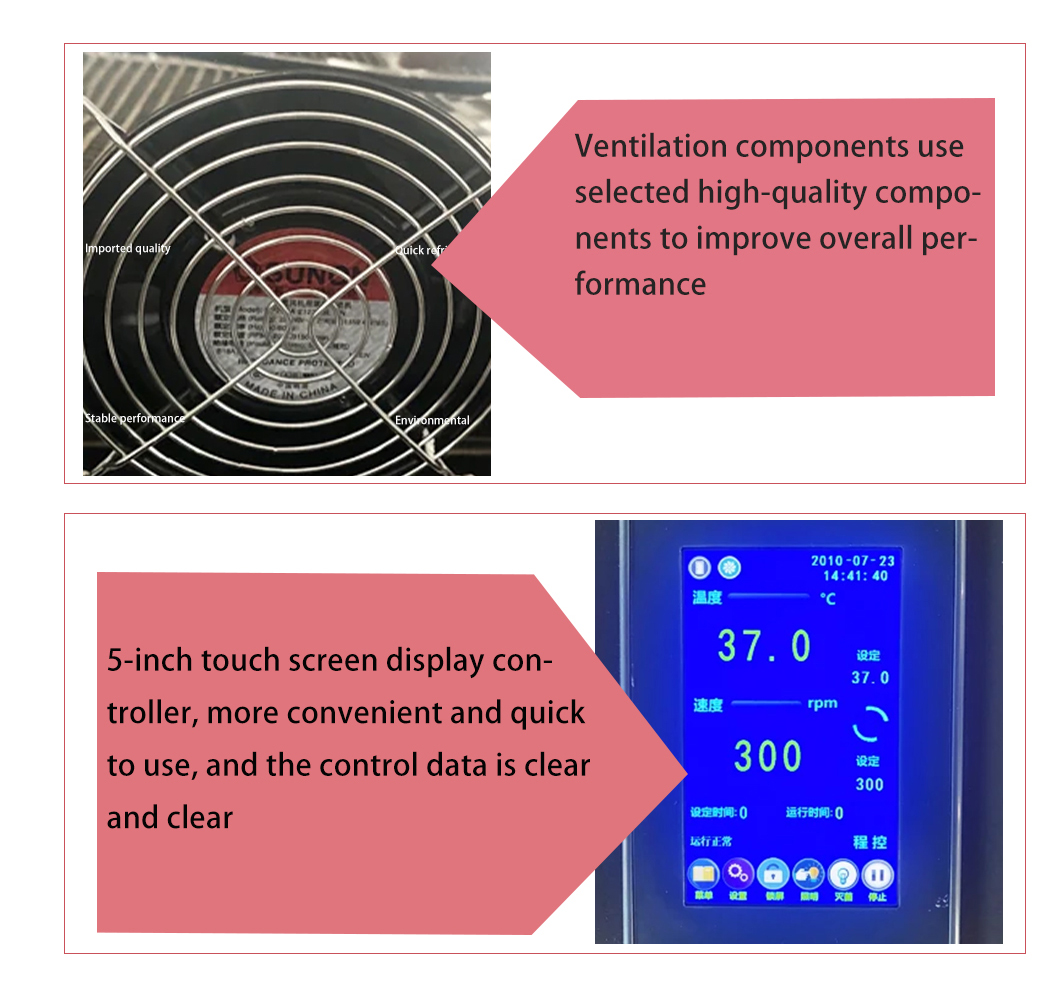

3. The inclined and humanized control panel with 5-inch HIGH-DEFINITION display screen provides better visual effect.
4. It has the function of memory of operating parameters to avoid tedious operation and password lock, so as to prevent human error.
5. The incoming call recovery function is provided, which is not affected by power interruption, and the equipment can automatically resume operation according to the original set program
6. DC motor does not need maintenance for long-term continuous operation
7. Silent design of the whole machine, electrostatic spraying box body, tempered glass super large visible window, luxurious and beautiful shape
8. Comprehensive safety protection design is considered to achieve triple safety protection for personnel, samples and equipment
9. Parameter memory, temperature representation correction and speed correction
10. AC induction long life motor design, wide speed control, constant torque, constant speed, no carbon brush, maintenance free

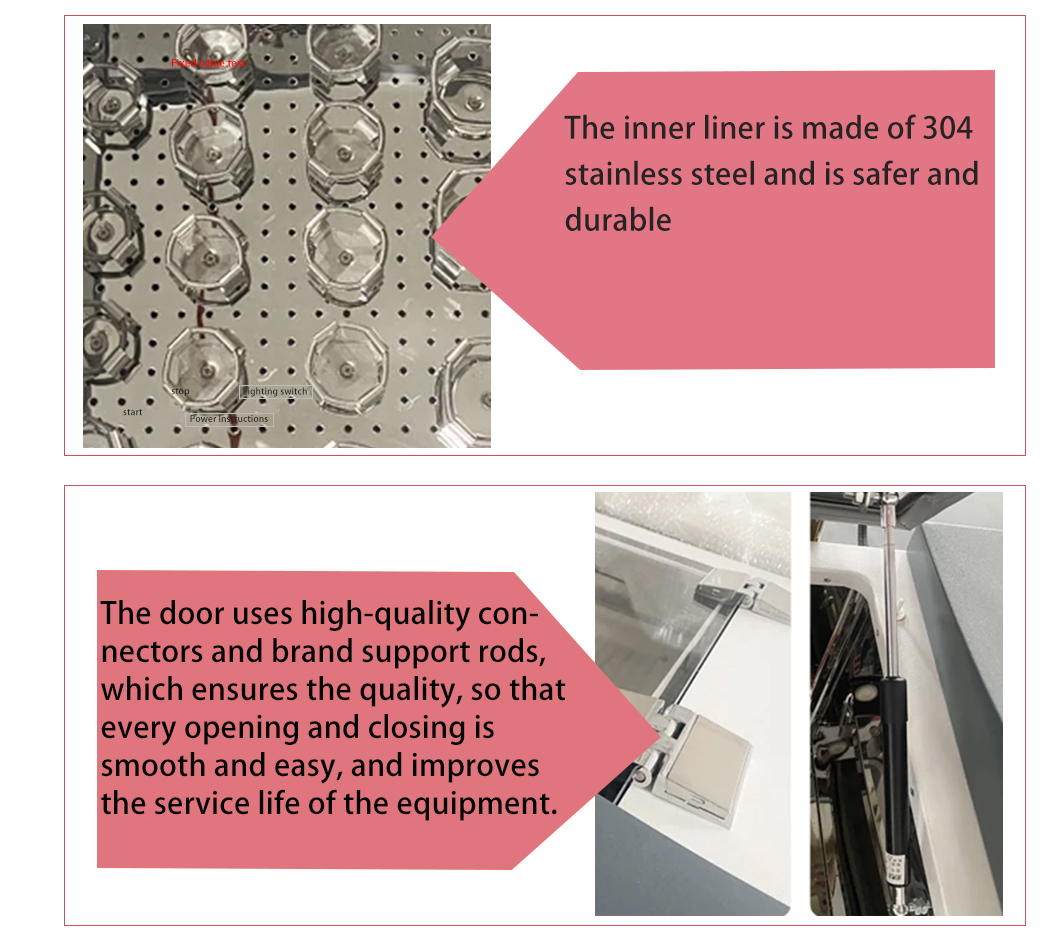

11. Mirror stainless steel lining, stainless steel electro-polished tray, spring, flask clamp
12. Flexible and convenient, a variety of detachable pallet accessories
13. Standard WeChat mini program to realize real-time monitoring and real-time alarm for equipment failure.
■ technical parameter
|
product name |
Constant temperature shaker with carbon dioxide |
|
|
product model |
TS-2102CO2 (double layer) |
TS-211CO2 (horizontal) |
|
Inner size (D*W*H) mm |
530*880*660mm(308L) |
570*980*500mm(280L) |
|
External size(D*W*H) mm |
950*700*1260mm |
740*1260*1000mm |
|
gyro-frequency |
30-300rpm |
30-300rpm |
|
Pallet size |
740*460mm |
920*510mm |
|
interiorinput power |
750W |
950W |
|
standard layout |
250ml*35 and 500ml*24 |
2000ml x 12 vials |
|
max. cap |
250ml*70 or 500ml*48 or 1L*24 |
250ml*36 or 500ml*28 or 1L*18 or 2L*12 or 3L*8 or 5L*6 |
|
Temperature control range |
4～60℃ |
|
|
temperature resolution |
0.1℃ |
|
|
CO2 Temperature control range |
0～20% |
|
|
CO2 Recovery time |
Concentration value / 1.2min |
|
|
supply voltage |
AC220V 50HZ |
|
|
fluctuation |
±0.1℃ |
|
|
running accuracy |
±1rpm |
|
|
gyro-frequency |
30-300rpm |
|
|
Swing amplitude |
Φ26 |
|
|
The way of shaking |
Rotary |
|
|
operating ambient temperature |
5℃～40℃ |
|
|
Time range |
0~999 hours |
|
|
display mode |
A screen of liquid crystals displays |
|
|
net weight |
240KG |
183KG |
|
Number of pallets |
2 block |
|
|
apolegamy |
Printer, RS485 interface, mobile phone remote control and other ancillary functions. |
|
