Vertical Superposition Constant Temperature Shaker Laboratory Equipment

Stacked constant temperature shaker products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has a wide and important application in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.

Product Details

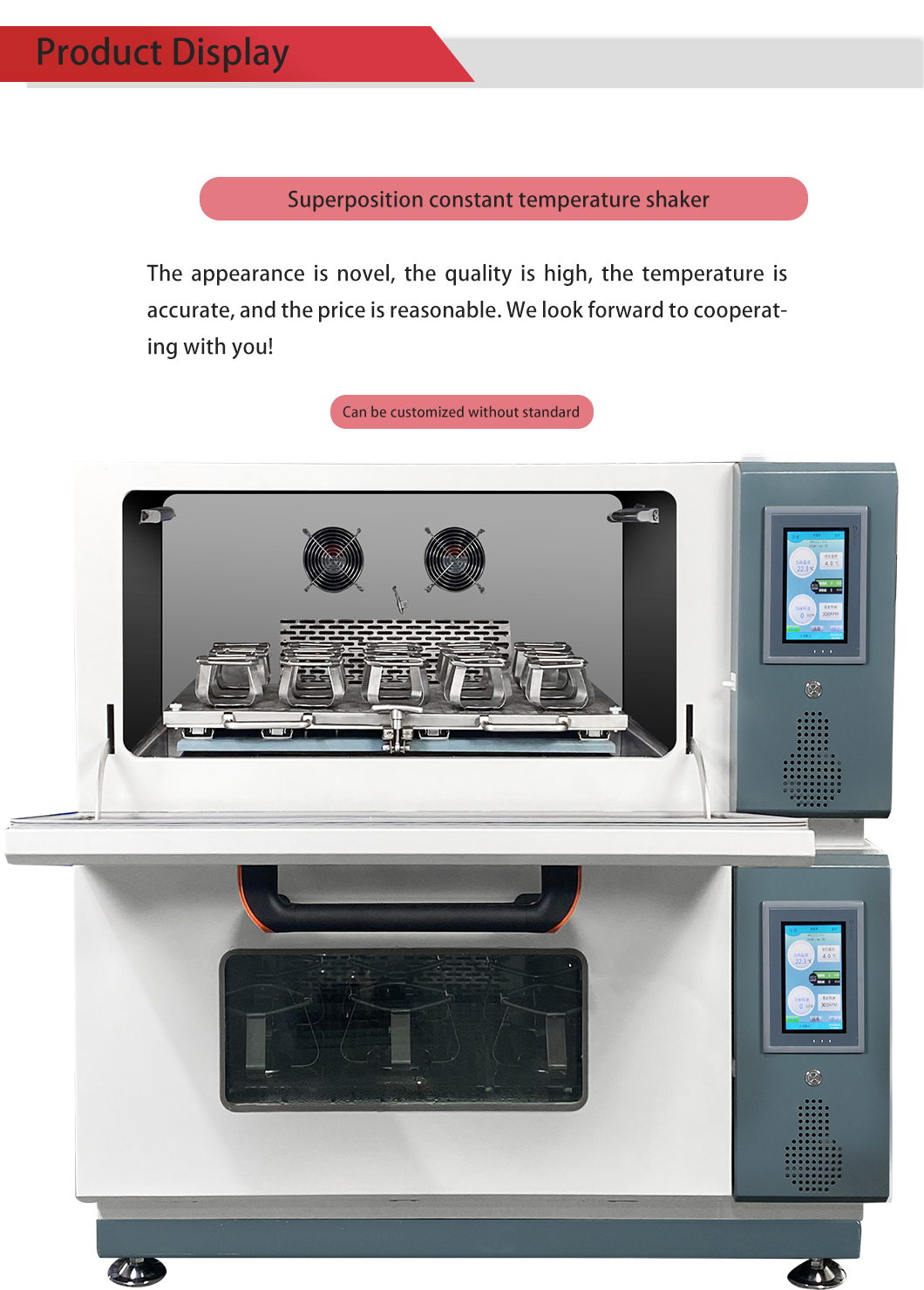

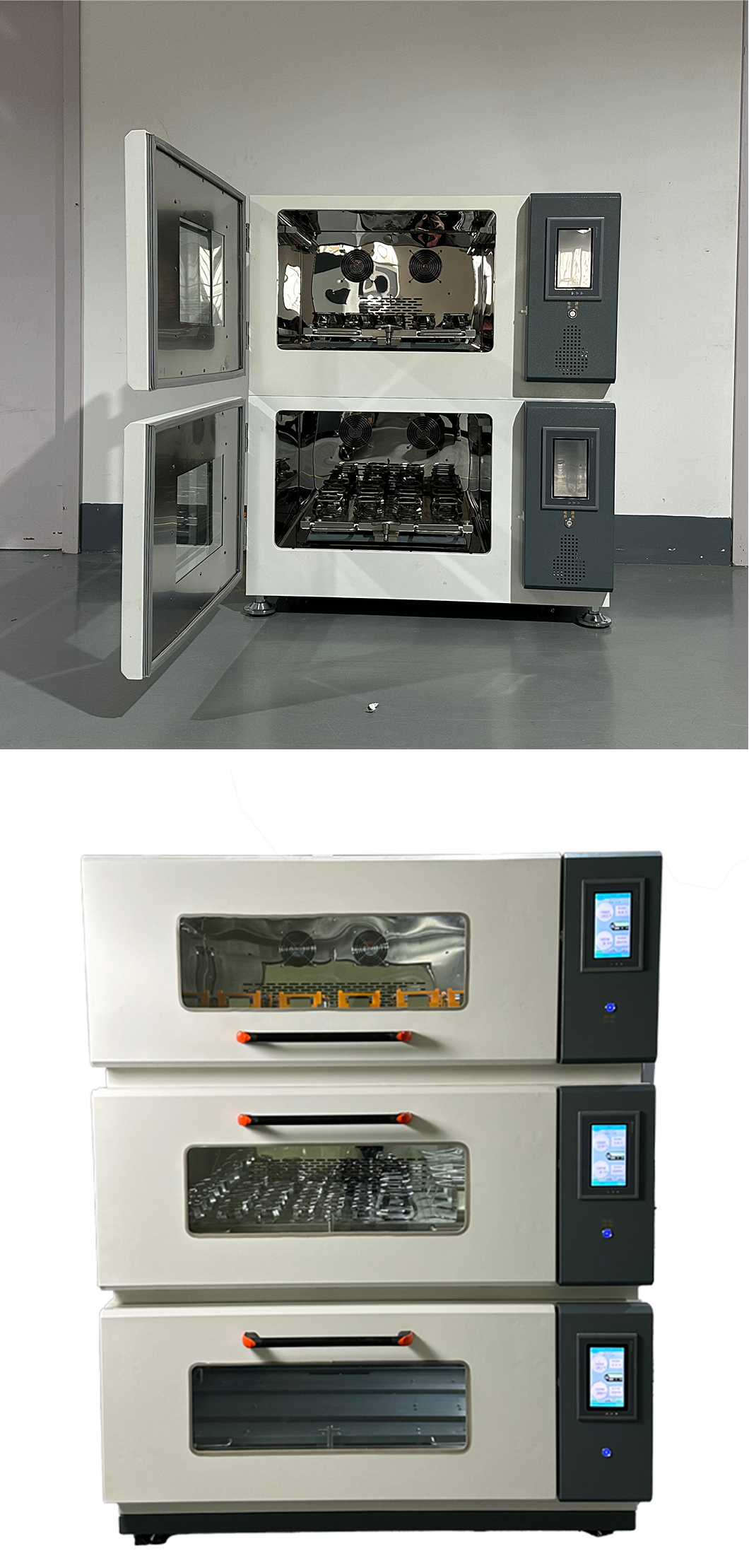

SUPERPOSITION constant temperature shaker

scope of application

Stacked constant temperature shaker products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has a wide and important application in medical, biological, molecular, pharmaceutical, food, environmental protection and other research and application fields.

Product features

1. Personalized program design, can preset up to ten segments of programmable program, to achieve temperature, speed and time pre-arranged timing operation

2. It integrates constant temperature incubator and oscillator, saves space, occupies less area, has many functions and requires less investment.

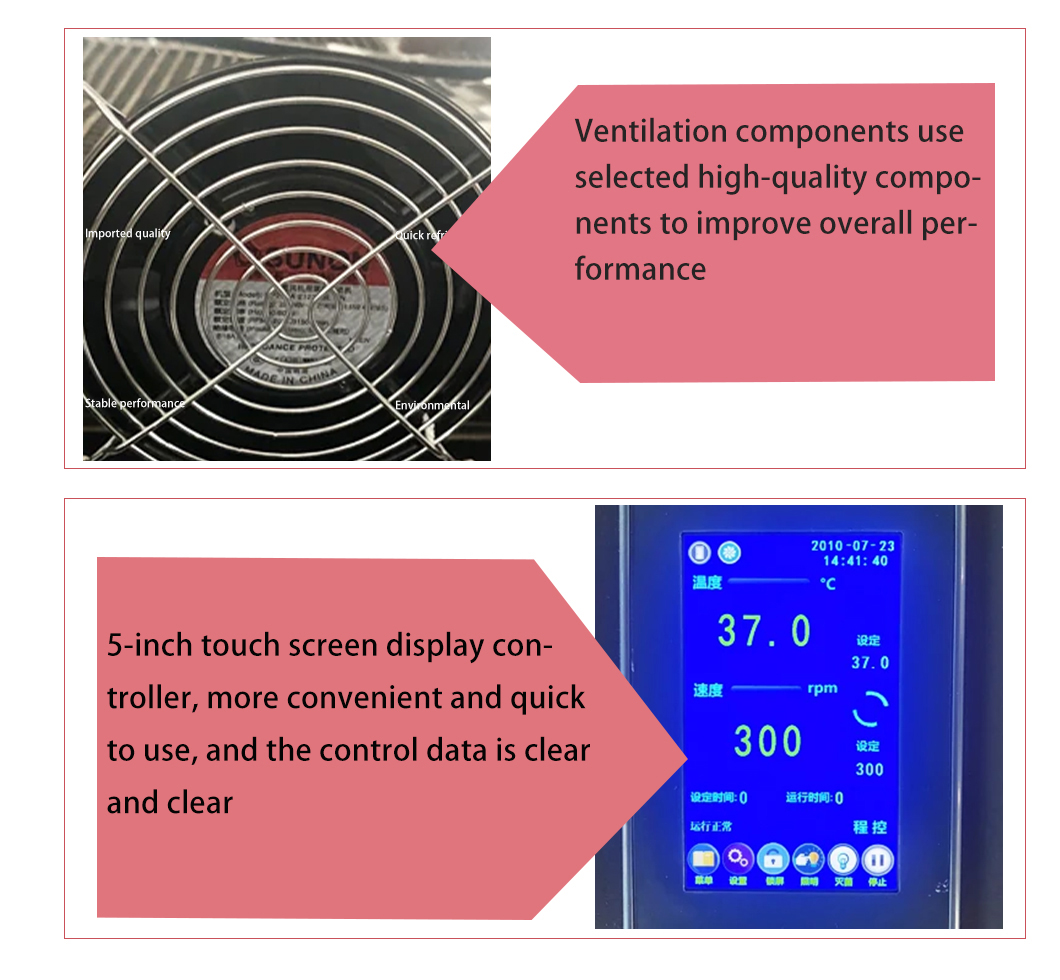

3. The inclined and humanized control panel with 5-inch HIGH-DEFINITION display screen provides better visual effect.

4. It has the function of memory of operating parameters to avoid tedious operation and password lock, so as to prevent human error.

5. The incoming call recovery function is provided, which is not affected by power interruption, and the equipment can automatically resume operation according to the original set program

6. DC motor does not need maintenance for long-term continuous operation

7. Silent design of the whole machine, electrostatic spraying box body, tempered glass super large viewing window, luxurious and beautiful shape

8. Comprehensive safety protection design is considered to achieve triple safety protection for personnel, samples and equipment

9. Parameter memory, temperature representation correction and speed correction

10. AC induction long life motor design, wide speed control, constant torque, constant speed, no carbon brush, maintenance free

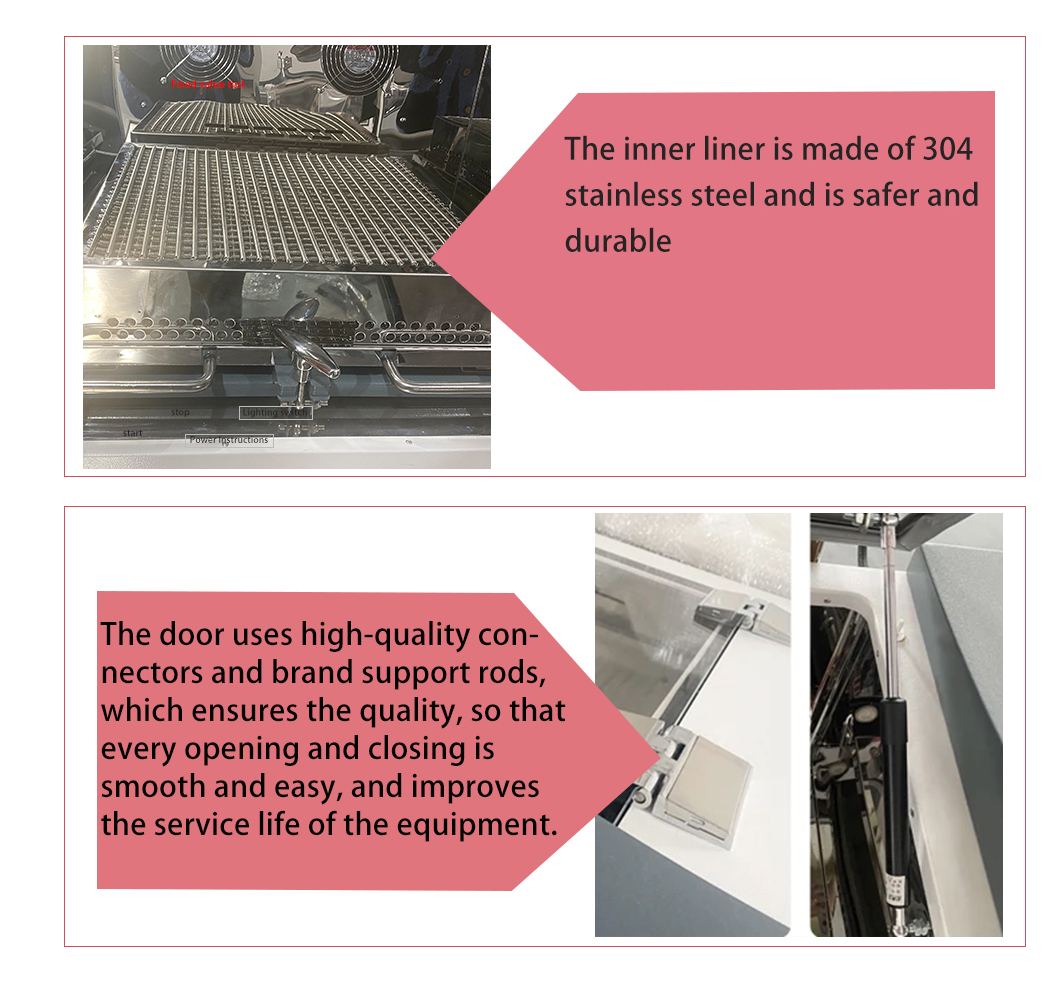

11. Mirror stainless steel lining, stainless steel electro-polished tray, spring, flask clamp

12. Flexible and convenient, a wide variety of detachable pallet accessories

13. Standardized wechat mini program to realize real-time monitoring and real-time alarm for equipment failure.

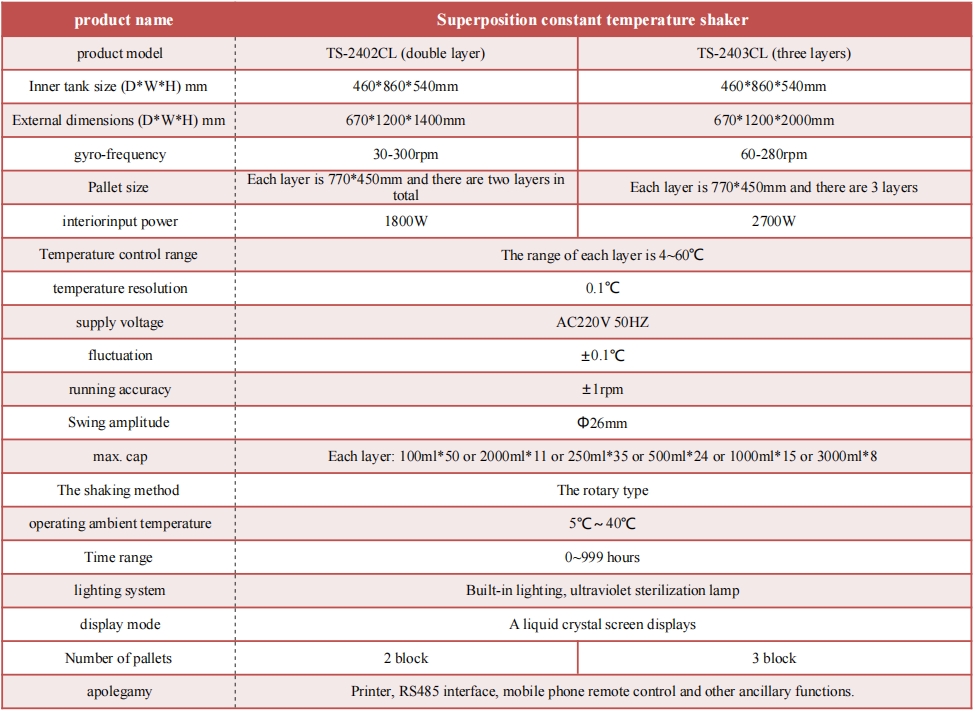

technical parameter

product name

Stacked constant temperature shaker

product model

TS-2402CL (double layer)

TS-2403CL (three layers)

Inner  size (D*W*H) mm

460*860*540mm

460*860*540mm

External size (D*W*H) mm

670*1200*1400mm

670*1200*2000mm

gyro-frequency

30-300rpm

60-280rpm

Pallet size

Each layer is 770*450mm and there are two layers

Each layer is 770*450mm and there are 3 layers

interiorinput power

1800W

2700W

Temperature control range

The range of each layer is 4~60

temperature resolution

0.1

supply voltage

AC220V 50HZ

fluctuation

±0.1

running accuracy

±1rpm

Swing amplitude

Φ26mm

max. cap

Each layer: 100ml*50 or 2000ml*11 or 250ml*35 or 500ml*24 or 1000ml*15 or 3000ml*8

The way of shaking

Rotary

operating ambient temperature

5℃~40

Time range

0~999 hours

lighting system

Each layer: built-in lighting lamp, ultraviolet sterilization lamp

display mode

A screen of liquid crystals displays

net weight

120KG

180KG

Number of pallets

2 block

3 block

apolegamy

Printer, RS485 interface, mobile phone remote control and other ancillary functions.
