laboratory High-precision vertical low-temperature constant temperature tank
It is widely used in colleges and universities, enterprises quality inspection and production departments of biology, chemical industry, chemistry, pharmaceutical, life science, physical property testing and other industries. It provides users with a field source controlled by cold and heat, with uniform and constant temperature, for constant temperature experiments or tests on experimental samples or products, and can also be used as A heat source or cold source for direct heating or cooling and auxiliary heating or cooling.
Product Details

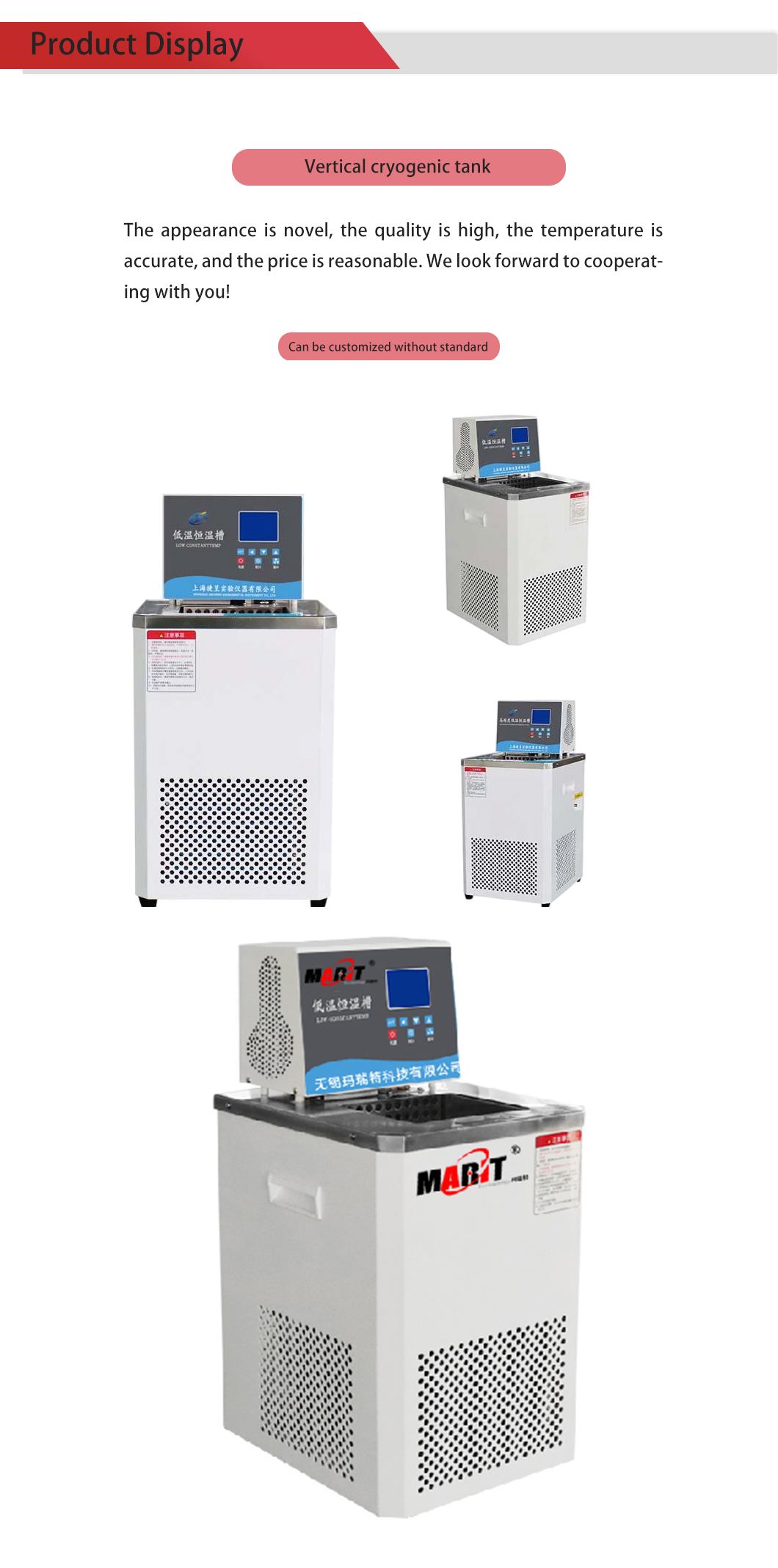

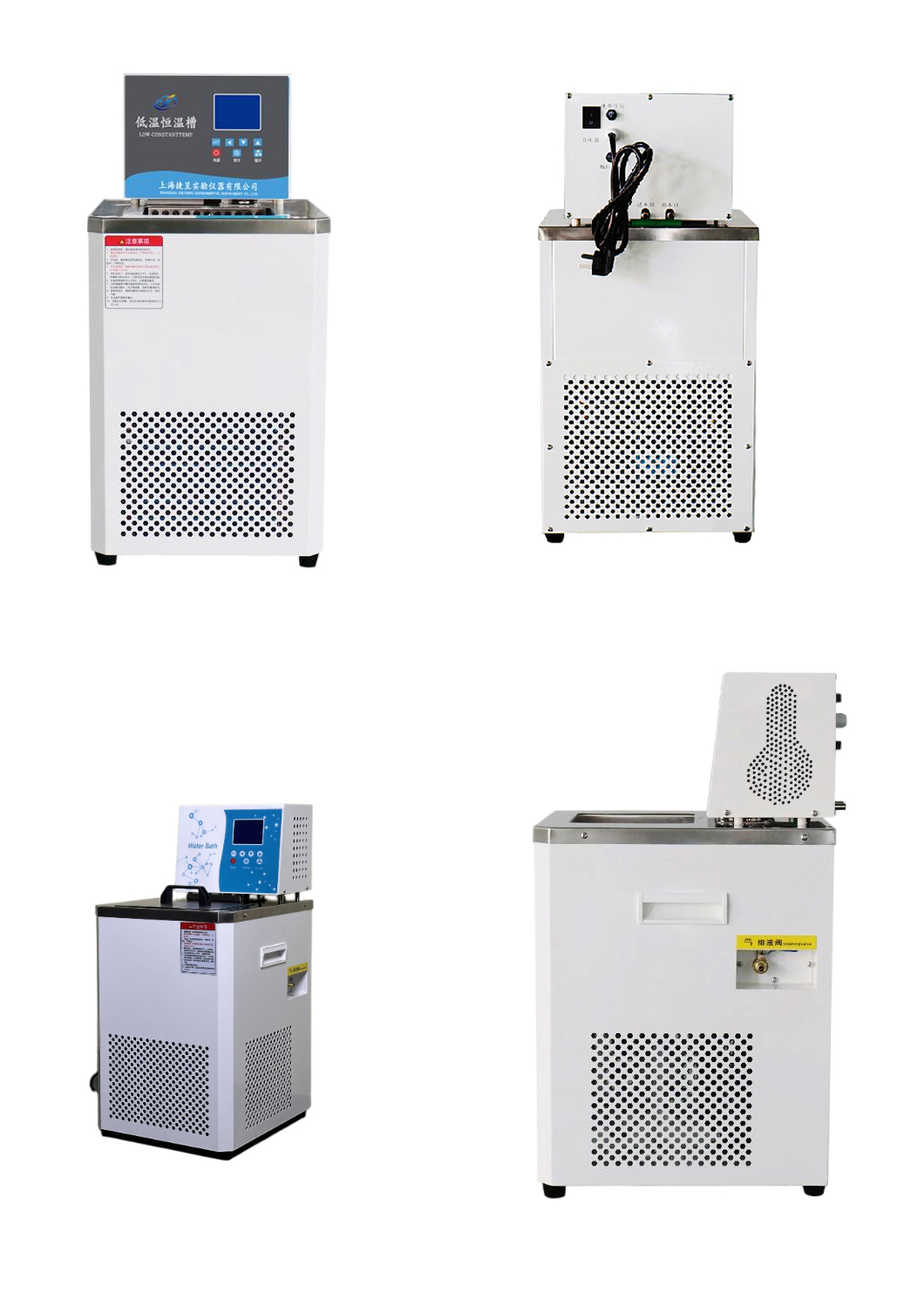

Vertical low temperature tank
VERTICAL CRYOGENIC TANK
■ scope of application
It is widely used in colleges and universities, enterprises quality inspection and production departments of biology, chemical industry, chemistry, pharmaceutical, life science, physical property testing and other industries. It provides users with a field source controlled by cold and heat, with uniform and constant temperature, for constant temperature experiments or tests on experimental samples or products, and can also be used as
A heat source or cold source for direct heating or cooling and auxiliary heating or cooling.
■ Product features

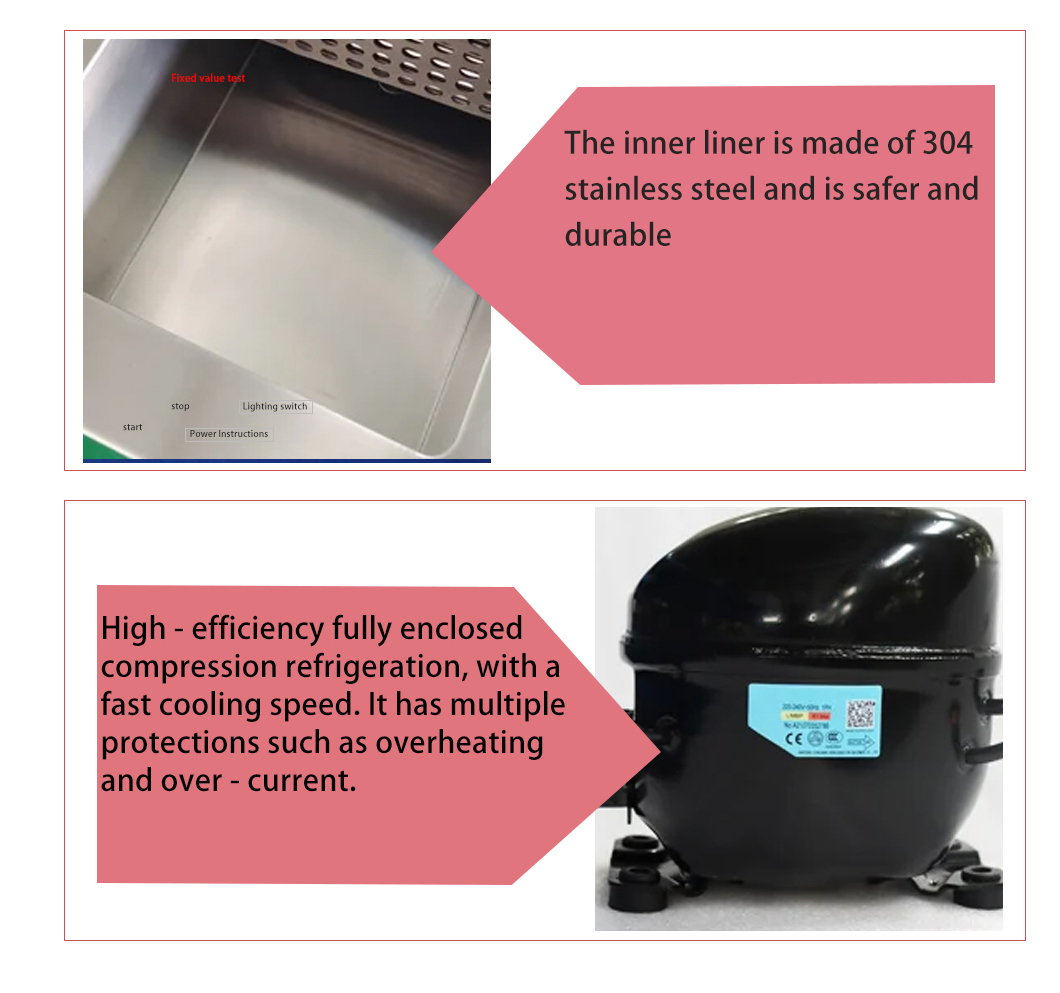

1. The inner tank is made of 304 stainless steel, and the outer tank is made of high quality steel plate. The shape is beautiful and novel.
2. Intelligent controller, good temperature control effect;

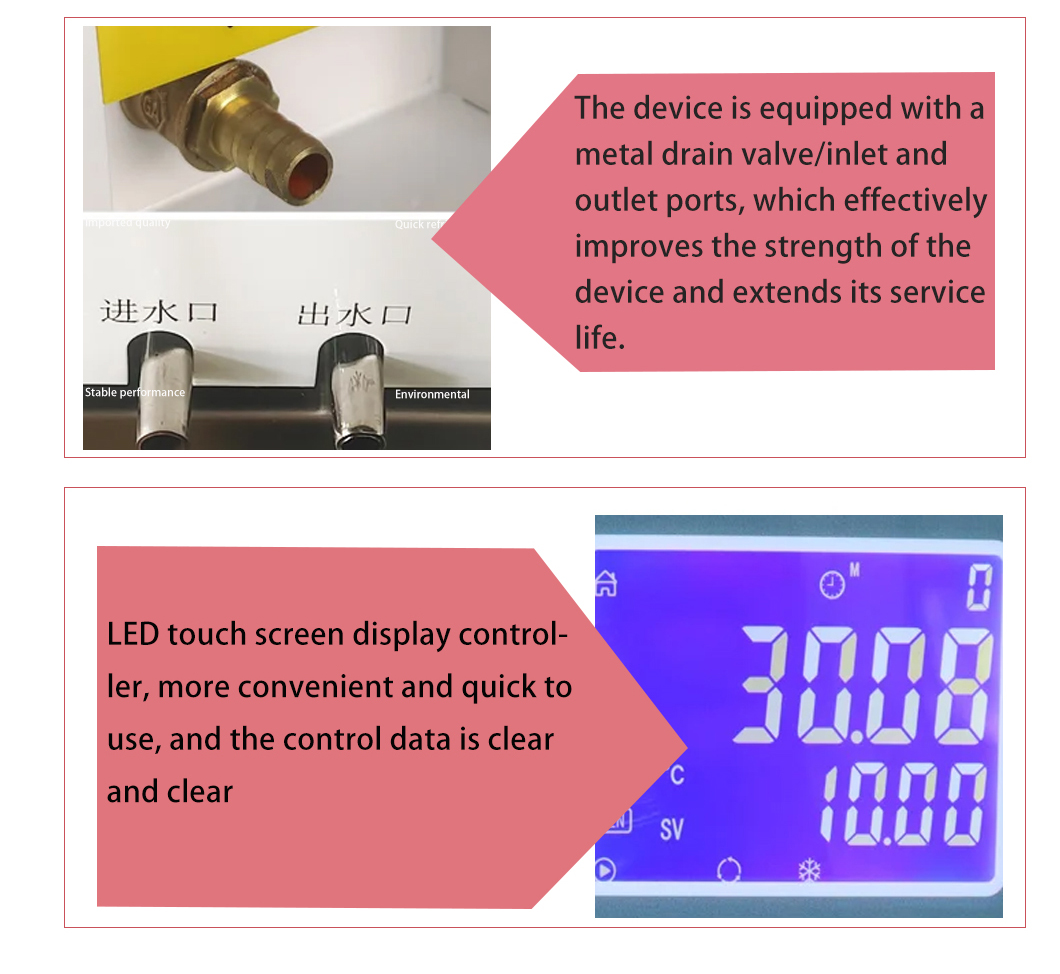

3. The LED large screen digital display shows temperature, time and other parameters
4. The products manufactured by honest enterprises are durable and the parameters are presented without reservation
5. After-sales service is guaranteed, with after-sales service all over the country
6. Provide video instruction to reduce the time for users to read the manual
7. High efficiency fully enclosed compressor refrigeration, fast cooling speed, with overheating overcurrent and other multiple protection.
8. It has the function of power failure recovery. After the external power supply is suddenly lost and then reconnected, the equipment can automatically resume operation according to the original set program
■ technical parameter
|
product name |
Vertical low temperature tank |
||||
|
product model |
MRT-DC-0506 |
MRT-DC-0510 |
MRT-DC-0515 |
MRT-DC-0520 |
MRT-DC-0530 |
|
Studio size (mm) |
200×160×180 |
250×200×200 |
300×250×200 |
300×280×250 |
400×300×250 |
|
Chamber depth (mm) |
180 |
200 |
200 |
250 |
250 |
|
power (W) |
800W |
1300 |
2100 |
2300 |
2500 |
|
Pump flow (L/min) |
4 |
4 |
8 |
8 |
12 |
|
volume (L) |
7.5L |
10L |
15L |
20L |
30L |
|
Slot size |
180*160mm |
180*160mm |
250*160mm |
250*160mm |
330*280mm |
|
supply voltage |
AC220V 50HZ |
||||
|
Temperature control range |
-5℃～100℃ |
||||
|
temperature resolution |
0.01℃ |
||||
|
temperature fluctuation |
±0.03℃ |
||||
|
operating ambient temperature |
5℃～40℃ |
||||
|
display mode |
A liquid crystal screen displays |
||||
|
Cooling method |
voluntarily |
||||
|
Compressor defrosting mode |
voluntarily |
||||
|
Time range |
1～9999 min |
||||
|
quality guarantee period |
One year |
||||
|
after-sale service |
Nationwide warranty service |
||||
|
product name |
Vertical low temperature tank |
||||
|
product model |
MRT-DC-1006 |
MRT-DC-1010 |
MRT-DC-1015 |
MRT-DC-1020 |
MRT-DC-1030 |
|
Studio size (mm) |
200×160×180 |
250×200×200 |
300×250×200 |
300×280×250 |
400×300×250 |
|
Slot depth (mm) |
180 |
200 |
200 |
250 |
250 |
|
power (W) |
900W |
1500W |
2200W |
2400W |
2600W |
|
Pump flow (L/min) |
4 |
4 |
8 |
8 |
12 |
|
volume (L) |
7.5L |
10L |
15L |
20L |
30L |
|
Opening size (mm) |
160×120 |
180×140 |
250×200 |
250×220 |
350×260 |
|
supply voltage |
AC220V 50HZ |
||||
|
Temperature control range |
-10～100℃ |
||||
|
temperature resolution |
0.01℃ |
||||
|
temperature fluctuation |
±0.03℃ |
||||
|
operating ambient temperature |
5℃～40℃ |
||||
|
display mode |
A screen of liquid crystals displays |
||||
|
Cooling method |
voluntarily |
||||
|
Compressor defrosting method |
voluntarily |
||||
|
Time range |
1～9999 min |
||||
|
quality guarantee period |
One year |
||||
|
after-sale service |
Nationwide warranty service |
||||
|
product name |
Vertical low temperature tank |
||||
|
product model |
MRT-DC-2006 |
MRT-DC-2010 |
MRT-DC-2015 |
MRT-DC-2020 |
MRT-DC-2030 |
|
Studio size (mm) |
200×160×180 |
250×200×200 |
300×250×200 |
300×280×250 |
400×300×250 |
|
Slot depth (mm) |
180 |
200 |
200 |
250 |
250 |
|
power (W) |
1000W |
1800W |
2300W |
2500W |
2700W |
|
Pump flow (L/min) |
4 |
4 |
8 |
8 |
12 |
|
volume (L) |
7.5L |
10L |
15L |
20L |
30L |
|
Opening size (mm) |
160×120 |
180×140 |
250×200 |
250×220 |
350×260 |
|
supply voltage |
AC220V 50HZ |
||||
|
Temperature control range |
-20～100℃ |
||||
|
temperature resolution |
0.01℃ |
||||
|
temperature fluctuation |
±0.03℃ |
||||
|
operating ambient temperature |
5℃～40℃ |
||||
|
display mode |
A liquid crystal screen displays |
||||
|
Cooling method |
voluntarily |
||||
|
Compressor defrosting mode |
voluntarily |
||||
|
Time range |
1～9999 min |
||||
|
quality guarantee period |
One year |
||||
|
after-sale service |
Nationwide warranty service |
||||
|
product name |
Vertical low temperature tank |
||||
|
product model |
MRT-DC-3006 |
MRT-DC-3010 |
MRT-DC-3015 |
MRT-DC-3020 |
MRT-DC-3030 |
|
Studio size (mm) |
200×160×180 |
250×200×200 |
300×250×200 |
300×280×250 |
400×300×250 |
|
Chamber depth (mm) |
180 |
200 |
200 |
250 |
250 |
|
power (W) |
1500W |
2000W |
2400W |
2600W |
2700W |
|
Pump flow (L/min) |
4 |
4 |
8 |
8 |
12 |
|
volume (L) |
7.5L |
10L |
15L |
20L |
30L |
|
Opening size (mm) |
160×120 |
180×140 |
250×200 |
250×220 |
350×260 |
|
supply voltage |
AC220V 50HZ |
||||
|
Temperature control range |
-30～100℃ |
||||
|
temperature resolution |
0.01℃ |
||||
|
temperature fluctuation |
±0.03℃ |
||||
|
operating ambient temperature |
5℃～40℃ |
||||
|
display mode |
A screen of liquid crystals displays |
||||
|
Cooling method |
voluntarily |
||||
|
Compressor defrosting mode |
voluntarily |
||||
|
Time range |
1～9999 min |
||||
|
quality guarantee period |
One year |
||||
|
after-sale service |
Nationwide warranty service |
||||
|
product name |
Vertical low temperature tank |
||||
|
product model |
MRT-DC-4006 |
MRT-DC-4010 |
MRT-DC-4015 |
MRT-DC-4020 |
MRT-DC-4030 |
|
Studio size (mm) |
200×160×180 |
250×200×200 |
300×250×200 |
300×280×250 |
400×300×250 |
|
Chamber depth (mm) |
180 |
200 |
200 |
250 |
250 |
|
power (W) |
2100W |
2100W |
2500W |
2700W |
3000W |
|
Pump flow (L/min) |
4 |
4 |
8 |
8 |
12 |
|
volume (L) |
7.5L |
10L |
15L |
20L |
30L |
|
Opening size (mm) |
160×120 |
180×140 |
250×200 |
250×220 |
350×260 |
|
supply voltage |
AC220V 50HZ |
||||
|
Temperature control range |
-40～100℃ |
||||
|
temperature resolution |
0.01℃ |
||||
|
temperature fluctuation |
±0.03℃ |
||||
|
operating ambient temperature |
5℃～40℃ |
||||
|
display mode |
A screen of liquid crystals displays |
||||
|
Cooling method |
voluntarily |
||||
|
Compressor defrosting mode |
voluntarily |
||||
|
Time range |
1～9999 min |
||||
|
quality guarantee period |
One year |
||||
|
after-sale service |
Nationwide warranty service |
||||
